3. One person holds the switch chassis and aligns the installation holes on the mounting brackets
with the cage nuts on the rack posts.
4. The other person uses M6 screws (user supplied) to attach the mounting brackets to the rack.

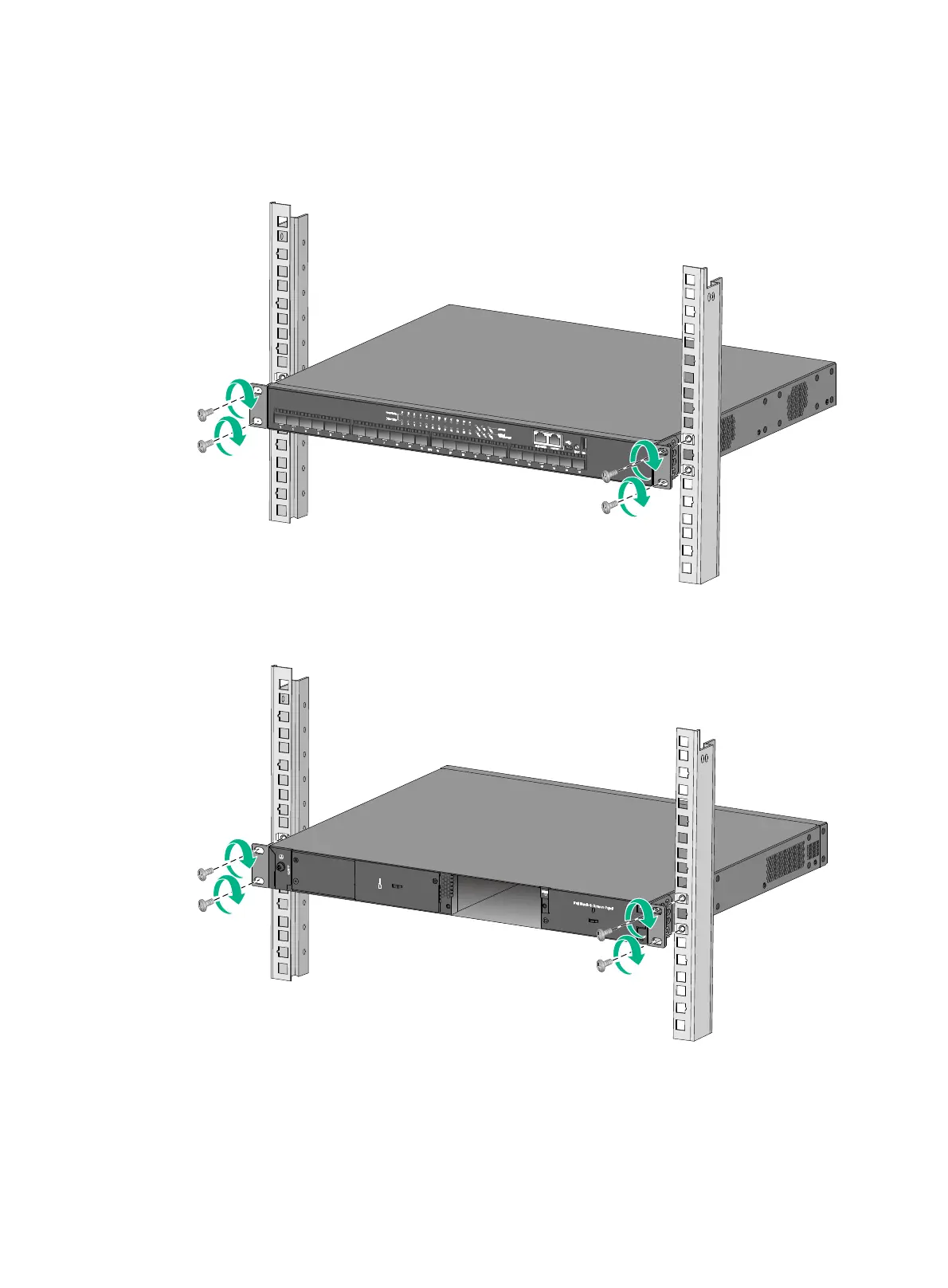

Figure 8 Mounting the switch in the rack (front mounting brackets near the port side)
Figure 9 Mounting the switch in the rack (front mounting brackets near the power
module side)
