S6520X-26XC-UPWR-SI

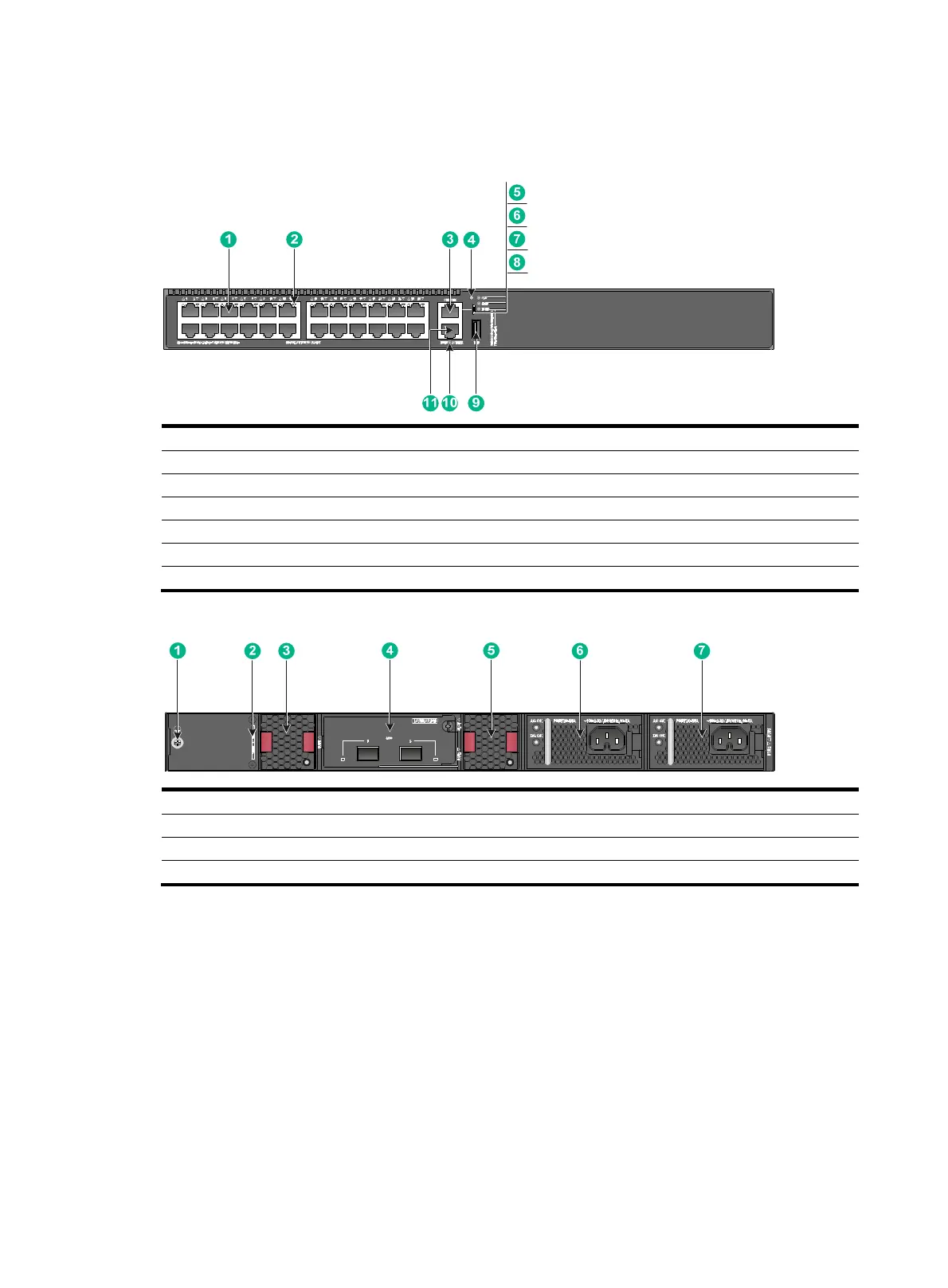

Figure 66 Front panel
(1) 10G/5G/2.5G/1000/100BASE-T autosensing Ethernet port
(2) 10G/5G/2.5G/1000/100BASE-T autosensing Ethernet port LED
(3) Console port (CONSOLE) (4) Mode button
(5) System status LED (SYS) (6) Expansion card status LED (SLOT)
(7) Mode LED (MODE) (8) Micro USB console port
(9) USB port (10) Management Ethernet port LED (LINK/ACT)
(11) Management Ethernet port
Figure 67 Rear panel
(1) Grounding screw (2) Serial label pull tab
(3) Fan tray 1 (FAN1) (4) Expansion card
(5) Fan tray 2 (FAN2) (6) Power module 1 (PWR1)
(7) Power module 2 (PWR2)
The ESN serial number and MAC address of the S6520X-26XC-UPWR-SI switch can be found on
the serial label pull tab.
An S6520X-26XC-UPWR-SI switch comes with power module slot 1 empty and power module slot 2
installed with a filler panel. You can install one or two power modules for the switch as required.
In Figure 67, two PSR720
-56A AC power modules are installed in the power module slots. For more
information about installing and removing a power module, see "Installing and removing a power
module."
The S6520X-26XC-UPWR-SI switch comes with the two fan tray slots empty. You must install two
fan trays of the same model for the switch. In Figure 67, two LSPM1F
ANSB fan trays are installed in
the fan tray slots. For information about installing and removing a fan tray, see "Installing and
removin
g a fan tray."
An S6520X-26XC-UPWR-SI switch comes with a filler panel in the expansion slot. You can select an
expansion card for the switch as required. In Figure 67, an LSWM2
SP2PM interface card is installed
