S6520X-26MC-UPWR-SI

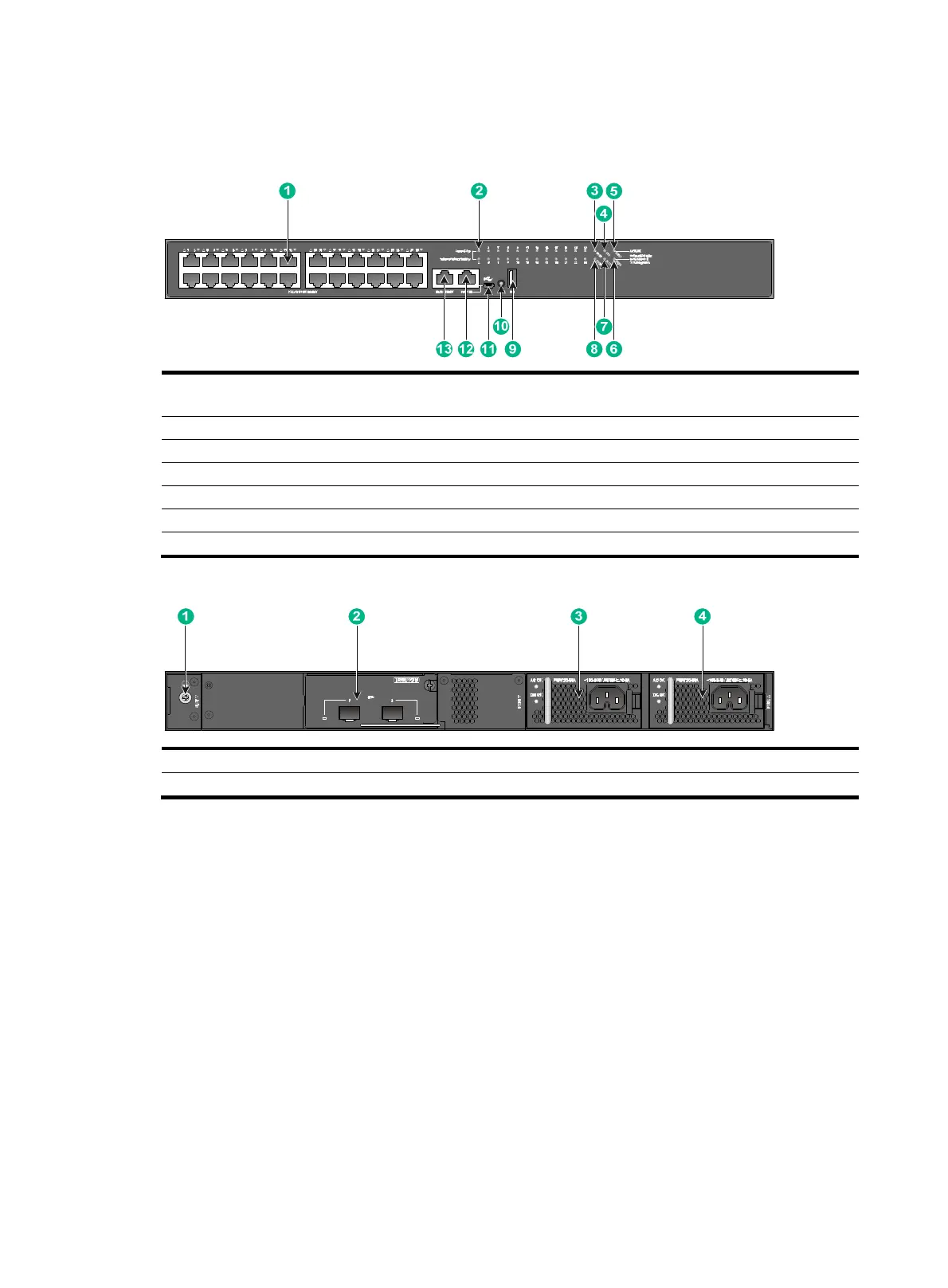

Figure 64 Front panel
(1) 5G/2.5G/1000/100BASE-T autosensing
Ethernet port
(2) 5G/2.5G/1000/100BASE-T autosensing Ethernet
port LED
(3) Power module 1 status LED (PWR1) (4) System status LED (SYS)
(5) Management Ethernet port LED (LINK/ACT) (6) Mode LED (MODE)
(7) Expansion card status LED (SLOT) (8) Power module 2 status LED (PWR2)
(9) USB port (10) Mode button
(11) Micro USB console port (12) Console port (CONSOLE)
(13) Management Ethernet port
Figure 65 Rear panel
(1) Grounding screw (2) Expansion card
(3) Power module 1 (PWR1) (4) Power module 2 (PWR2)
An S6520X-26MC-UPWR-SI switch comes with power module slot 1 empty and power module slot 2
installed with a filler panel. You can install one or two power modules for the switch as required.
In Figure 65, two PSR720
-56A AC power modules are installed in the power module slots. For more
information about installing and removing a power module, see "Installing and removing a power
module."
An S6520X
-26MC-UPWR-SI switch comes with a filler panel in the expansion slot. You can select an
expansion card for the switch as required. In Figure 65, an LSWM2
SP2PM interface card is installed
in the expansion slot. For more information about installing and removing an expansion card, see
"Installing and removing an expansion card."
