4. Align the fan tray with the fan tray slot. Holding the fan tray handles, slide the fan tray into the
slot along the guide rails. Make sure the fan tray is fully seated in the slot and has a firm contact
with the backplane.
To prevent damage to the fan tray or the connectors in the chassis, insert the fan tray gently. If
you encounter a hard resistance while inserting the fan tray, pull out the fan tray and insert it
again.
Figure 19 Installing a fan tray
Removing a fan tray
WARNING!
• Do not touch bare wires or terminals on the fan trays.
• Do not place the fan tray in moist place. Prevent liquid from entering the fan tray.
• Contact H3C Support if the circuits or components on a fan tray are faulty. Do not remove any fan
tray components.
To remove a fan tray:
1. Wear an ESD wrist strap. Make sure the strap makes good skin contact and is reliably
grounded.
2. Holding the fan tray handles, pull the fan tray slowly out of the slot along the guide rails.
3. Put the removed fan tray in an antistatic bag.

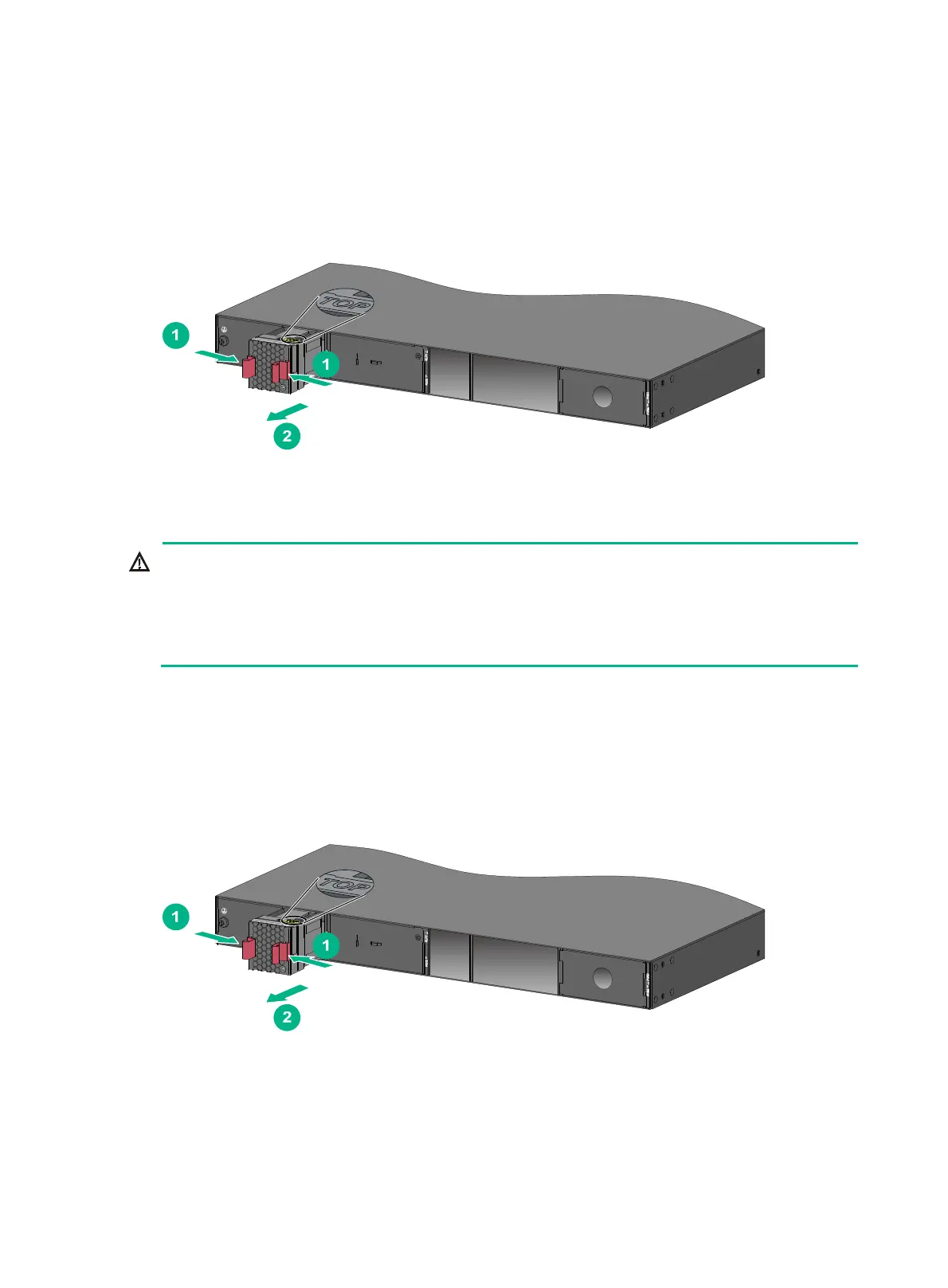

Figure 20 Removing a fan tray
