96-8000 181
G CODES
June 1999

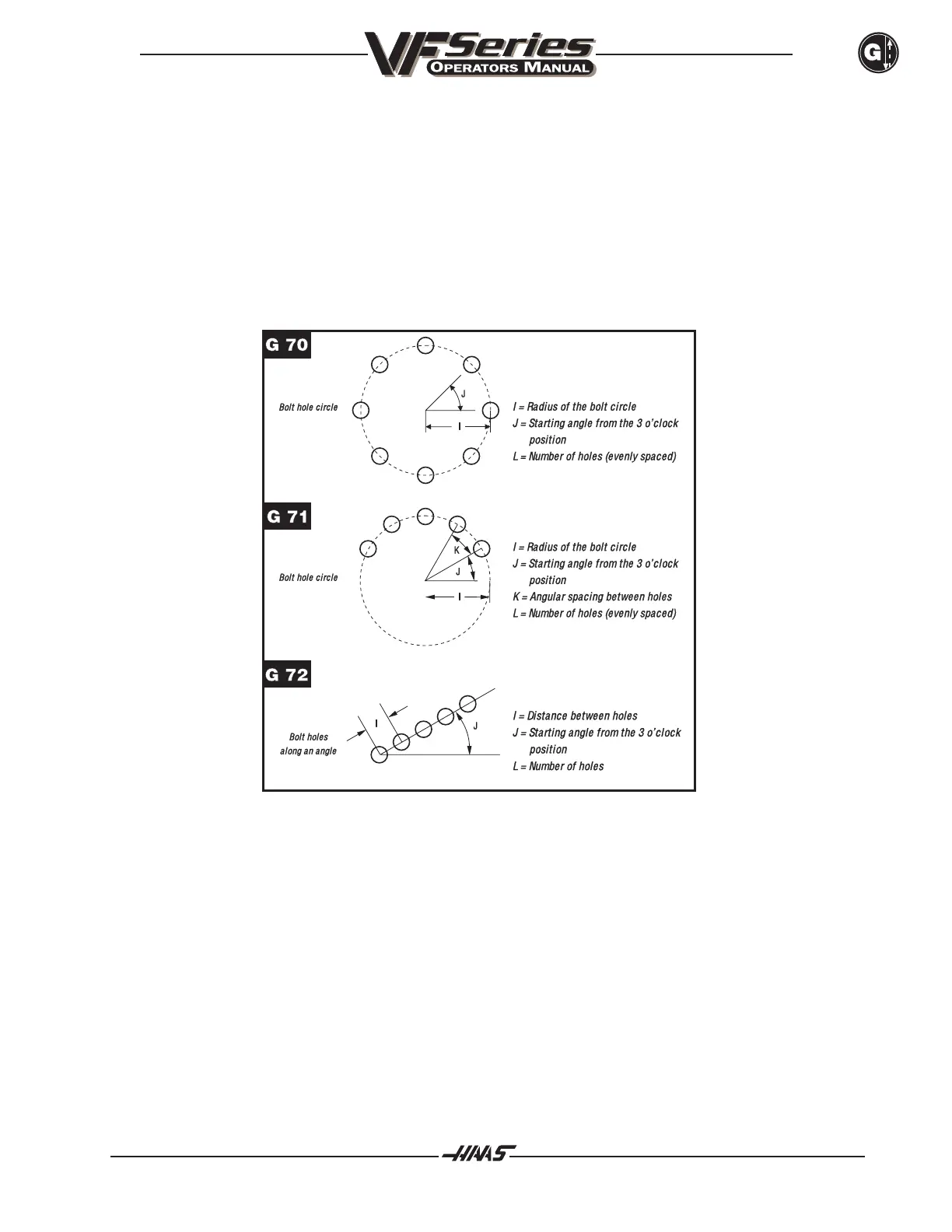

G72 Bolt Holes Along An Angle Group 00
I Distance between holes (Minus will reverse direction)
J Angle of line (Degrees CCW from horizontal)
L Number of holes
This G code drills L holes in a straight line at the specified angle. It operates similarly to G70 and G71. G72
belongs to Group zero and thus is non-modal. For a G72 to work correctly, a canned cycle should be active so
that at each of the positions, some type of drill or tap cycle is performed.
