194
G CODES
96-8000
June 1999

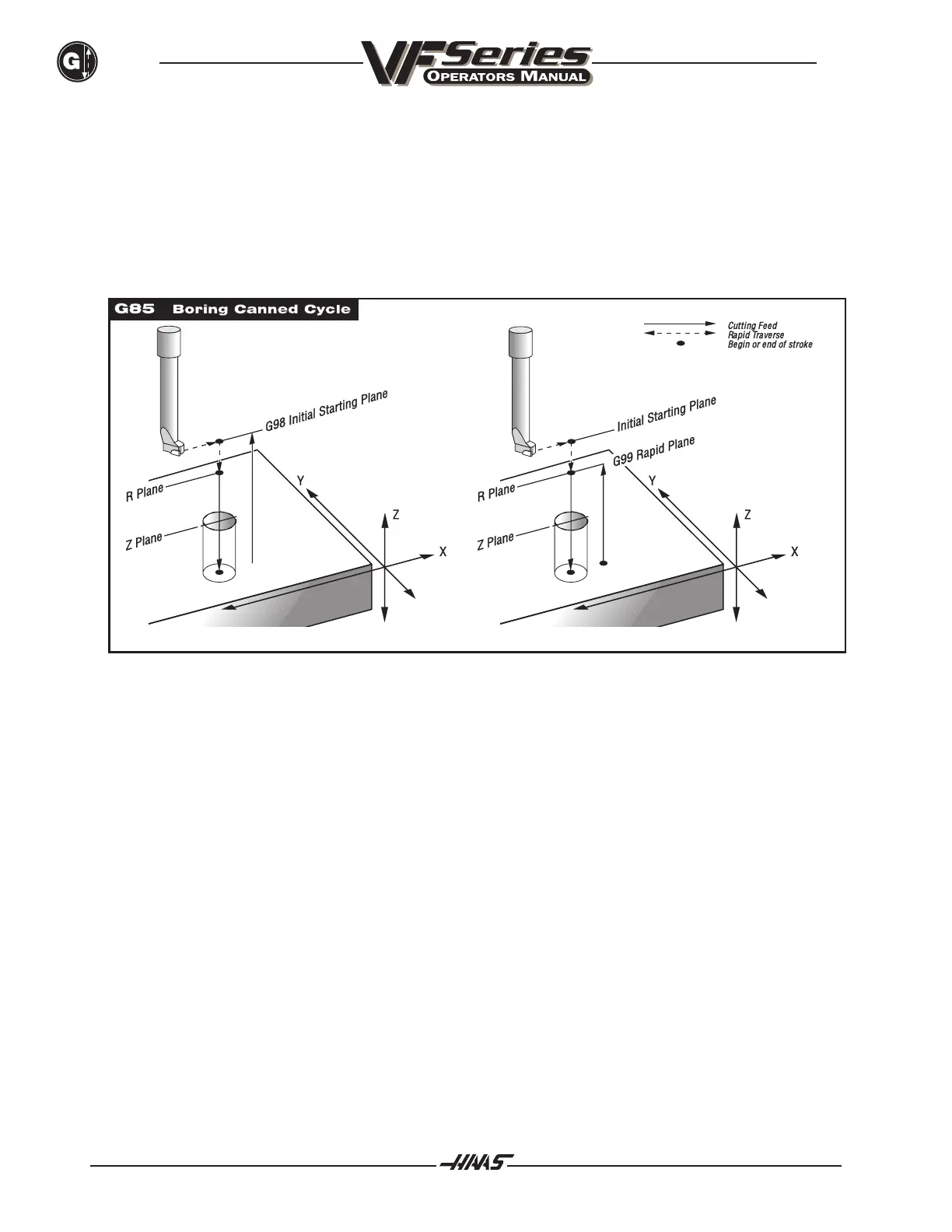

G85
Boring Canned Cycle
Group
09
F
Feed Rate in inches (mm) per minute
L
Number of repeats
R
Position of the R plane
X
Optional X-axis motion command
Y
Optional Y
-axis motion command
Z
Position of bottom of hole
This
G
code is modal in that once activated, every motion of
X
and/or
Y
will cause this canned cycle to be
executed until it is canceled or another canned cycle is selected.
193
195
