96-8000
205

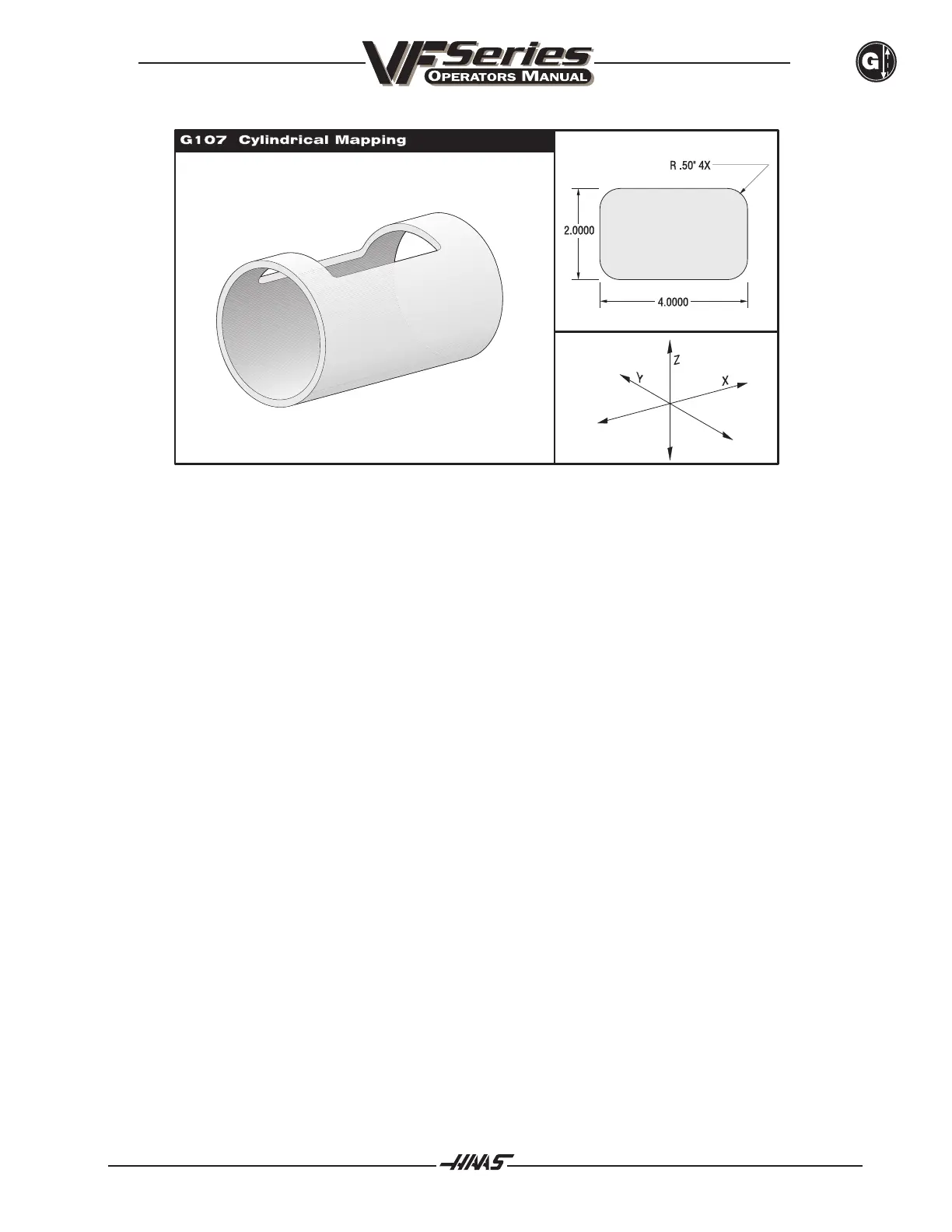

G CODES
June 1999
SAMPLE P
ART PROGRAM
%
O0079 (G107 TEST)
G00 G40 G49 G80 G90
G28 G91
A0
G90
G00 G54 X1.75 Y0 S5000 M03
G107
A0
Y0 R2. (IF NO R OR Q V
ALUE, MACHINE WILL USE V
ALUE IN SETTING 34)
G43 H01 Z0.25
G01 Z-0.25 F25.
G41 D01 X2. Y0.5
G03 X1.5 Y1. R0.5
G01 X-1.5
G03 X-2. Y0.5 R0.5
G01 Y
-0.5
G03 X-1.5
Y
-1. R0.5
G01 X1.5
G03 X2. Y
-0.5 R0.5
G01 Y0.
G40 X1.75
G00 Z0.25
M09
M05
G91 G28 Z0.
G28 Y0.
G90
G107
M30
%
204
206
