PROGRAMMING EXAMPLES
23396-8000
June 1999
DO THE FOLLOWING EXERCISE FOR PRACTICE.

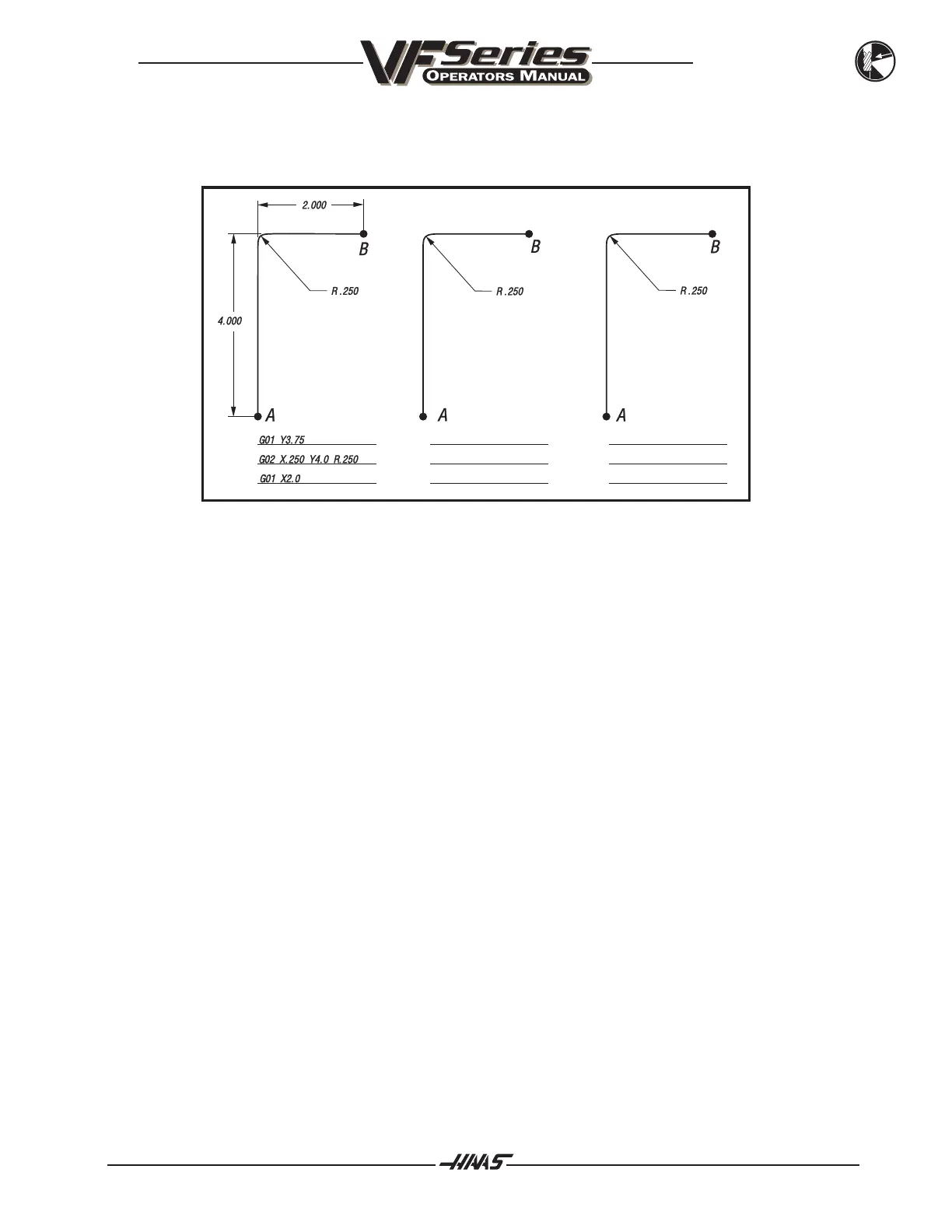

WRITE THE CODE NECESSARY TO GET FROM POINT A TO POINT B
FIRST MOVE: Overall dimension and subtract the given radius.
SECOND MOVE: Add radius to current X and Y values. Always program the ending points in circular
interpolation.
THIRD MOVE: Linear move to the next point.
