66
INSTALLATION
June 1999
96-8000

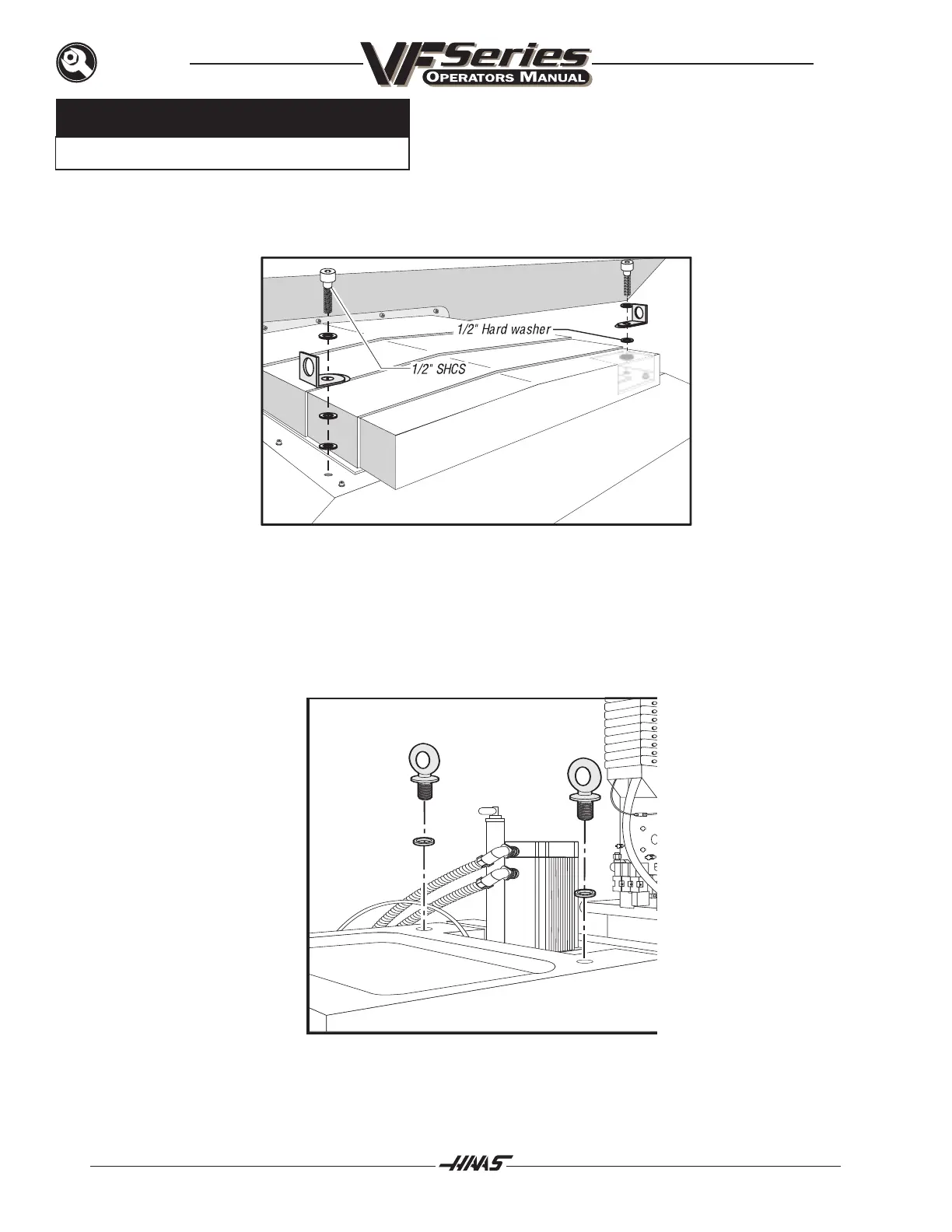

INSTALLING THE LIFT KIT
VF- 3 / 4
3. Install the lifting brackets with (2) 1/2"-13 SHCS and (2) 1/2' hard washers, [(2) washers under
bracket and (1) above bracket], to the base as shown in figure 1-3. Tighten securely.
Fig. 1-3 Lifting bracket mounting location for VF-3 and VF-4.
4. Install (2) ¾-10 x 1¼" eyebolts and (2) 3/4' hard washers to the column casting as shown in figure
1-4. Tighten securely.
Fig. 1-4 VF-3/VF-4 eyebolt locations.
