3. Attach the lifting chains to the rigging beam as shown. Use the spreader bars to protect against
any possible contact points.
IMPORTANT! The spreader bar above the column is used to keep the chains parallel to the column and evenly
distribute the load on the eyebolts.

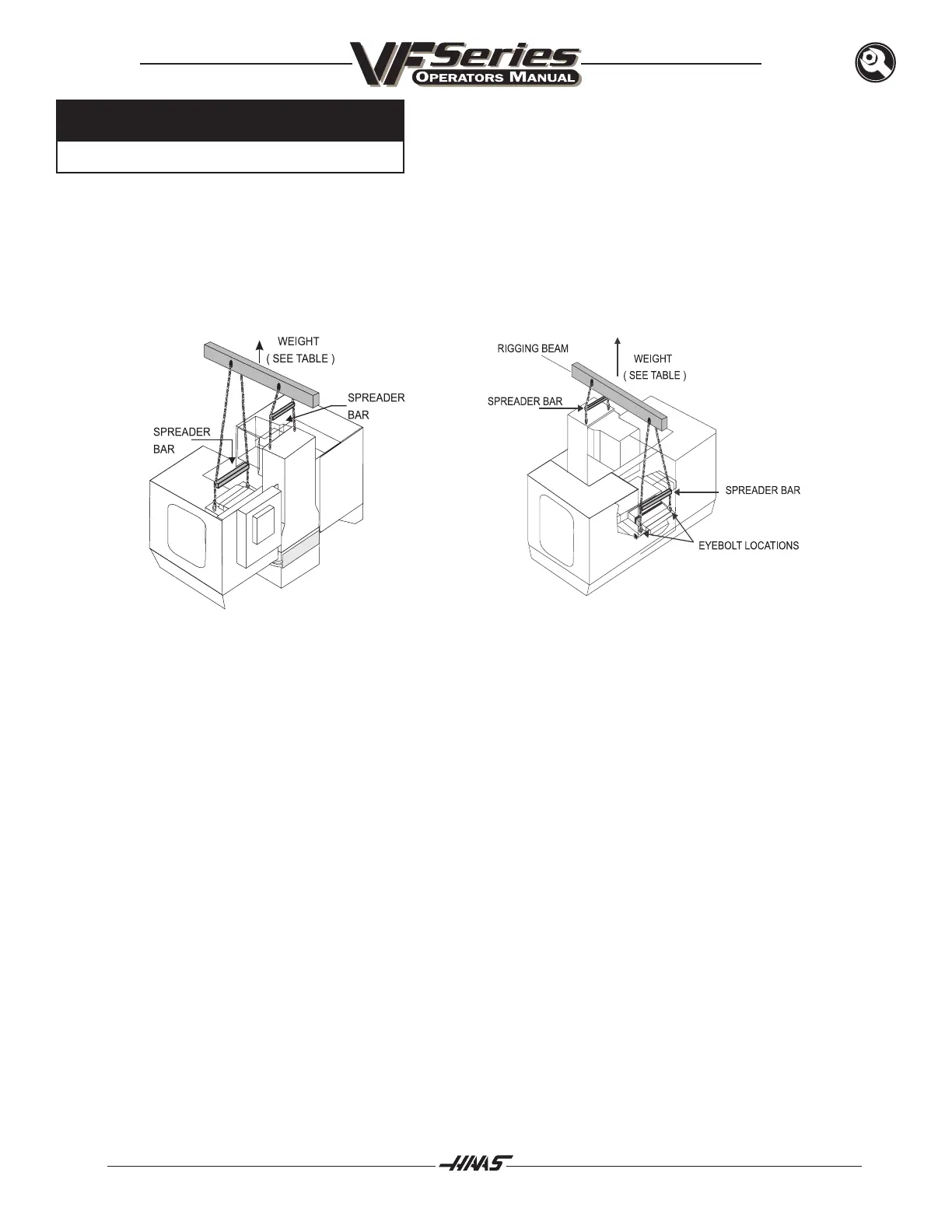

Fig. 2-3 VF-5 lifting positions.
BEAM STYLE LIFTING
VF-5 40 / 50 TAPER
