60 Chapter 5, Operating the TEG
®
Analyzer
P/N 115191-IE, Manual revision: AB Haemonetics
®
TEG
®
6s User Manual
11.Touch next.
The TEG analyzer starts the test, and the results screen displays. Figure
5-9 shows an in-progress assay after 16 minutes has elapsed.

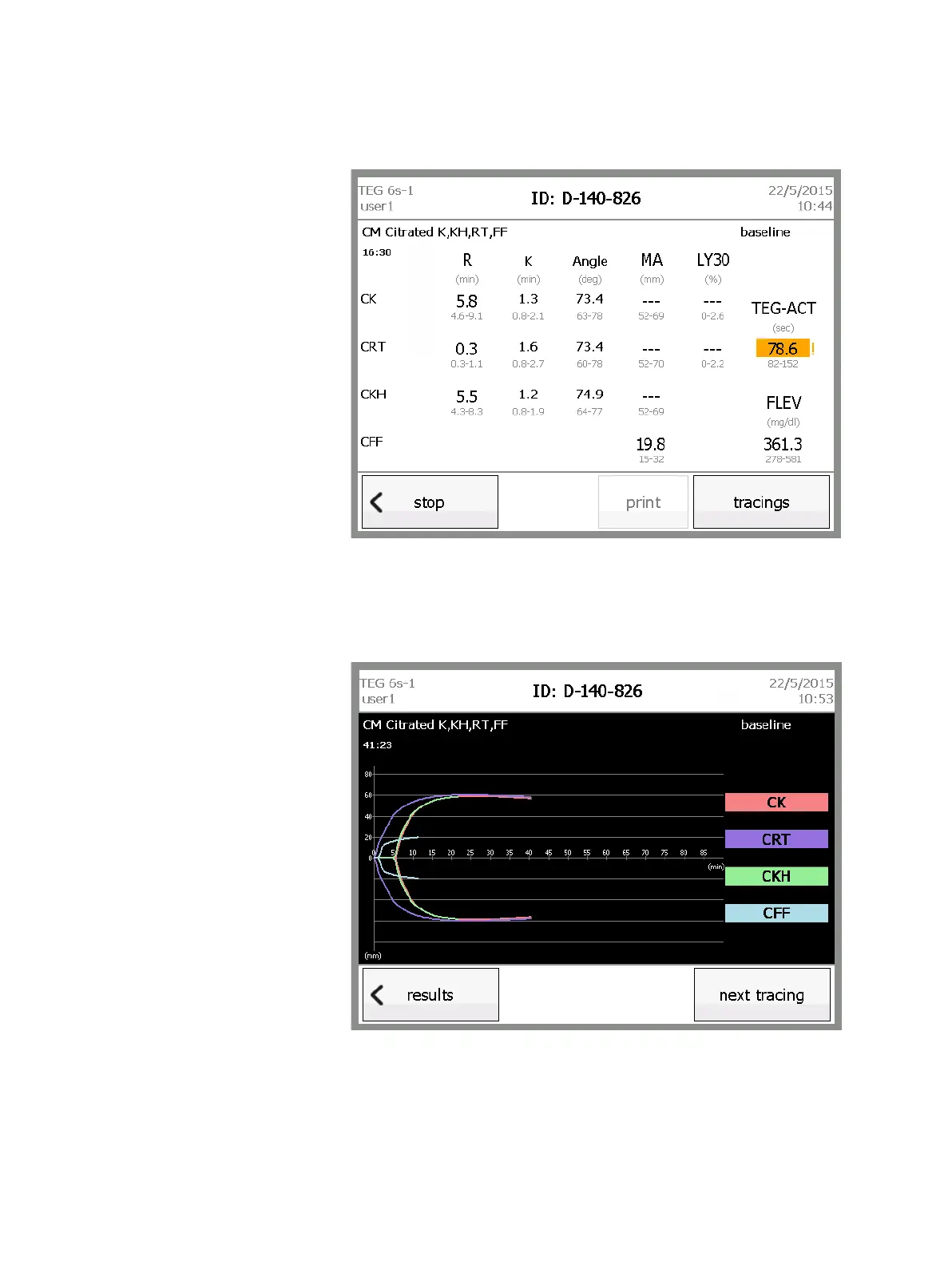

Figure 5-9, Test results (in progress)
12.Touch tracings to view a graphic representation of the results. To cycle
through superimposed, offset, and single-tracing views, touch next
tracing until the desired view is displayed. (For more information, see
“Tracing screens” on page 43).
Figure 5-10, Test results (superimposed tracing)
