74 Chapter 6, Quality Control
P/N 115191-IE, Manual revision: AB Haemonetics
®
TEG
®
6s User Manual
8. Touch next.
The TEG analyzer starts the QC test, and the results screen displays.
Figure 6-6 shows an in-progress assay after 14 minutes has elapsed.

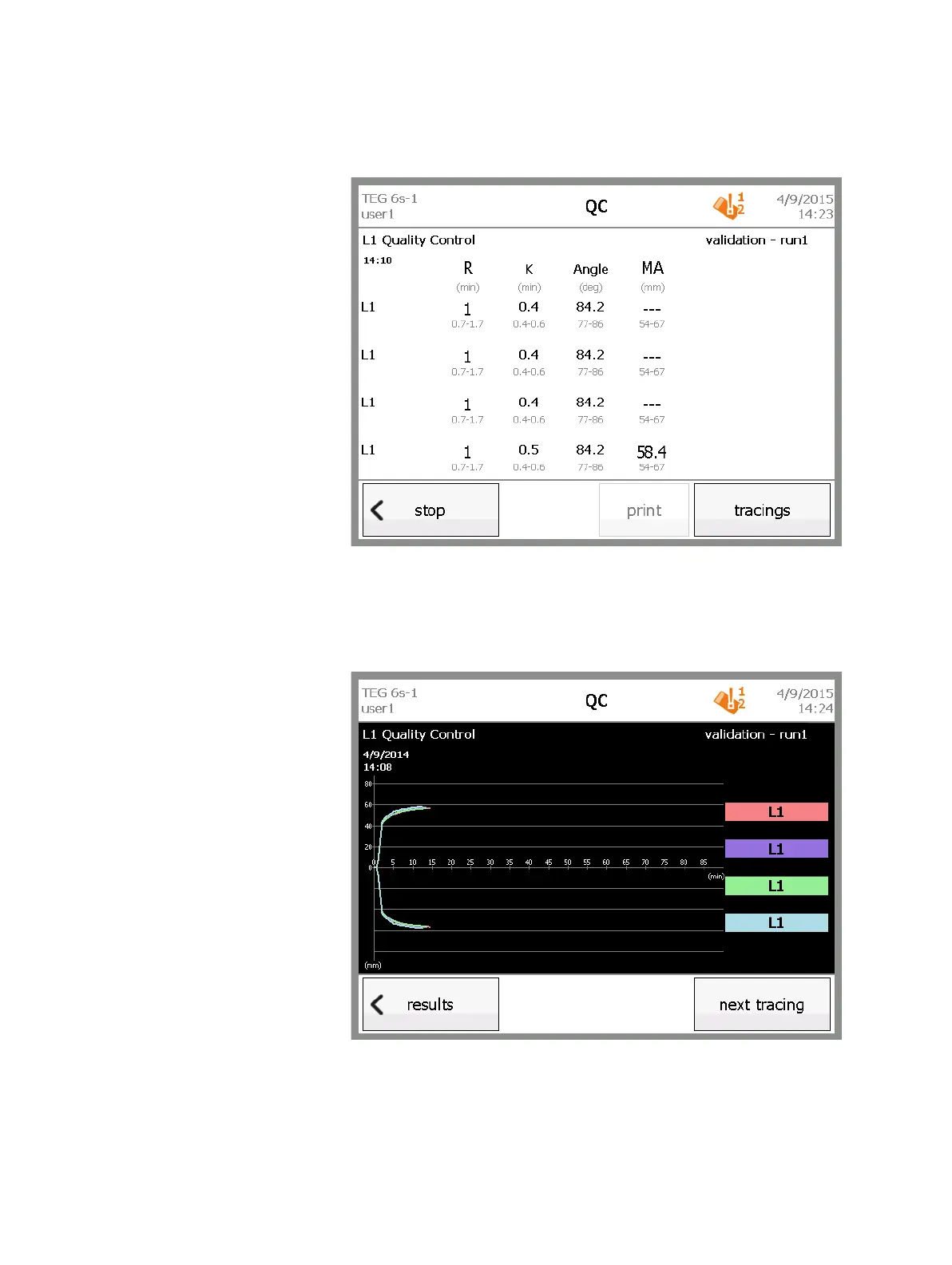

Figure 6-6, QC test results (in progress)
9. Touch tracings to view a graphic representation of the results. To cycle
through superimposed, offset, and single-tracing views, touch next
tracing until the desired view is displayed. (For more information, see
“Tracing screens” on page 43).
Figure 6-7, Test results (superimposed tracing)
