Alarm management
7.10 Programming the OAC module
Operation of the output contacts in Autoresetor Pulse mode

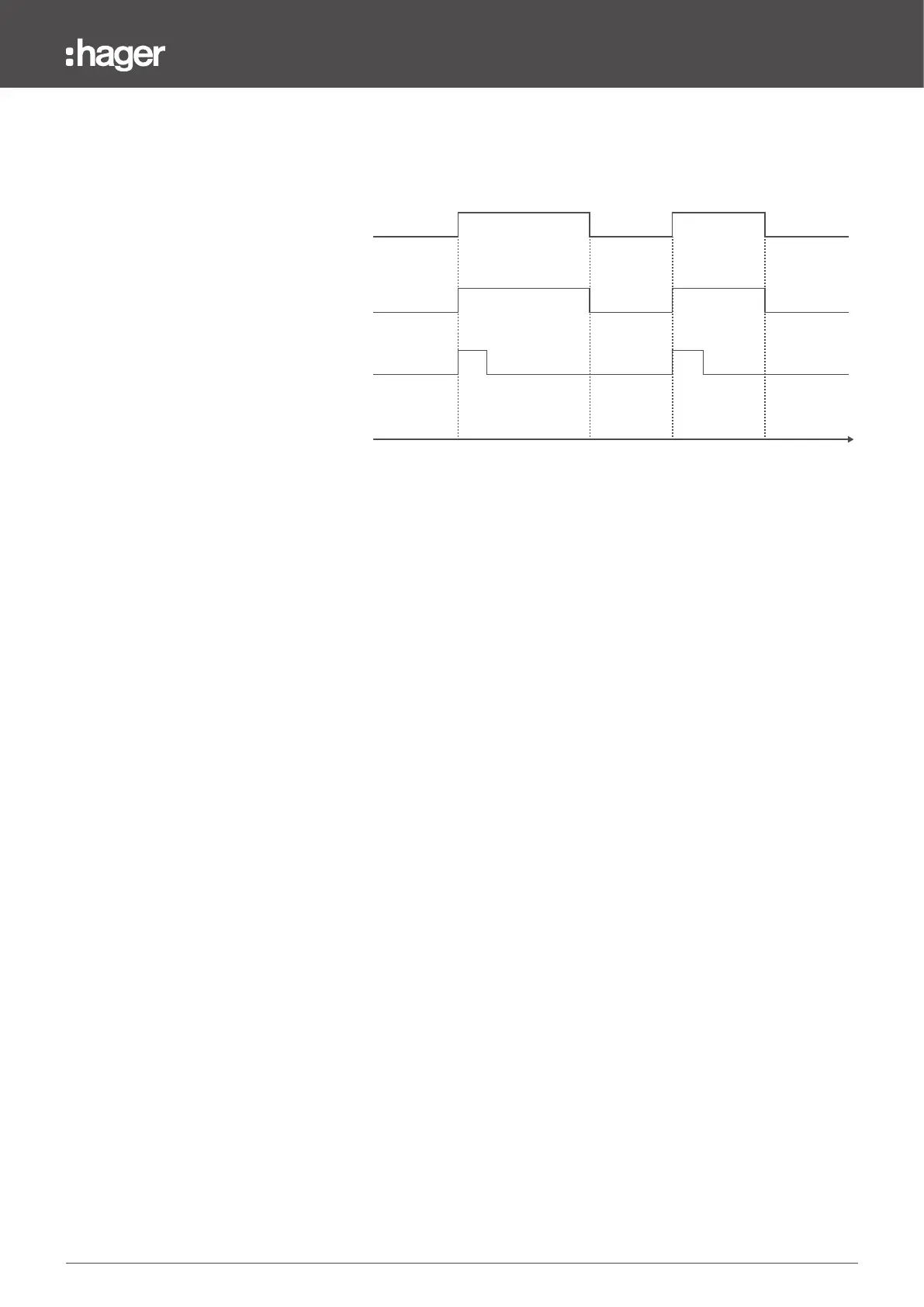

The following diagram shows the behaviour of a contact in Autoreset or Pulse mode.
Reset of the contacts in Manual mode
The contacts can be reset in Manual mode from the digital input configured to Remote reset.
When an event in the Trip section occurs, the contacts can also be reset by acknowledging
the alarm message on the sentinel Energy display.
For an Alarm or Operational event, however, this will be possible only from the digital input.
Event
Autoreset contact
Pulse contact
Active event Active event
