Hammer A3-41 - Additional Assembly Accessories; Accessories List

20
!
"
Planer-Thicknesser
A3-26 / A3-31 / A3-41
Rolling carriage
Art. No. 503-134
Mount the rolling carriage onto the machine housing.
The rolling carriage facilitates the task of positioning the
machine
(See assembly instructions „Rolling carriage“)

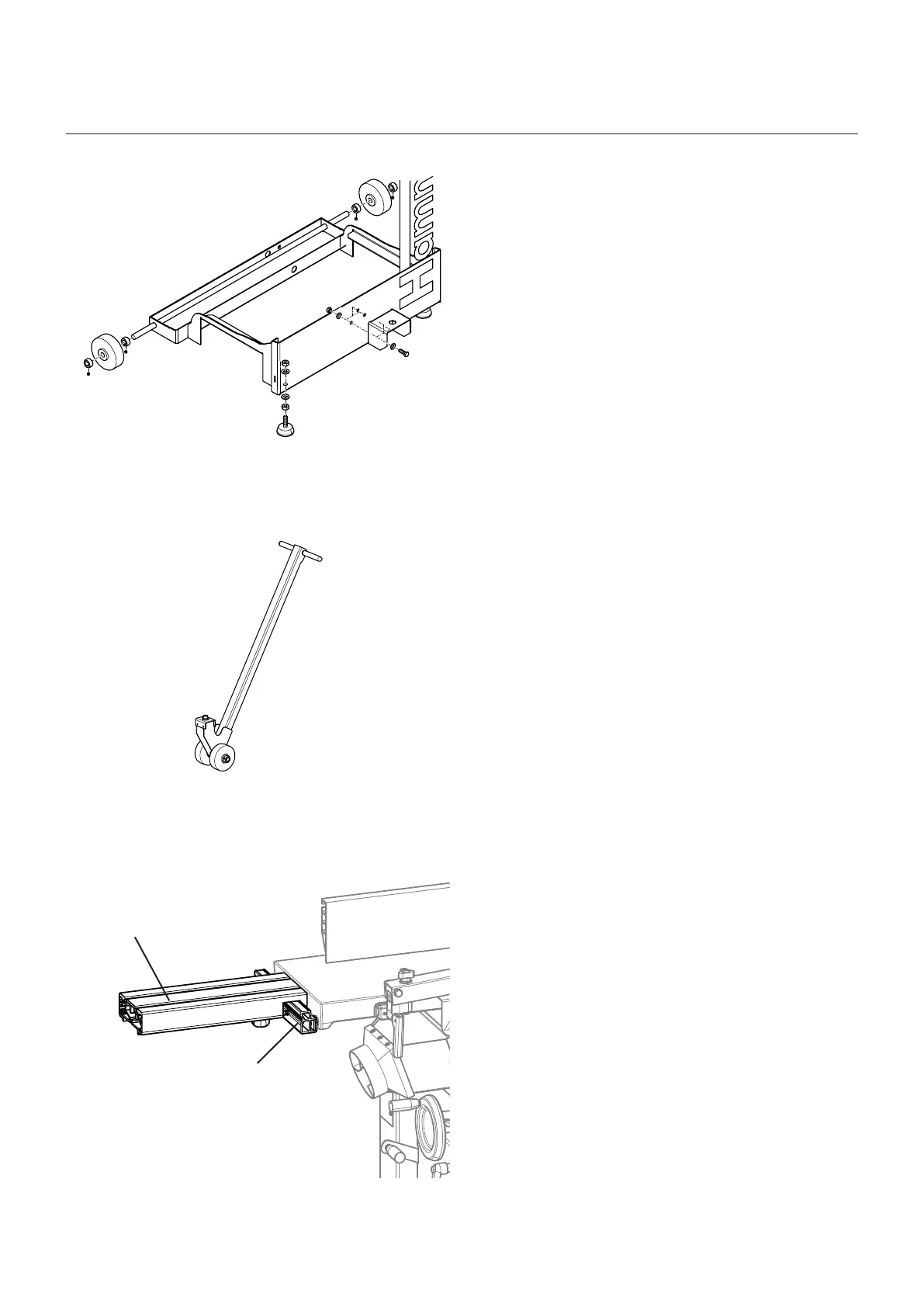

Fig. 5-5: Rolling carriage
Lifting bar
Art. No. 500-149
Hook the lifting bar under the rolling carriage coupling
(Accessory).
The lifting bar and the rolling carriage facilitate the task
of maneouvring the machine in the most confined space.
(See assembly instructions „Lifting bar“)
Fig. 5-6: Lifting bar
Fig. 5-7: Table extension
Assembly
HAMMER Mounting rail for table extension
Art. No. 500-157 (260 mm)
Art. No. 500-102 (310 mm)
Art. No. 500-151 (410 mm)
Table extension
500-101 (400x150 mm)
500-151 (800x150 mm)
Mount the table extension onto the planer tables. The
table extension is a safe support for longer workpieces
The table can be extended by 400 or 800 mm
(See assembly instructions „Table extension“)
! Table extension
" Mounting Rail for Table Extension
