Planer-Thicknesser
A3-26 / A3-31 / A3-41
8.7 Retooling from a planer to a thicknesser
1. Before beginning any maintenance work on the
machine, switch it off and secure it against acciden-
tally being switched on again.
2. Push the planer fence right to the front.
See Chapter >8.4 Adjusting the planer fence<
3. Loosen and pull out the clamping lever.
4. Open the planer table and ensure that the fall lock
engages correctly.
!Planer fence
" Clamping lever
# Planer tables
$ Safety catch

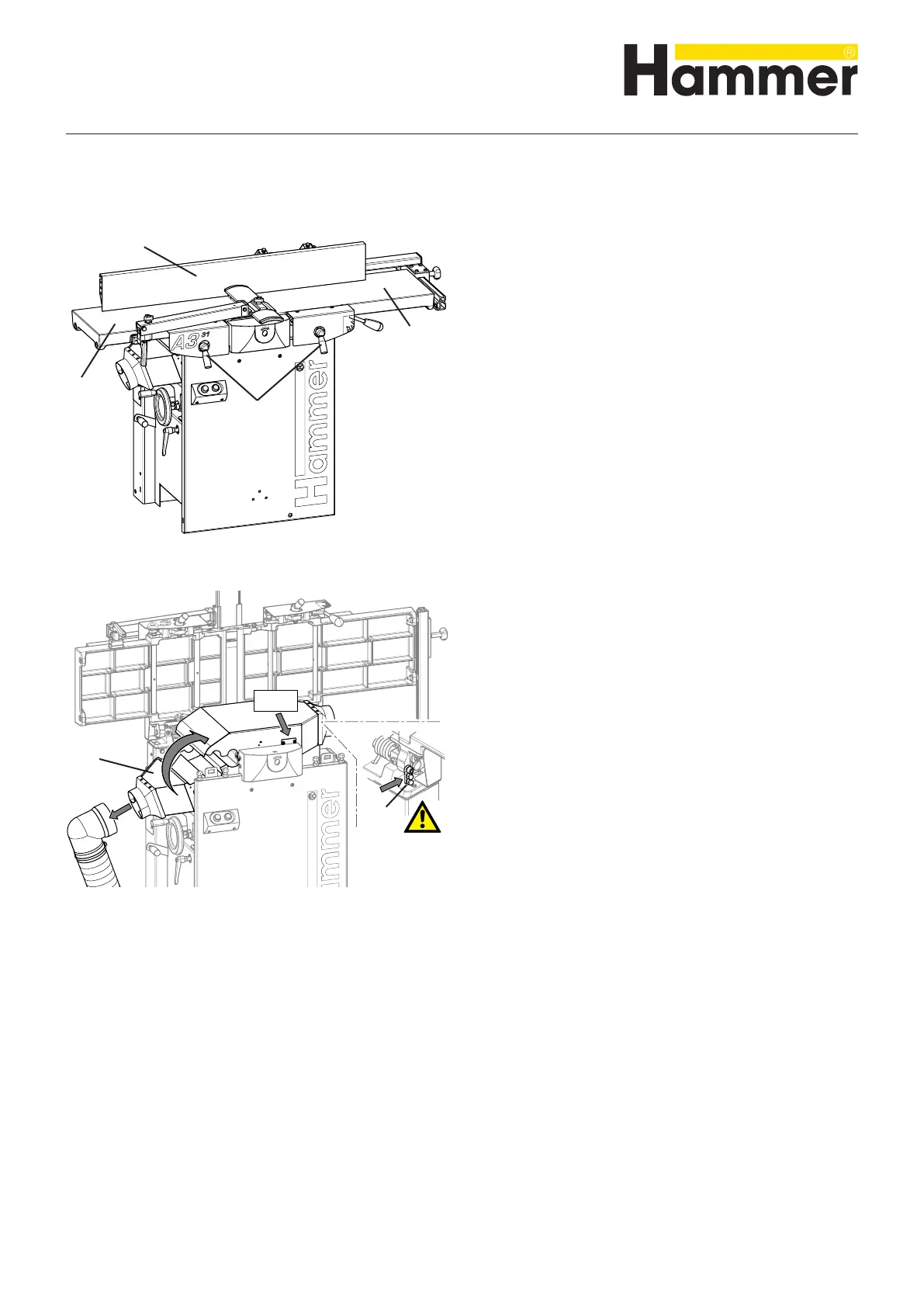

Fig. 8-8: Open planer table
Fig. 8-9: Tilt up the vacuum hood
5. Remove the vacuum hose from the vacuum hood
6. Tilt up the vacuum hood
Ensure the extraction hood slots into place correctly
7. Attach the vacuum hood by means of the connector to
a suitable vacuum system.
See Chapter >7.3 Chip extraction<
% Vacuum hood
Note:
Safety break switches are breaking the electric circuit.
The planer arbor can only run when the joiner tables are closed or the extractor hood is tilted up.
Making adjustments and preparations
