Planer-Thicknesser
A3-26 / A3-31 / A3-41
8.4 Adjusting the planer fence
8.4.1 Adjusting the angle
1. Switch off the machine
2. Loosen the clamping lever.
3. Set the angle between 90° and 45° on the scale.
4. Clamp the clamping lever.
! Scale
" Clamping lever

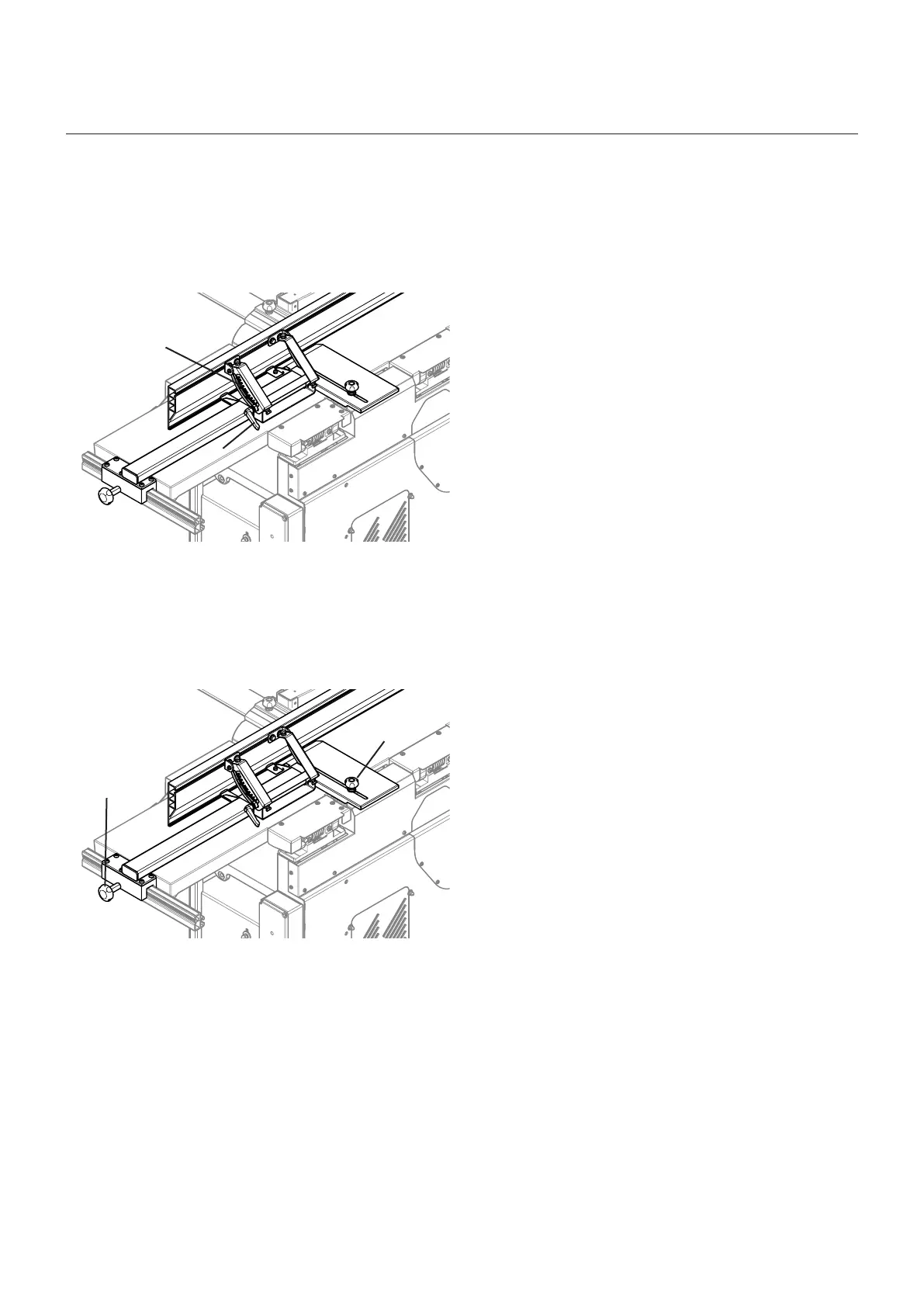

Fig. 8-4: Adjusting the planer fence
8.4.2 Sliding
Adjusting the settings to the width of the workpiece:
1. Switch off the machine
2. Loosen the thumb screws.
3. Move the combination fence into the desired position.
4. Tighten the thumb screws.
! Thumb screws
Fig. 8-5: Move the planer fence
Making adjustments and preparations
