Planer-Thicknesser
A3-26 / A3-31 / A3-41
10.3 Maintenance work
10.3.1 Checking/cleaning the kickback guards
1. Before beginning any maintenance work on the
machine, switch it off and secure it against acciden-
tally being switched on again.
2. Check if functioning: the kickback guards must fall
back after having been lifted
3. Check if functioning:
• Push a planed board into the machine.
• Adjust the height of the thicknessing table so that
there is 0.5 to 1 mm gap between the board and
the cutterblock’s circle of cut.
• It should not be possible to pull the board out of
the machine.
• Push the board out of the machine.
4. Remove any resin residue:
Resin Remover
Art. No. 10.0.022 (0,5 l) / 10.0.023 (1,0 l)
! Planed board
" Thicknesser table
# Kickback guards
$ Cutterblock
Note: Should the kickback guards not function properly even after having been cleaned, please contact
the HAMMER Service department.
10.3.2 Cleaning the feed rollers
1. Before beginning any maintenance work on the
machine, switch it off and secure it against acciden-
tally being switched on again.
2. Remove any resin residue on the feed rollers:
Resin Remover
Art. No. 10.0.022 (0,5 l) / 10.0.023 (1,0
l)
! Feed rollers
Fig. 10-3: Cleaning the feed rollers
Fig. 10-2: Testing the kickback guards

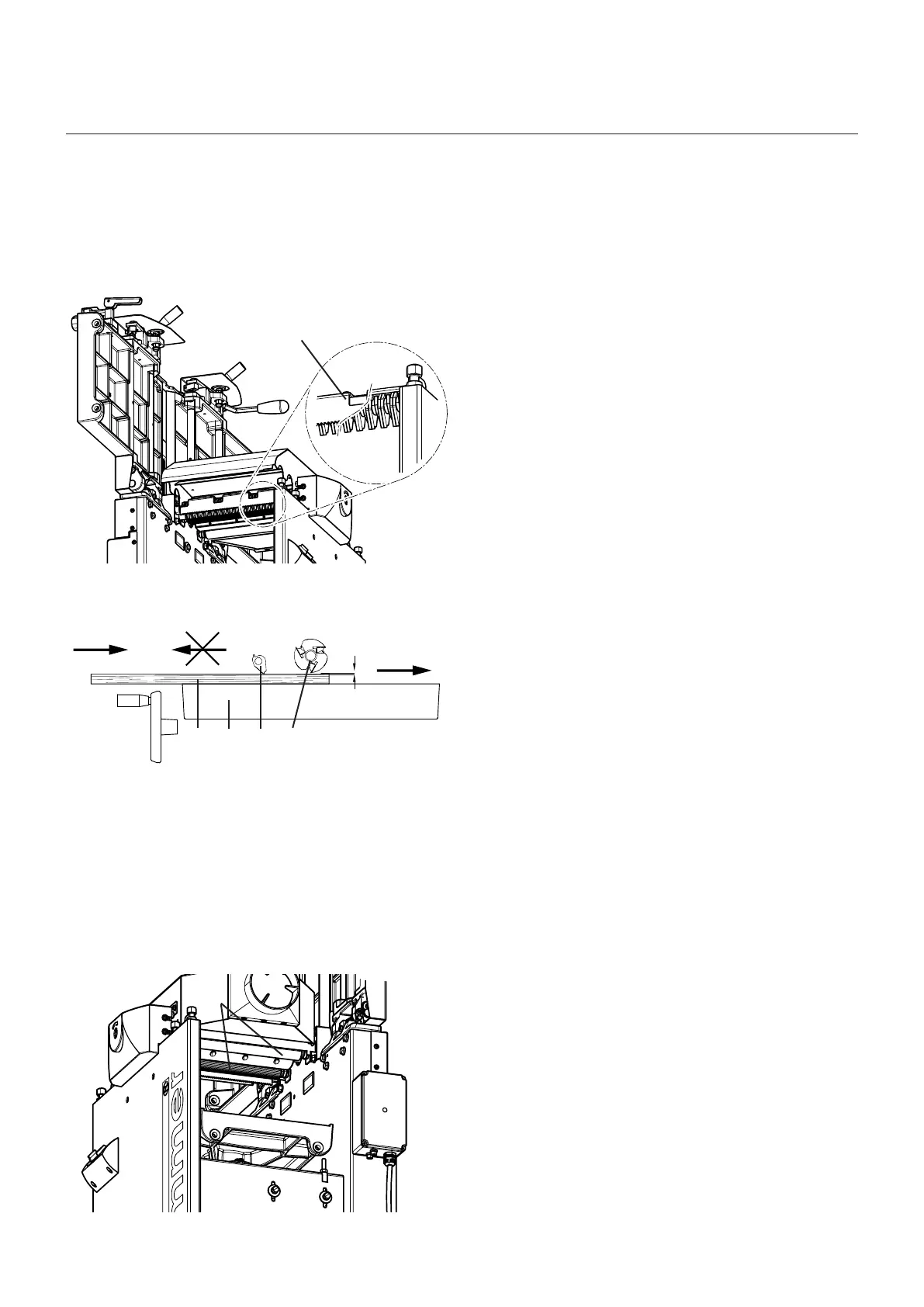

Fig. 10-1: Kickback guards
