Hammer A3-41 - Surface Planing: Workpieces up to 75 mm; Surface Planing (Workpieces up to 75 mm)

44
!
"
#
Planer-Thicknesser
A3-26 / A3-31 / A3-41
Attention! Risk of injury!
When planing smaller workpieces, use a pushing stick or pushing block.
9.4.4 Surface planing - Workpieces up to 75 mm thick
1. Before beginning any maintenance work on the
machine, switch it off and secure it against acciden-
tally being switched on again.
2. Both planer tables must be shut and fixed with the
clamping levers.
3. Set the gear lever to the “0” setting.
4. Extraction system must be connected
5. Planer fence: set at 90°.
6. Adjusting the depth of cut.
7. Adjust the joint, if necessary.
8. Adjust the bridge guard:
• Use the setscrew to fix the guard rail approx.
2 mm over the workpiece.
• Place the workpiece against the planer fence and
push it slightly under the guard rail (not over the
cutterblock!).
• Loosen the clamping screw.
• Move the guard rail right up to the planer fence.
• Tighten the clamping screw.
9. Switch the machine on
10. Take up work position.
11. Machining the workpiece:
• Lay your hands flat on the workpiece, ensuring that
your fingers are balled into a fist and thumbs are
pressed against the workpiece.
• Push the workpiece straight over the feeder-side of
the planer table.
• Then let your hands glide one after the other over the
bridge guard.
• As soon as it is possible, use both hands to
continuously push the workpiece on the receiver-side
of the planer table.
• The pushing stick must not be thicker than the workpi-
ece after it is cut.
12. If you are not going to continue working, switch off
the machine and secure it against being turned on
again accidentally

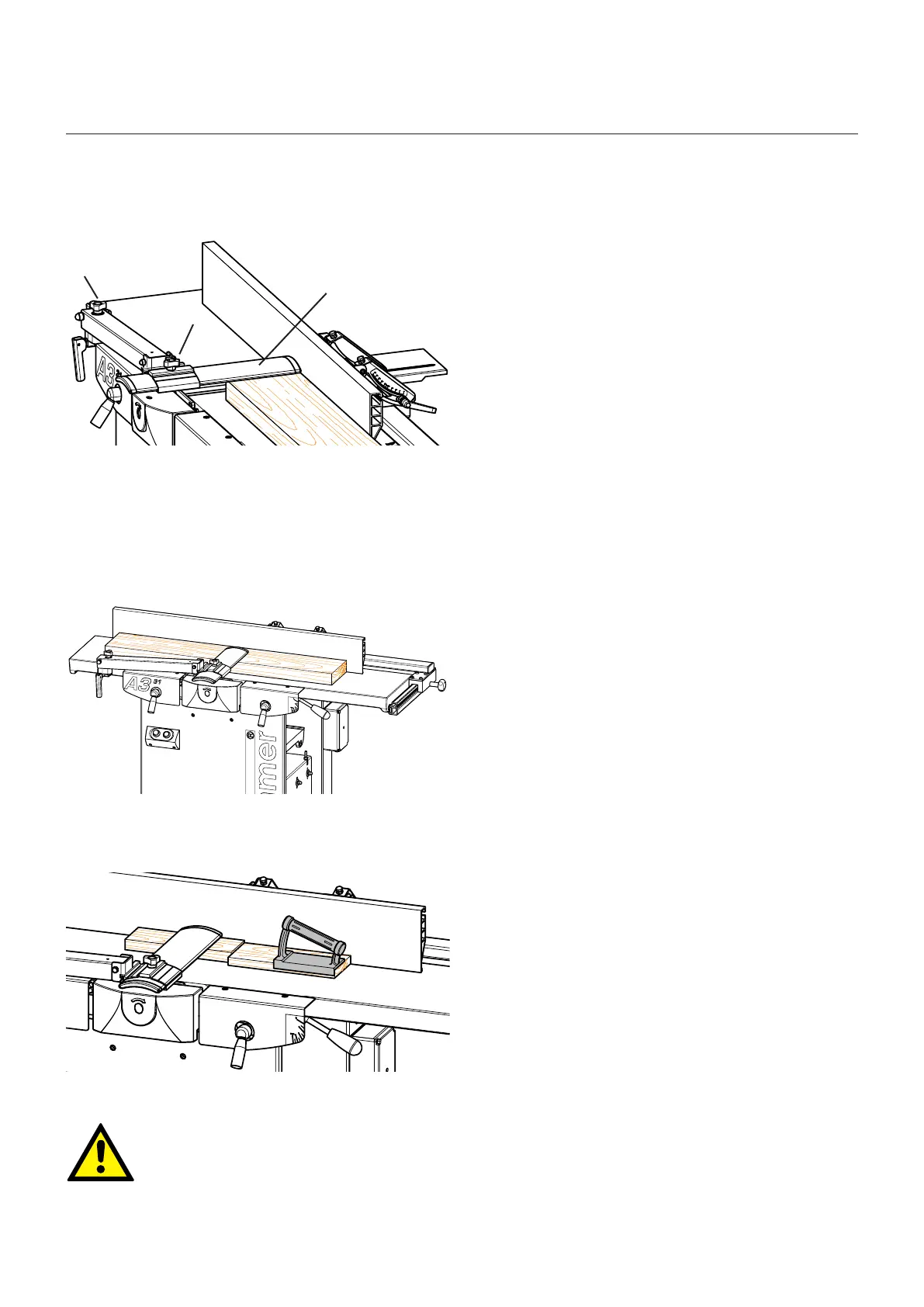

Fig. 9-6: Wooden push stick and push block
Fig. 9-5: Guiding the workpiece
Fig. 9-4: Bridge guard
!Setscrew
"Clamping screw
#Protective rail
Operation
