30
Planer-Thicknesser
A3-26 / A3-31 / A3-41
7.3 Chip extraction
In order to hinder the build-up of dust, it is necessary to
have a vacuum system with sufficient capacity.
Before operating the machine for the first time,
inspect it for defects.
Attention!
The machine has to be connected to a dust extractor.
Vacuum hose must be flame-resistant and must conduct electricity! Be sure to use only genuine HAMMER
vacuum hoses!
Requirements for the dust extraction system and hoses:
• The extraction capacity has to generate the required
low pressure and the required air speed
(See technical data)
• Connect the dust extraction system to the machine in
such a way so as to operate in unison with
the machine.
• The dust extraction hoses must be electrically conducti-
ve and grounded to prevent electrostatic build up.

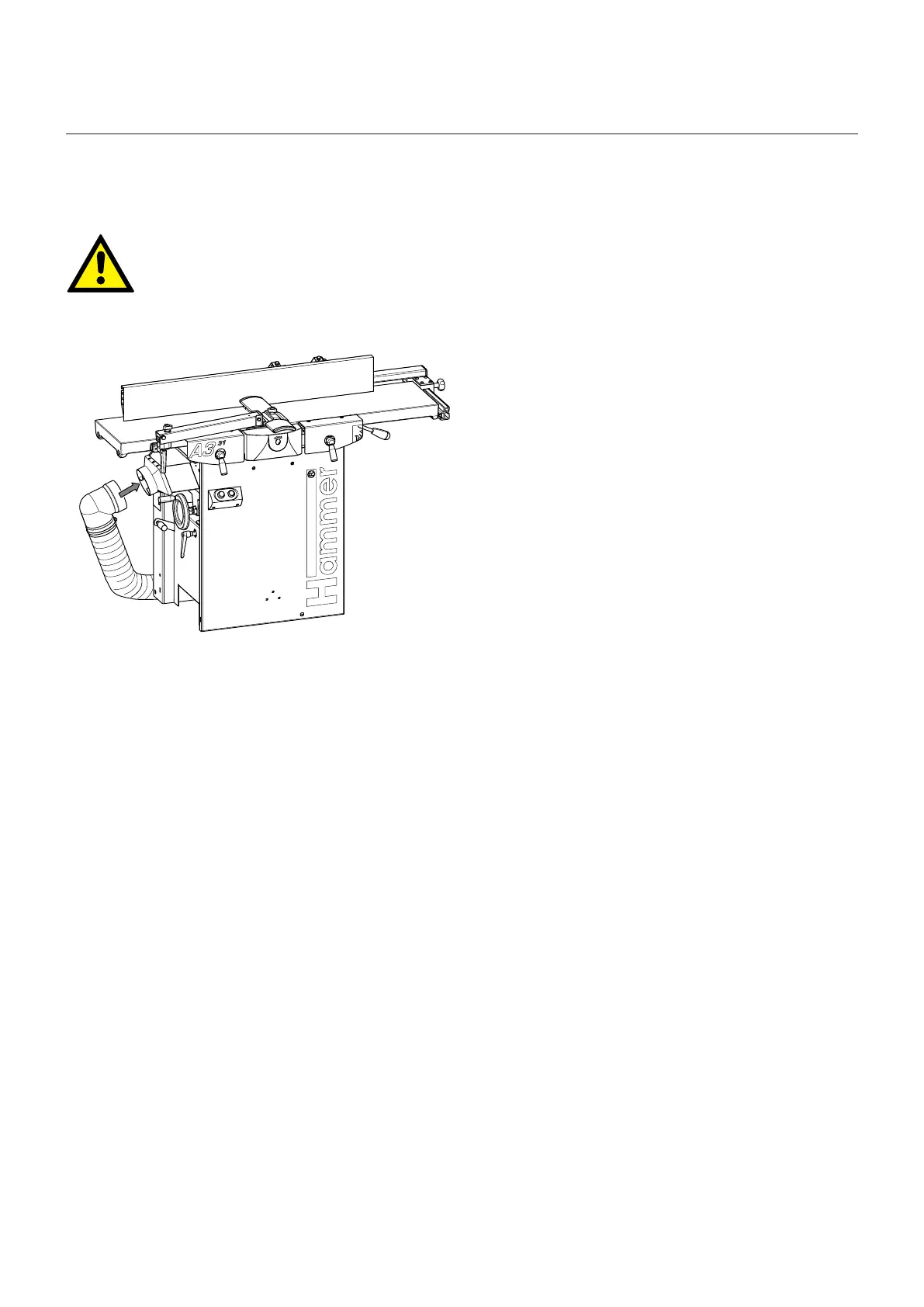

Fig. 7-5: Extractor port diameter
Setup and installation
