Planer-Thicknesser
A3-26 / A3-31 / A3-41
The machine can be transported with a crane, forklift,
pallet jack or rolling carriage.
When moving the machine with a forklift or pallet jack,
bolt the transportation device (option) onto the housing
( See assembly instructions „Transport device“).
! Transport device
Warning! Risk of injury!
Remove the transportation device immediately after moving the machine.

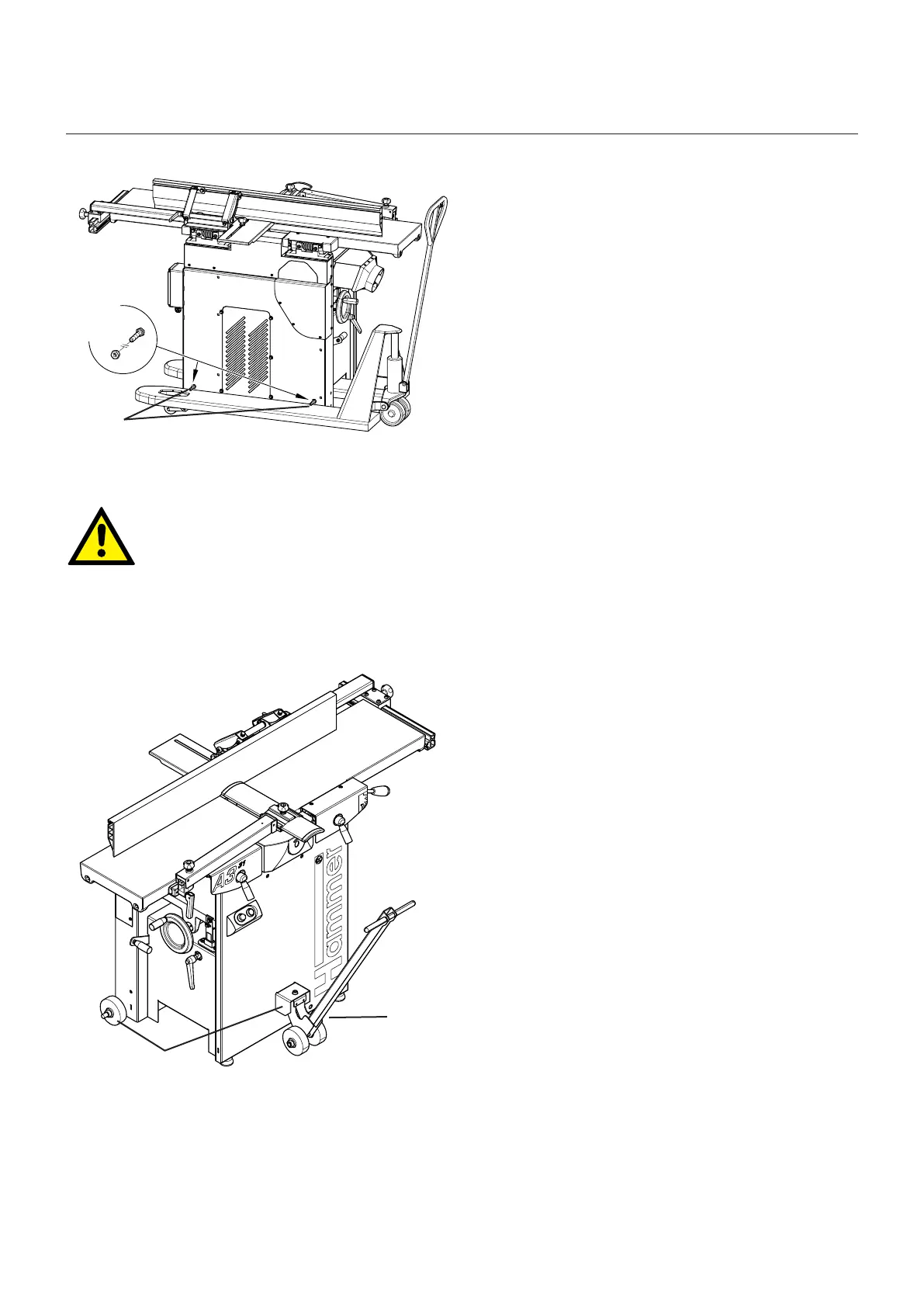

Fig. 6-2: Transport with a pallet jack
Note: The rolling carriage and the lifting bar (option) facilitate the task of transporting the machine.
Fig. 6-3: Transport with a rolling carriage
Mount the rolling carriage onto the machine housing.
(See assembly instructions „Rolling carriage“ and „Lifting
bar“)
! Rolling carriage
" Lifting bar
Transport, packaging and storage
