12 | Spare parts Trophy

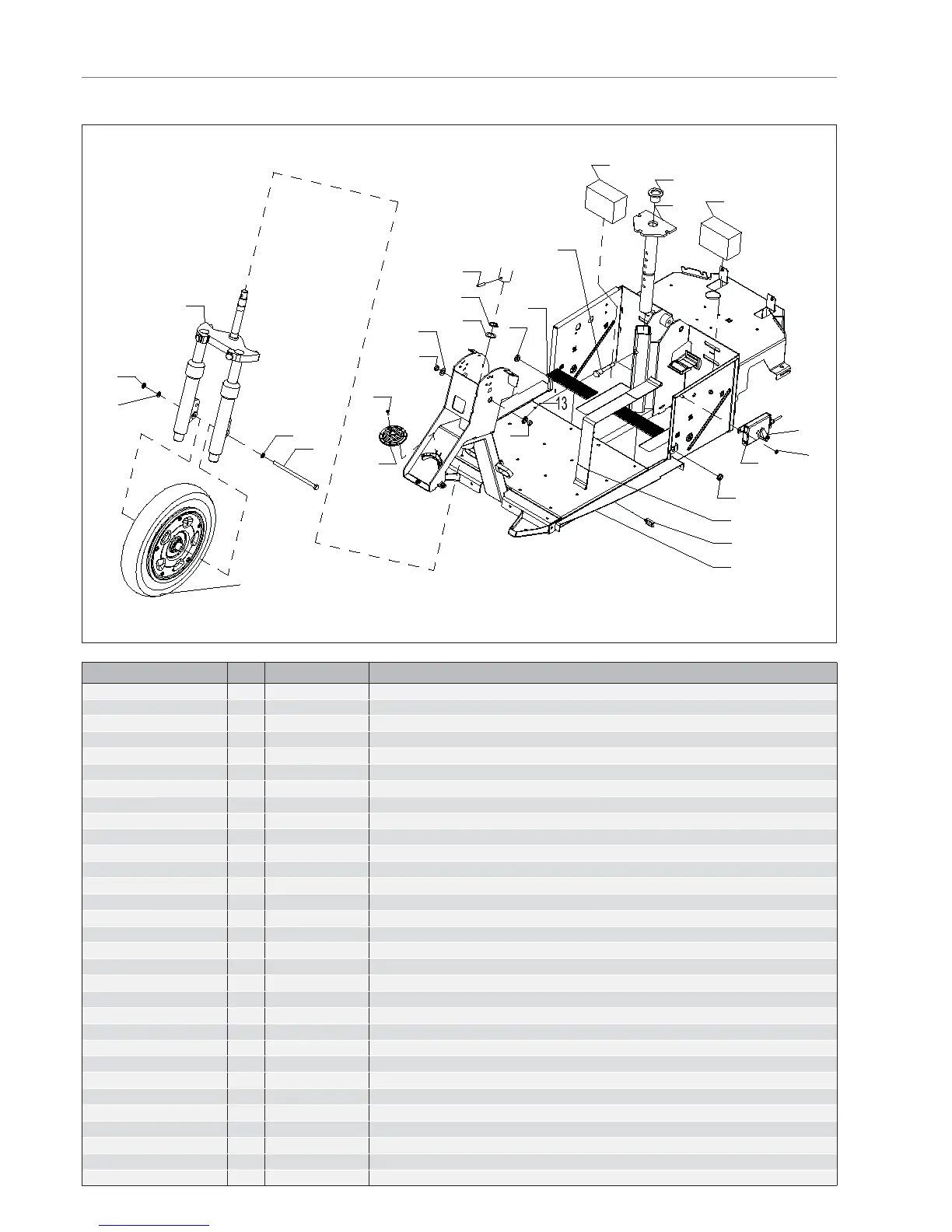

01 Front frame, front fork and front wheel Trophy 3W
Pos Qty Article number Description
1
2
4
8
















DEF
DE

1 1 9003907 Nylon bearing seat post
2 1 9004025 Seat post
3 2 00001.0008 Spacer block, battery
4 1 9005156 Seat post bolt
5 1 9000762 Lever freewheel
6 2 00000.1701 Lock nut M6
7 1 9000178 Freewheel mechanism for Schmid transaxle
7 1 9000871 Hand brake mechanism
8 2 9000630 Tulle
9 2 9000591 Strap, battery retention
10 14 9000788 Clamp, cable
11 1 1010286 Front frame, incl. ball-head bearings Trophy 3W
12 2 1001277 Anti-slip mat
13 2 00000.5306 Hinge pin, steering adjustment
14 1 00001.0804 Rolled pin 6x30
15 1 1001796 Lock washer
16 1 00000.6008 Ring 20x28x1
17 2 9000632 Bush bearing tiller
18 1 9000542 Horn for original electronics (ID-no < QT02400)
19 2 00000.3218 Screw M4x12
20a 1 9000584 Front wheel complete with white rim and grey tyre
20b 1 9001994 Front wheel complete with grey rim and grey tyre
20c 1 9004159 Front wheel complete with grey rim and black tyre
21a 1 15010.4200 Tyre grey front wheel Trophy
21b 1 9004161 Tyre black front wheel Trophy
22 1 15010.4100 Inner tube, front wheel Trophy
23 1 9002166 Hex bolt M8x150
24 2 00000.2203 Spring washer M8
25 1 00000.1702 Lock nut M8
26 1 9000504 Front fork, complete
- 2 9000493 Ball-head bearing 6004 2NSE
