Service instructions | 37Trophy Service instructions | 37
5.4.2 Front frame 3W

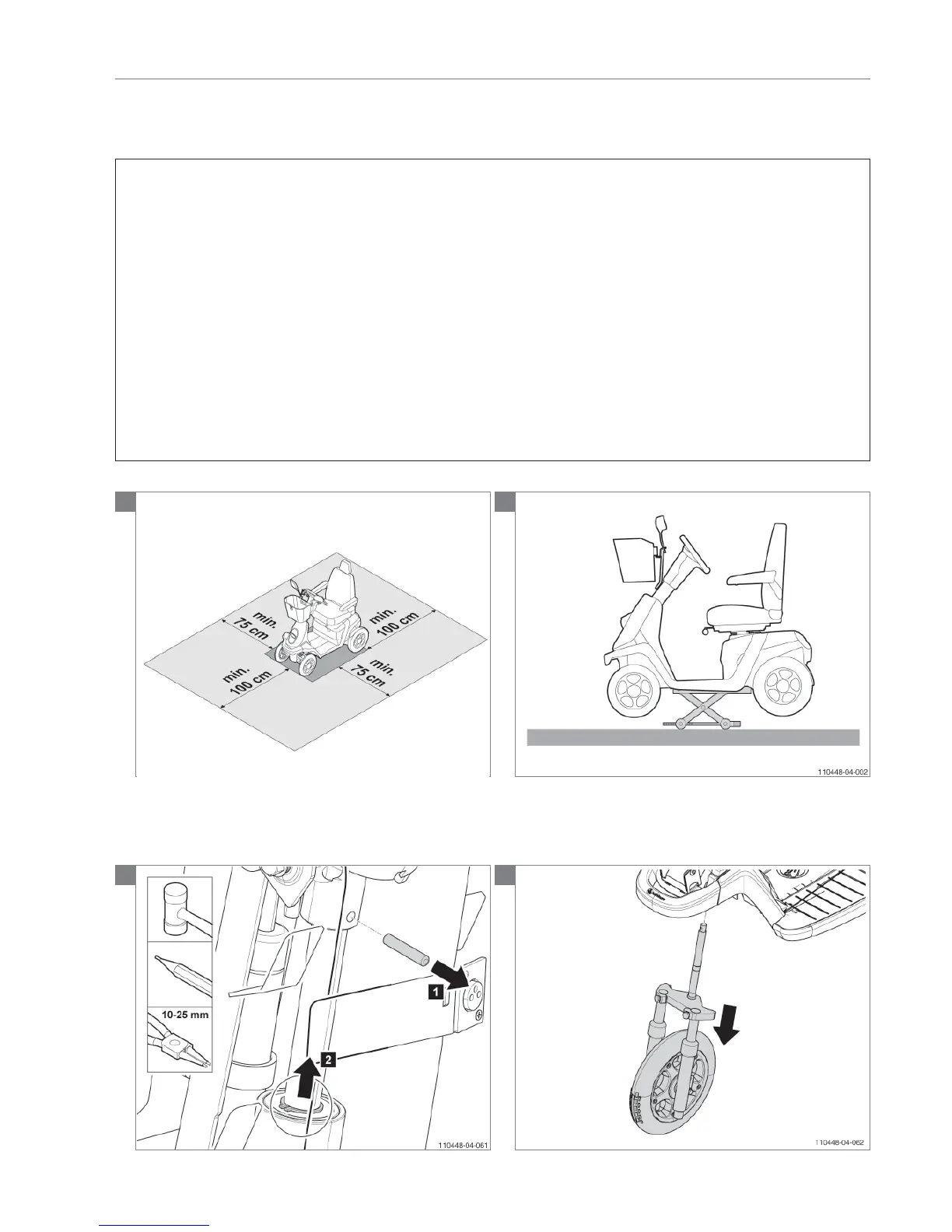

Replacing the front wheel and fork
Preparation
• Switch off the scooter with the ignition key.
• Use a lifting device to raise the scooter clear of the
ground.
Instructions
The following operations are required to replace the front
fork 3W:
• Remove the front cover and the front cover rear part.
• Remove the retaining ring and spiral pin.
• Remove the complete fork with wheel.
• Remove the hexagon nut, washer and bolt to take out the
wheel.
• Replace the new front fork 3W.
• Rebuild the scooter in the reverse order.
Relevant article numbers
• 9000504 Front fork
Tools used
• Torque wrench, socket, 13 mm
• Screw driver, crosshead
• Hammer (plastic)
• Chaser
• Circlip pliers
• Open ended spanner, 13 mm
Notice
• Some parts need to be replaced; the replacement is
indicated by a symbol.
• Some operations have to be carried out by two persons;
this is indicated by a symbol.
1
2
3
4
