5.4.4 Rear frame

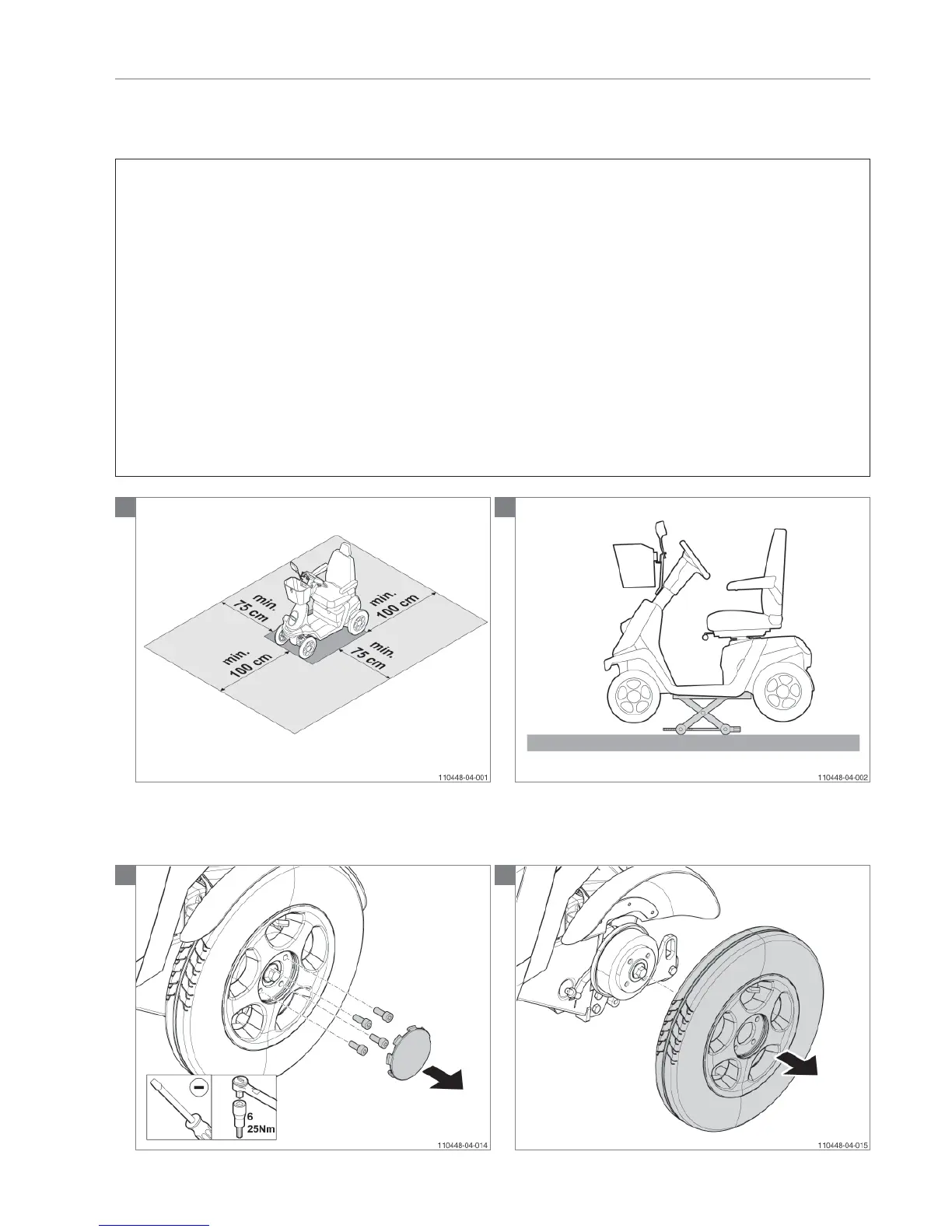

Replacing the rear wheel
Preparation
• Switch off the scooter with the ignition key.
• Use a lifting device to raise the scooter clear of the
ground.
Instructions
The following operations are required to replace the rear
wheel:
Note! Suitable work area required!
• Remove the cover and four hexagon head cap screws to
remove the rear wheel.
• Mount the new rear wheel in the reverse order.
Relevant article numbers
• 9000550 Rear wheel white, left-side with brake drum
• 9001996 Rear wheel grey, left-side with brake drum
• 1015104 Rear wheel grey, left-side with brake drum and
block profi le
• 9001172 Rear wheel white, left side standard
• 9001998 Rear wheel grey, left side standard
• 1015154 Rear wheel grey, left side standard with block
profi le
• 9000549 Rear wheel white, right-side with brake drum
• 9001995 Rear wheel grey, right-side with brake drum
• 1015103 Rear wheel grey, right-side with brake drum and
block profi le
• 9001173 Rear wheel white, right side standard
• 9001997 Rear wheel grey, right side standard
• 1015153 Rear wheel grey, right side standard with block
profi le
Tools used
• Screwdriver
• Torque wrench, socket bit, 6 mm
Notice
• N.a.
1
2
3
4
