Spare parts | 13
Trophy

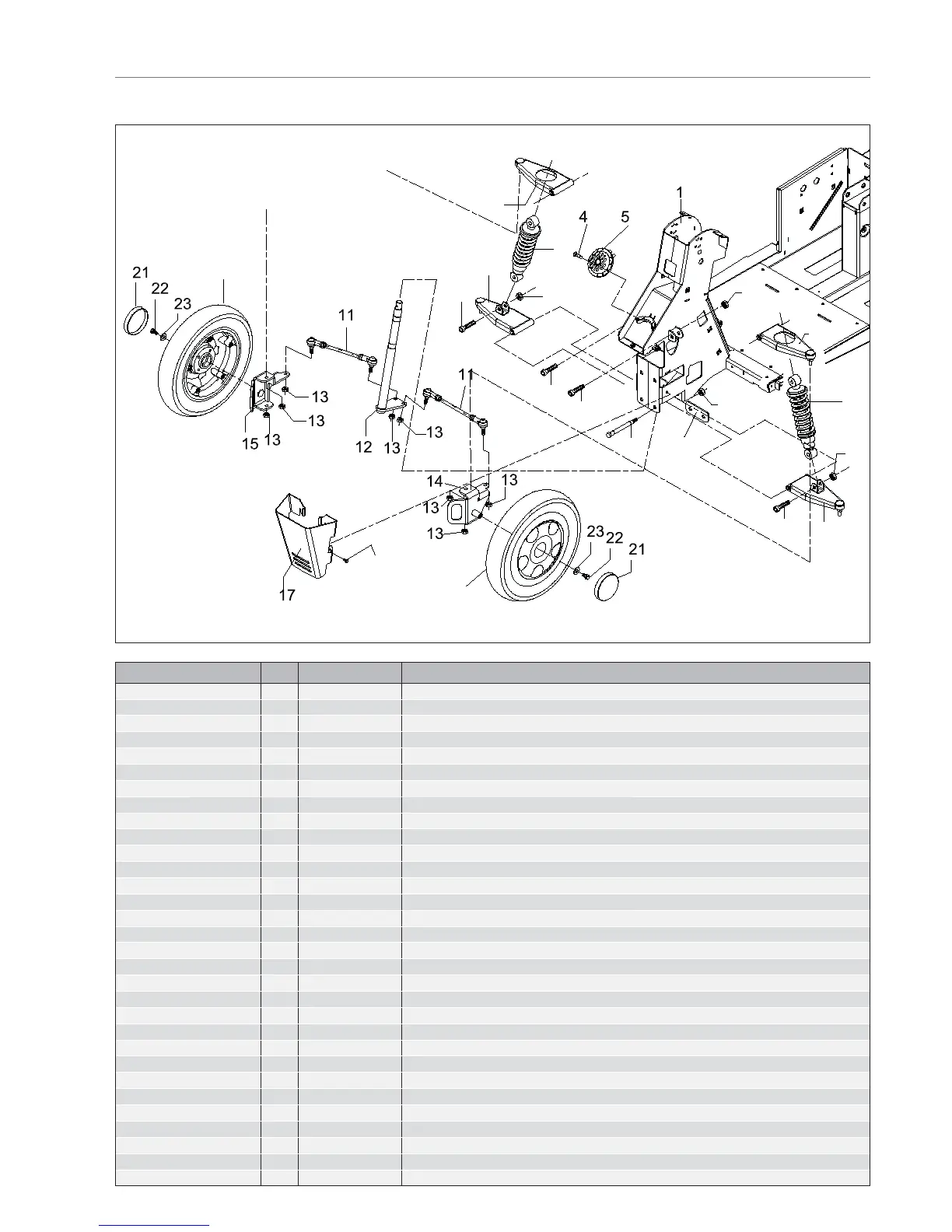

02 Front frame, front suspension and front wheels Trophy 4W
Pos Qty Article number Description
3
6
2
9
7
2
24
10
9
9
7
9
2
6
3
16
8
18a,b
19a,b
20
18a,b
19a,b
20
1 1 1010287 Front frame, incl. ball-head bearings Trophy 4W
2 4 00000.1703 Lock nut M10 D985
3 2 9002090 Swing arm top assy (grey)
3 2 9004458 Swing arm top assy (black)
4 2 00000.3218 Screw M4x12
5 1 9000542 Horn for original electronics (ID-no < QT02400)
6 2 9001641 Shock absorber
7 2 9002091 Swing arm low assy (grey)
7 2 9004459 Swing arm low assy (black)
8 1 9001895 Connection plate
9 4 001.03010.001 Hex bolt M10x40 D931
10 2 9001803 Axle suspension parallel bracket
11 2 9002101 Steer rod
12 1 9001802 Steer shaft
13 8 00000.1702 Lock nut M8
14 1 9001795 Wheel bracket left (grey)
14 1 9003406 Wheel bracket left (black)
15 1 9001801 Wheel bracket right (grey)
15 1 9003408 Wheel bracket right (black)
16 2 00000.4307 Hex bolt M6x12
17 1 9001940 Bumper plate Trophy 4-wiel
18a 2 9001815 Front wheel complete with grey rim and grey tyre, Trophy 4W
18b 2 9004511 Front wheel complete with grey rim and black tyre, Trophy 4W
19a 2 15010.4200 Tyre grey front wheel Trophy
19b 2 9004161 Tyre black front wheel Trophy
20 2 15010.4100 Inner tube, front wheel Trophy
21 2 9002006 Cover grey
22 2 00000.4312 Hex Bolt M8x16
23 2 00000.2003 Washer fl at M8
24 4 00000.1702 Lock nut M8
- 2 9000493 Ball-head bearing 6004 2NSE
