14 | Spare parts Trophy

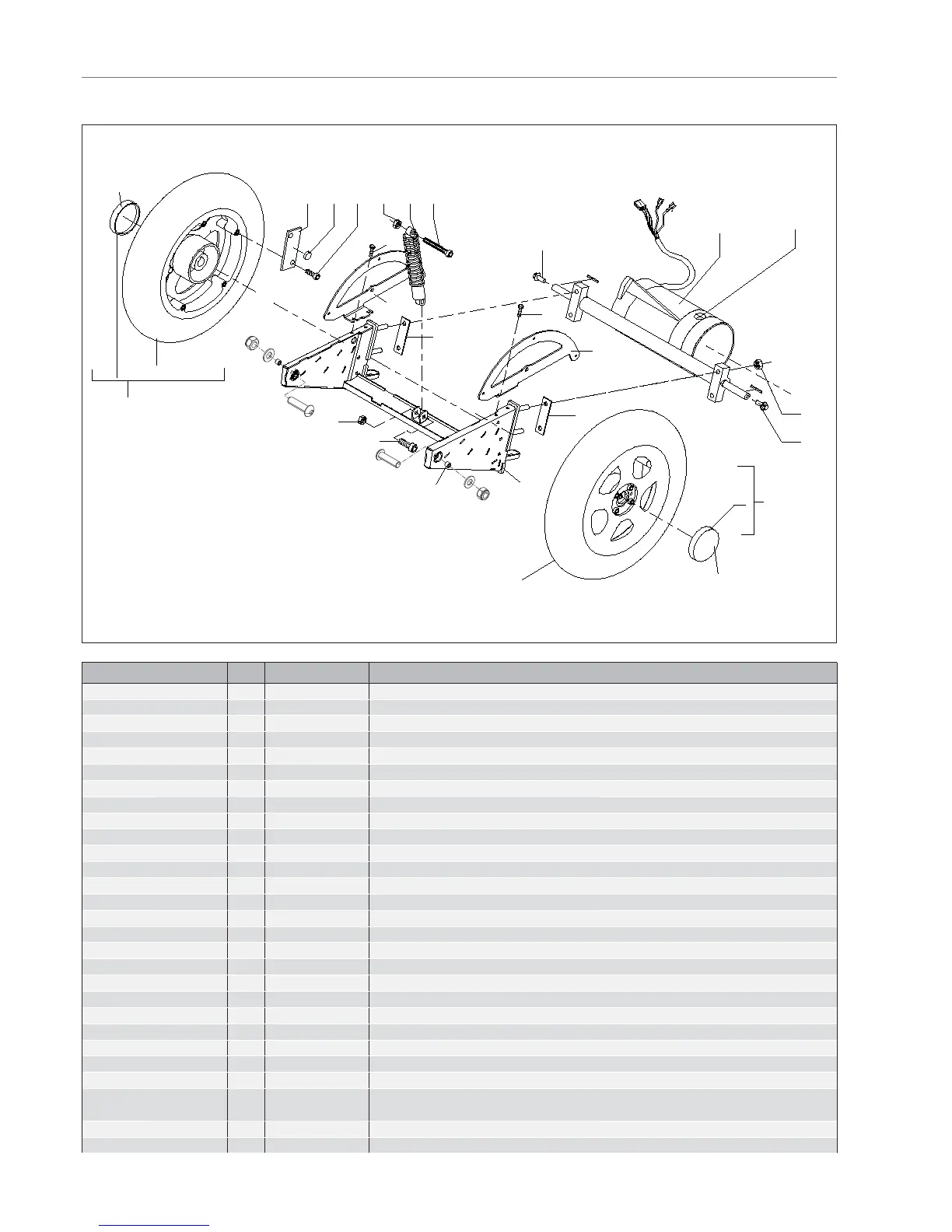

03 Rear frame, drive unit and rear wheels
Pos Qty Article number Description
20
19
4
16 17 18
7a,b,c,d,e
8a,b,c,d,e
5a,b,c,d,e
6a,b,c,d,e
4
1
9a,b,c,d / 10
9a,b,c,d / 10
22
22
21
19
3
13 1514
23
16
24
11/12
11/12
2
25
1 4 1002646 Carbon brush for Trophy with Egis (8x10mm)
1 4 103.00031.000 Carbon brush for Trophy with S-Drive (8x12mm)
1 1 1011585 Carbon bruch set for CT transaxle
- 4 51035 Carbon brush screw cap for Schmid transaxle
2 1 1007947 Transaxle Schmid Trophy 3 and 4-wheel, Egis
2 1 1007961 Transaxle Trophy Alpine, Egis (max. 11 km/h)
2 1 1008565 Transaxle Trophy Alpine, S-Drive (max. 11 km/h)
2 1 1013184 Transaxle CT Trophy 3 and 4-wheel, S-Drive
3 4 00000.1703 Lock nut M10 D985
3 4 1013185 Lock nut low M10 D985
4 2 1005956 Hex. fl ange bolt M12x30 (torque 90Nm, use locktite 270)
5a 1 9000550 Rear wheel left side with brake drum, white rim and grey tyre
5b 1 9001996 Rear wheel left side with brake drum, grey rim and grey tyre
5c 1 1015104 Rear wheel left side with brake drum, grey rim and grey tyre with block profi le
5d 1 9007719 Rear wheel left side with brake drum, grey rim and black tyre
5e 1 9007723 Rear wheel left side with brake drum, grey rim and black tyre with block profi le
6a 1 9001172 Rear wheel left side standard, white rim and grey tyre
6b 1 9001998 Rear wheel left side standard, grey rim and grey tyre
6c 1 1015154 Rear wheel standard, grey rim and grey tyre with block profi le
6d 1 9007717 Rear wheel left side standard, grey rim and black tyre
6e 1 9007721 Rear wheel left side standard, grey rim and black tyre with block profi le
7a 1 9000549 Rear wheel right side with brake drum, white rim and grey tyre
7b 1 9001995 Rear wheel right side with brake drum, grey rim and grey tyre
7c 1 1015103 Rear wheel right side with brake drum, grey rim and grey tyre with block profi le
7d 1 9007720 Rear wheel right side with brake drum, grey rim and black tyre
7e 1 9007724
Rear wheel right side with brake drum, grey rim and black tyre with block
profi le
8a 1 9001173 Rear wheel right side standard, white rim and grey tyre
8b 1 9001997 Rear wheel right side standard, grey rim and grey tyre
