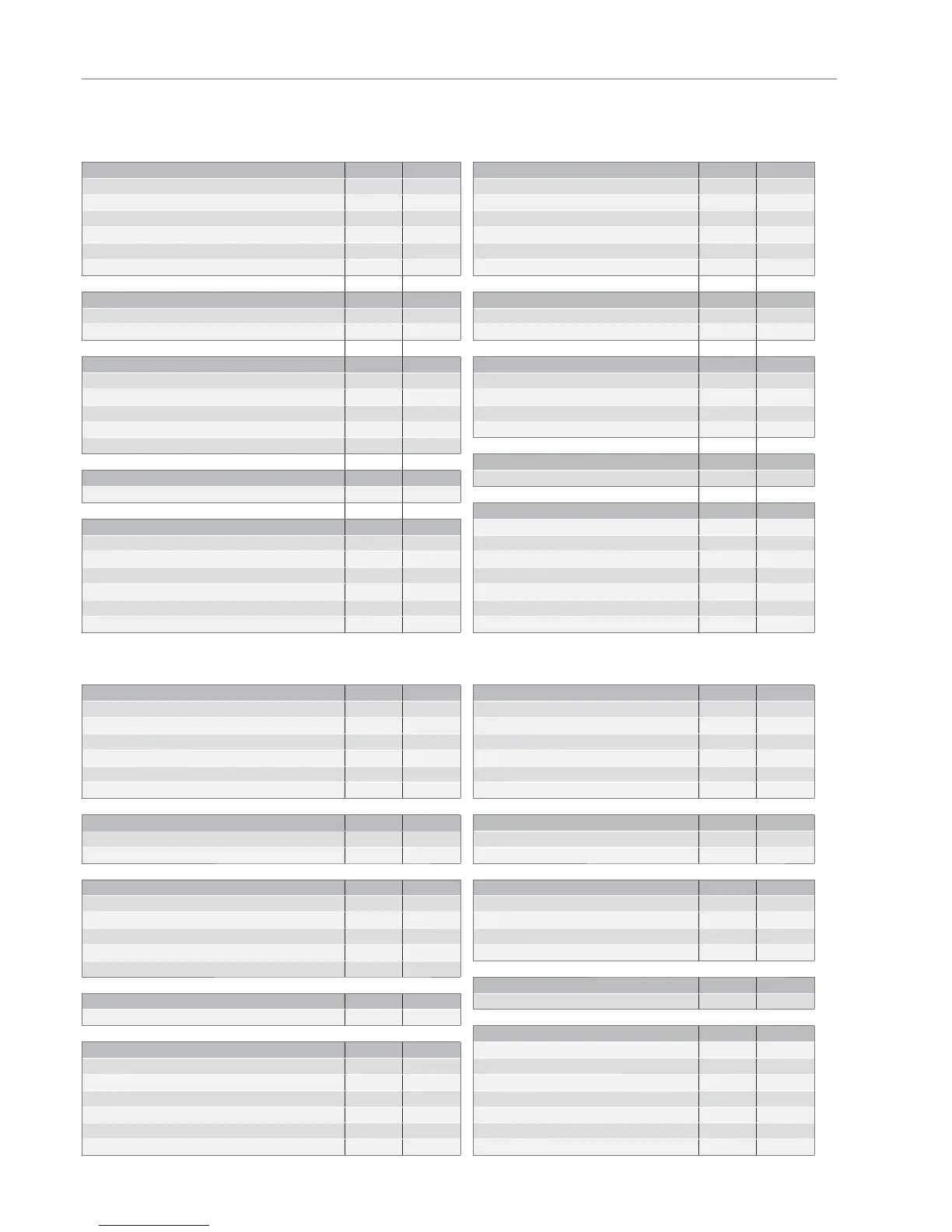

7.4 Controller settings PG Drives Egis
Trophy Egis 120, 15 km/h
Speed Settings Fast Slow Factory Settings Max Min
Forward Acceleration (0,1 Seconds) 25 25 Forward Acceleration (0,1 Seconds) 100 1
Forward Deceleration (0,1 Seconds) 13 13 Forward Deceleration (0,1 Seconds) 100 1
Reverse Acceleration (0,1 Seconds) 40 40 Reverse Acceleration (0,1 Seconds) 100 1
Reverse Deceleration (0,1 Seconds) 25 25 Reverse Deceleration (0,1 Seconds) 100 1
Forward Speed (%) 100 100 Forward Speed (%) 100 0
Reverse Speed (%) 50 50 Reverse Speed (%) 100 0
Operation Settings Advanced Settings
Sleep timer (minutes) 0 Profi le Top 40
Throttle Invert On Profi le Bottom 80
Battery Settings Throttle Settings
Low battery Flash Inhibit On Wig-Wag Throttle On
TruCharge Cable Resistance (milli-Ohms) 40 Throttle Deadband (%) 15
TruCahrge Calibration 97 Throttle Gain (%) 130
Max Charge Amps (0,1 Amps) 15 Iso Test On
Min Charge Amps (0,1 Amps) 0
Options Settings
Inhibit Settings Options Register 17
Inhibit Mode 1
Motor Settings
General Settings Current Limit Max (Amps) 110
Soft Stop On Curerent Foldback Time (Seconds) 15
Output Voltage (Volts) 24 Current Foldback Level (%) 50
Pulsed Reverse Alarm Off Hold Factor (%) 160
Brake Time (0,01 Seconds) 60 Bridge Hold Time (centi-Secs) 80
Freewheel Voltage 100 Motor Compensation (milli Ohms) 45
Freewheel Time-out (0,01 Seconds) 20
Trophy Egis 120, 15 km/h, foot throttle
Speed Settings Fast Slow Factory Settings Max Min
Forward Acceleration (0,1 Seconds) 25 25 Forward Acceleration (0,1 Seconds) 100 1
Forward Deceleration (0,1 Seconds) 13 13 Forward Deceleration (0,1 Seconds) 100 1
Reverse Acceleration (0,1 Seconds) 40 40 Reverse Acceleration (0,1 Seconds) 100 1
Reverse Deceleration (0,1 Seconds) 25 25 Reverse Deceleration (0,1 Seconds) 100 1
Forward Speed (%) 100 100 Forward Speed (%) 100 0
Reverse Speed (%) 40 40 Reverse Speed (%) 100 0
Operation Settings Advanced Settings
Sleep timer (minutes) 0 Profi le Top 40
Throttle Invert Off Profi le Bottom 80
Battery Settings Throttle Settings
Low battery Flash Inhibit On Wig-Wag Throttle Off
TruCharge Cable Resistance (milli-Ohms) 40 Throttle Deadband (%) 15
TruCahrge Calibration 97 Throttle Gain (%) 120
Max Charge Amps (0,1 Amps) 15 Iso Test On
Min Charge Amps (0,1 Amps) 0
Options Settings
Inhibit Settings Options Register 17
Inhibit Mode 1
Motor Settings
General Settings Current Limit Max (Amps) 110
Soft Stop On Curerent Foldback Time (Seconds) 15
Output Voltage (Volts) 24 Current Foldback Level (%) 50
Pulsed Reverse Alarm Off Hold Factor (%) 156
Brake Time (0,01 Seconds) 60 Bridge Hold Time (centi-Secs) 80
Freewheel Voltage 100 Motor Compensation (milli Ohms) 45
Freewheel Time-out (0,01 Seconds) 20
