16 | Spare parts Trophy

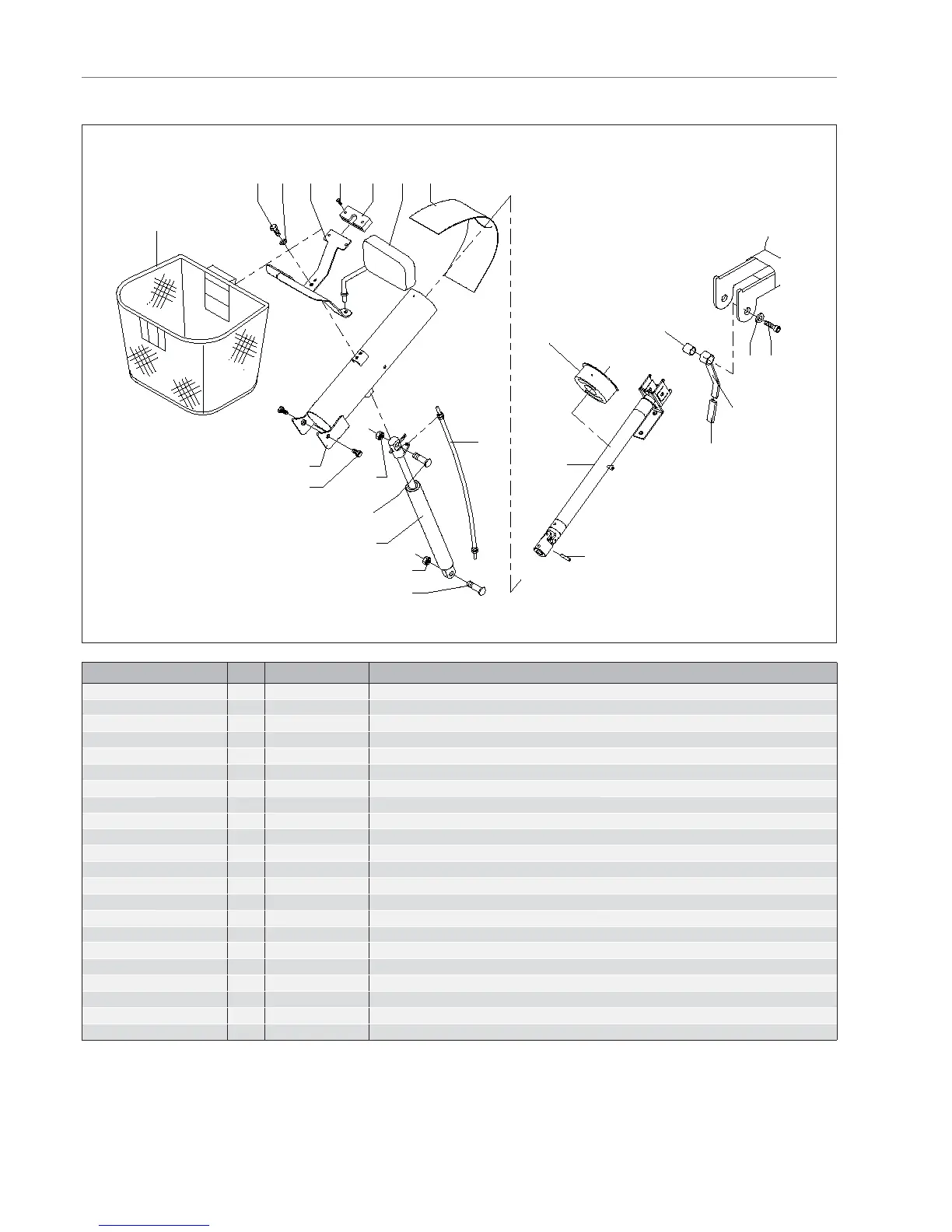

04 Steering column, mirror and basket
Pos Qty Article number Description
16
15
222119 201817
11
13
14
9
12
11
10
8
3
5
4
21
6
7
10
1 1 00000.4041 Allen bolt M8x55
2 1 00000.2203 Spring washer M8
3 1 9000019 Spacing bush
4 1 9000648 Handle, steering adjustment
5 1 9000781 Cap, steering adjustment handle
6 1 00001.0804 Rolled pin 6x30
7 1 9001095 Steering column adjustment tube
8 1 1008573 Nylon bushing, steering column
9 1 9000610 Control cable, gas spring for steering adjustment
10 2 9000826 Shoulder bolt, gas spring
11 2 00000.1701 Lock nut M6
12 1 9000684 Gas spring, steering adjustment inc. operating mechanism
13 2 00000.4312 Hex Bolt M8x16
14 1 9000435 Cylinder, steering column
15 1 9001135 Basket, front side
16 2 00000.4307 Hex bolt M6x12
17 2 00000.2202 Spring washer M6
18 1 9000732 Support
19 2 00000.3612 Screw M4x10
20 1 9000704 Basket holder
21 1 1010832 Mirror, black (left side)
22 1 9000601 Cover plate, steering adjustment
