Handicare Trophy - Technical Specifications

Spare parts | 25
Trophy

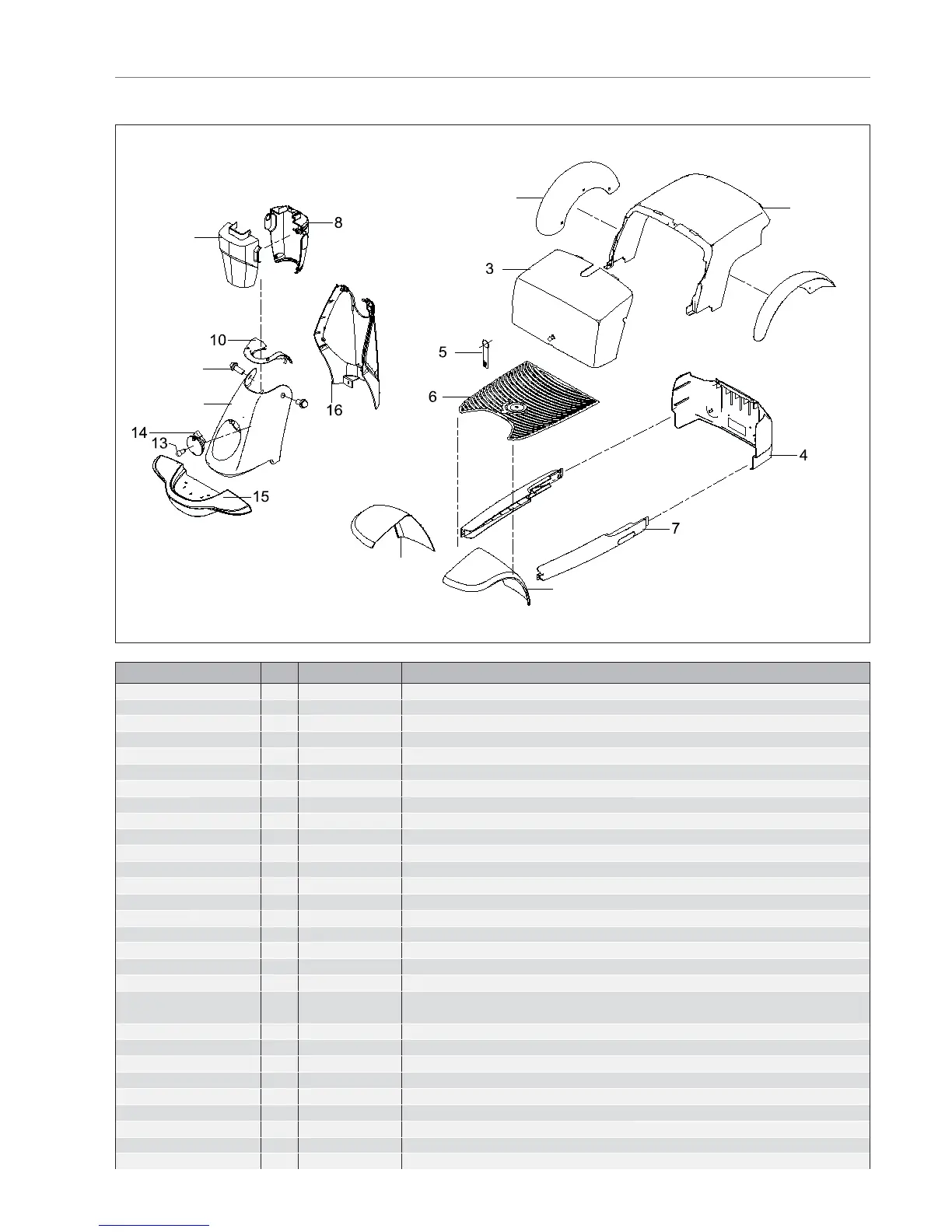

09 Covers Trophy 4W
Pos Qty Article number Description
1a,b,c,d,e
18a,b,c,d,e
17a,b,c,d,e
2a,b,c,d,e
9a,b,c,d,e
12a,b,c,d,e
11a,b
1a 2 1001905 Mudguard Red metallic
1b 2 1015765 Mudguard Moonstone blue metallic
1c 2 1015770 Mudguard Sparkling champagne metallic
1d 2 1015775 Mudguard Platinum white metallic
1e 2 1015780 Mudguard Graphite black metallic
2a 1 1007754 Rear cover assy Red metallic
2b 1 1015760 Rear cover assy Moonstone blue metallic
2c 1 1015761 Rear cover assy Sparkling champagne metallic
2d 1 1015762 Rear cover assy Platinum white metallic
2e 1 1015763 Rear cover assy Graphite black metallic
3 1 1007757 Battery cover assy
4 1 1007755 Rear bumper assy
5 1 1001276 Rubber strap, battery cover
6 1 9002230 Plateau mat
7 2 1007756 Side skirt assy (not available. See 1009940)
7 1 1009940 Side skirt assy black, set (replacement set)
8 1 9006856 Rear cover, steering column black > 31-10-2011
8 1 9006997 Rear cover, steering column black. with hole for switch > 31-10-2011
8 1 9006998 Ignition lock / tiller cover bottom, replacement set, Trophy < 01-11-2011
8 1 9006999
Ignition lock / tiller cover bottom with switch hole, replacement set, Trophy <
01-11-2011
9a 1 1001895 Front cover, steering column Red metallic
9b 1 1015766 Front cover, steering column Moonstone blue metallic
9c 1 1015771 Front cover, steering column Sparkling champagne metallic
9d 1 1015776 Front cover, steering column Platinum white metallic
9e 1 1015781 Front cover, steering column Graphite black metallic
10 1 9000486 Front cover, front portion
11a 2 9000543 Indicator light 12V for originial electronics (ID-no < QT02400)
11b 2 9007552 Indicator light 24V for advanced electronics (ID-no > QT02400)
- 2 9002236 Foam ring for indicator
