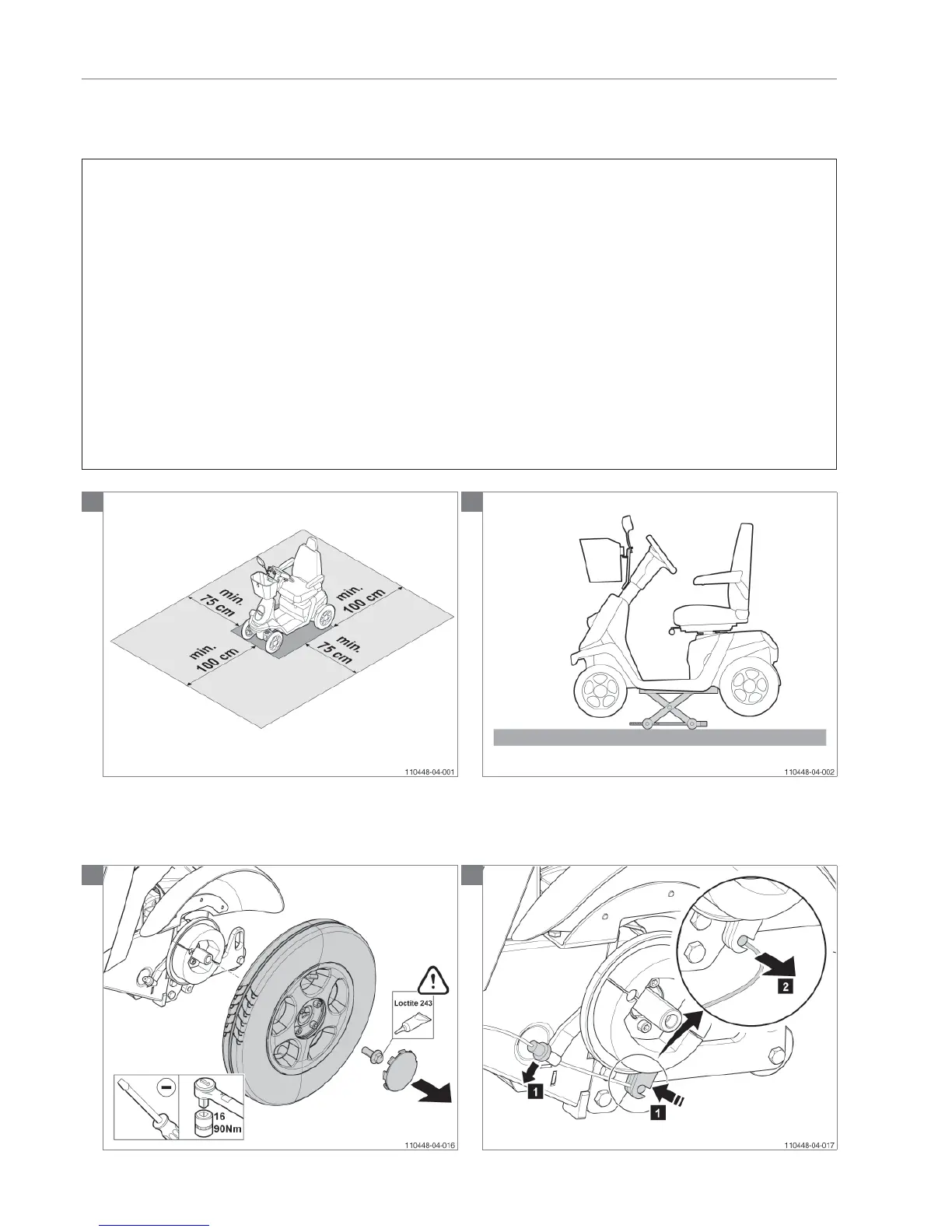

Replacing the mechanical brake
Preparation
• Switch off the scooter with the ignition key.
• Use a lifting device to raise the scooter clear of the
ground.
Instructions
The following operations are required to replace the
mechanical brake:
Note! Suitable work area required!
• Remove the cap and hexagon fl ange bolt to remove the
rear wheel.
• Remove the brake cable.
• Remove the two hexagon head cap screw and remove
the brake.
• Mount the new brake.
• Rebuild the scooter in the reverse order.
• Use Loctite 243 before fastening the hexagon fl ange bolt
with 90 Nm.
Relevant article numbers
• 1002576 Brake right
• 1002577 Brake left
Tools used
• Screwdriver
• Torque wrench, socket, 16 mm
• Allen key, 5 mm
• Loctite 243
Notice
• N.a.
1 2
3
Note! Use Loctite 243 at the indicated locations during
assembling the scooter.
4
