Replacing the shock absorber - front
Preparation
• Switch off the scooter with the ignition key.
• Use a lifting device to raise the scooter clear of the
ground.
Instructions
The following operations are required to replace the shock
absorber - front:

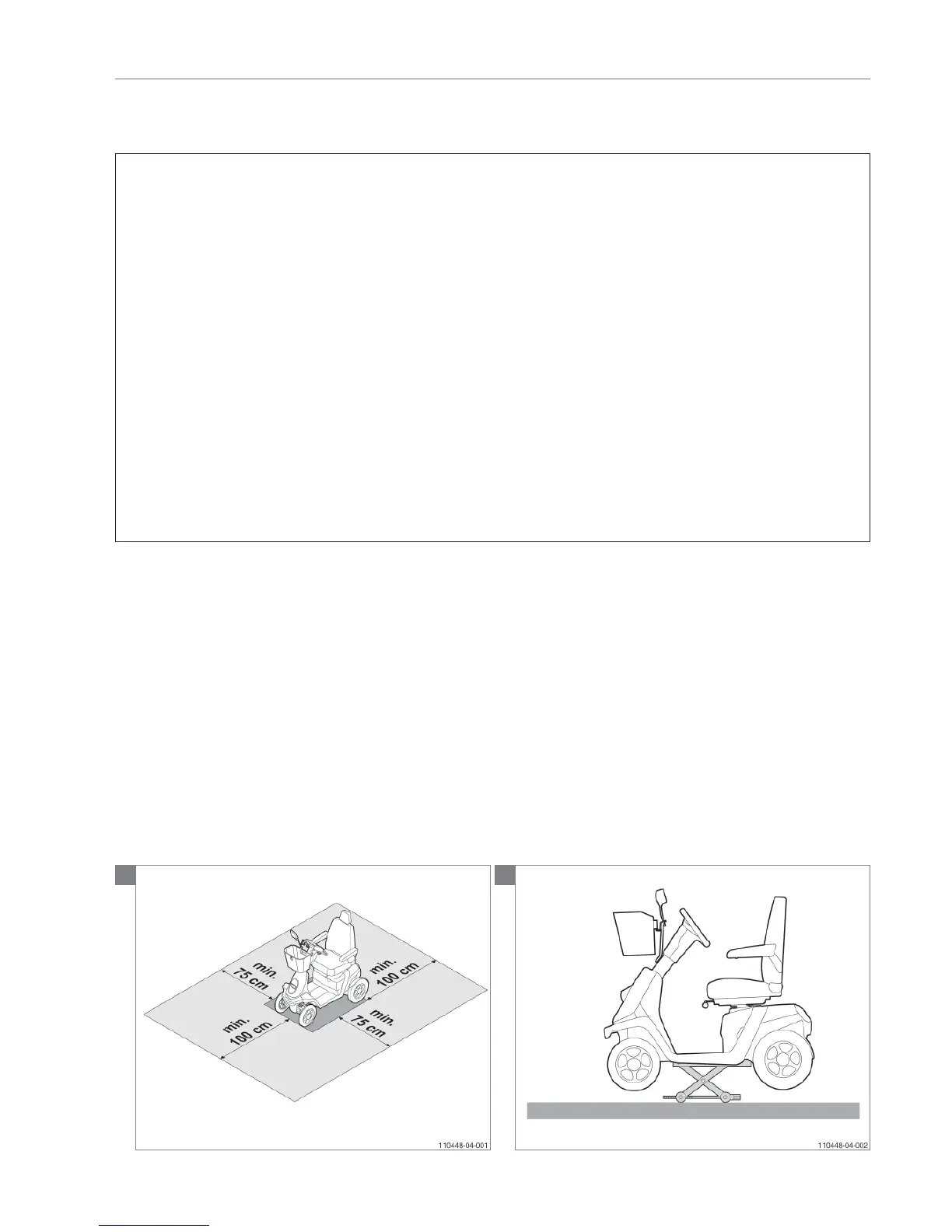

Note! Suitable work area required!
• Remove the basket, the front tiller cover, the mounting
bracket for the mirrors, the front cover, the front spoiler,
the front cover rear part, the front fender L/R, the front
cover bottom and the front bumper.
• Remove the Allen hexagon screws and locknut form the
shock absorbers on the swing arm top and lower assy.
• Remove shock absorber
• Adjust the new shock absorber according the
specifi cations.
• Replace the new and adjusted shock absorber.
• Rebuild the scooter in the reverse order.
• Note! Be sure you fasten all bolts and nuts with the
correct torque!
Relevant article numbers
• 9001641 Shock absorber - front
Tools used
• Torque wrench, socket,17 mm
• Socket, 7 mm
• Screwdriver, crosshead
• Allen key, 8 mm
• 9000825 Suspension adjustment key
Notice
• Position 0 soft and position 4 hard
