Replacing the swing arms (top and lower assy)
Preparation
• Switch off the scooter with the ignition key.
• Use a lifting device to raise the scooter clear of the
ground.
Instructions

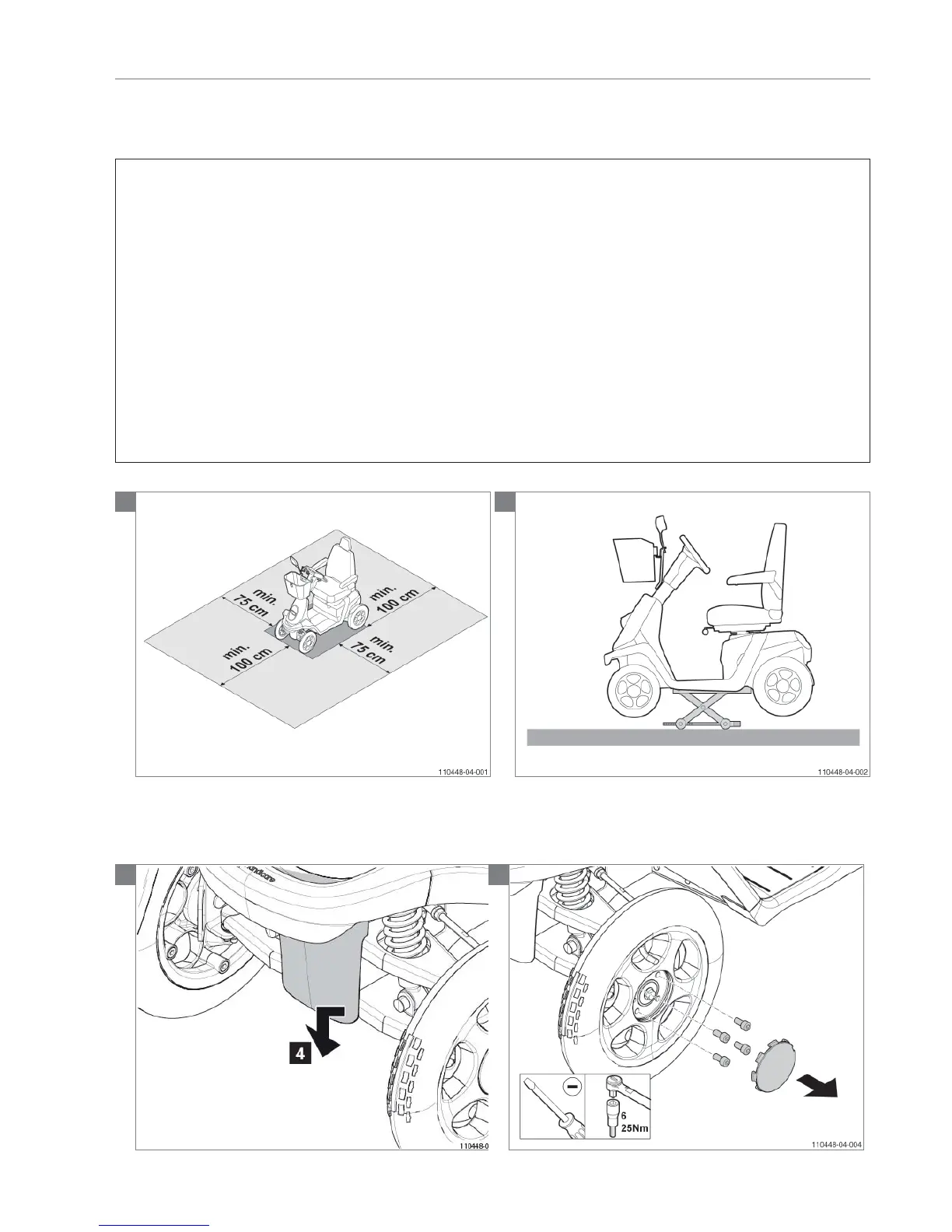

The following operations are required to replace the swing
arms:
Note! Suitable work area required!
• Remove the front spoiler.
• Remove the cover and the hexagon bolt to remove the
front wheel.
• Remove the hexagon screw from the lower swing arm.
• Remove the two axle suspension parallel bolts.
• Remove the lock nut at the wheel side of the swing arm
and turn the swing arm out of its position.
• Replace the new swing arm.
• Rebuild the scooter in the reverse order.
Relevant article numbers
• 9002091 Swing arm lower assy
• 9002090 Swing arm top assy
Tools used
• Torque wrench, socket, 7 mm-13 mm / socket bit, 6 mm
• Torque wrench, socket, 17 mm
• Allen key, 8 mm
• Screwdriver
• Open ended spanner, 10 mm
Notice
• N.a.
