Trophy50 | Service instructions 50 | Service instructions
Replacing the motor brake
Preparation
• Switch off the scooter with the ignition key.
• Disconnect the batteries.

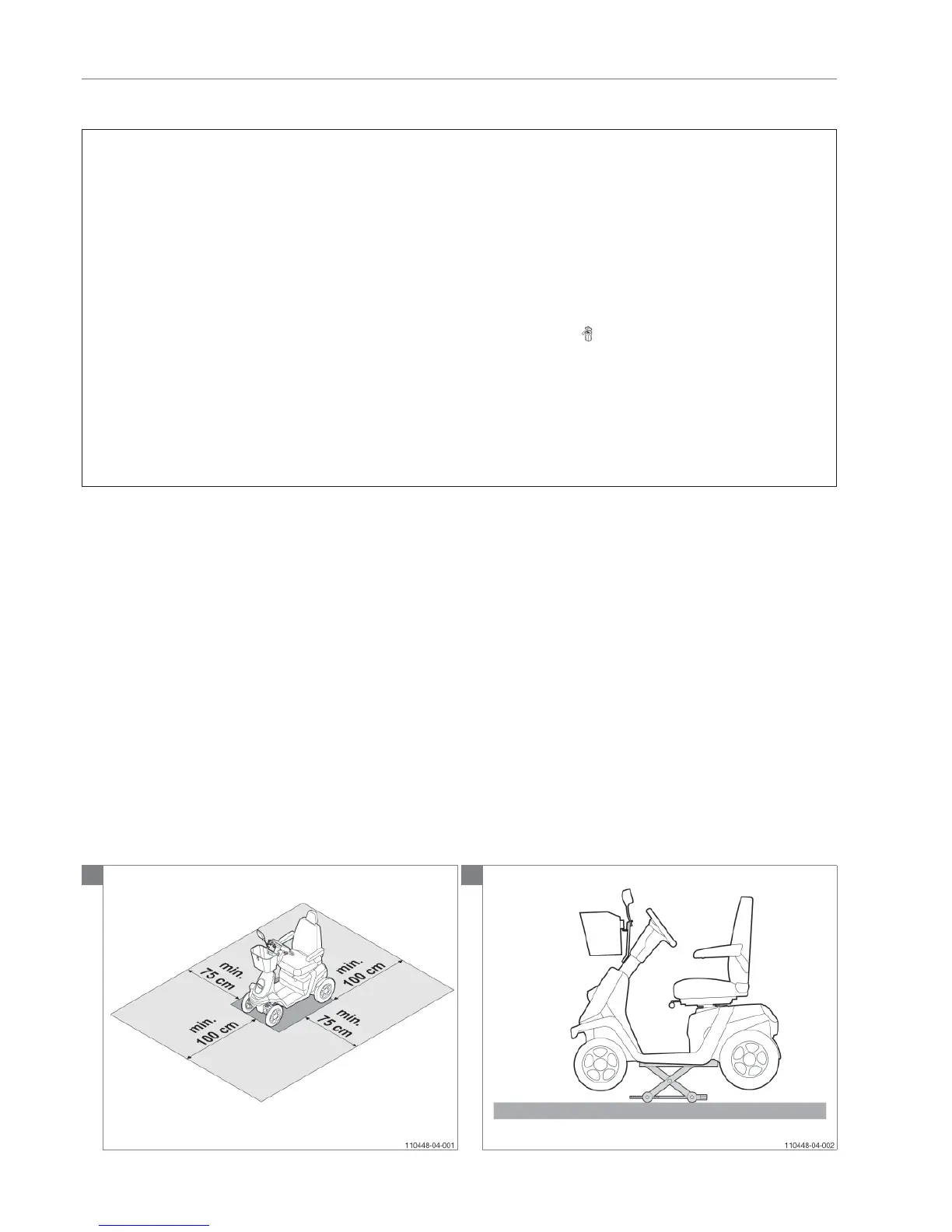

• Use a Lifting device to raise the scooter clear of the
ground.
Instructions
The following operations are required to replace the free
wheel lever:
Note! Suitable work area required!
• Remove the rear cover.
• Disconnect all motor connectors from the S-drive
controller and the speed sensor cable.
• Lock the freewheel lever.
• Remove the four hexagon bolts and remove the motor
cover.
• Remove the hexagon screws and remove the free wheel
lever.
• Mount the new free wheel lever.
• Rebuild the scooter in the reverse order.
Relevant article numbers
• 1003225 Motor brake Egis
• 9003243 Motor brake S-drive
• 1012104 Motor brake for CT transaxle
Tools used
• Screwdriver
• Socket, 7 mm
• Allen key, 4 mm
Notice
• Some parts need to be replaced; the replacement is
indicated by a
symbol.
• Make sure the scooter is switched off.
1
2
