Trophy52 | Service instructions 52 | Service instructions
Replacing the transaxle
Preparation
• Switch off the scooter with the ignition key.
• Disconnect the batteries.
• Use a lifting device to raise the scooter clear of the
ground.
Instructions
The following operations are required to replace the
transaxle:

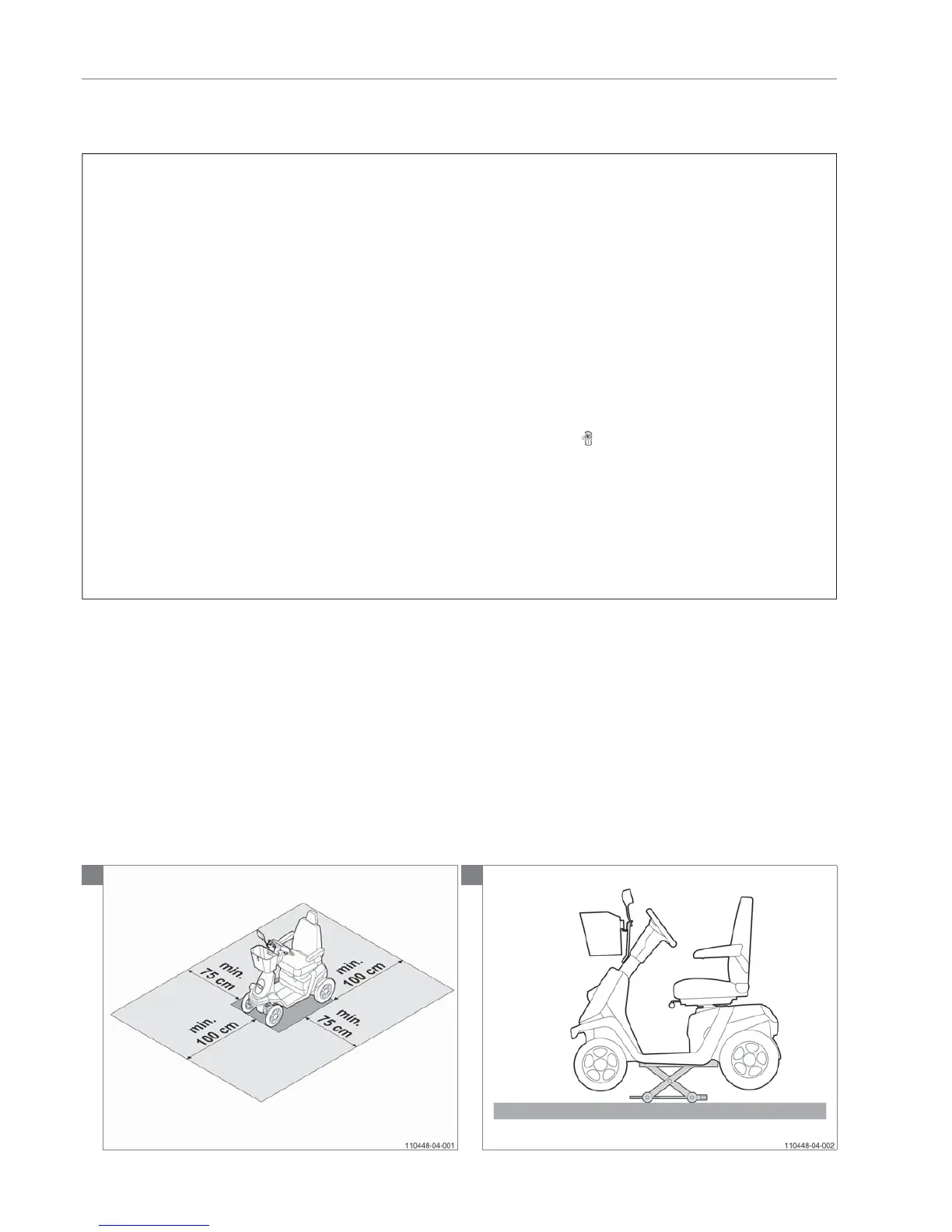

Note! Suitable work area required!
• Remove the rear cover.
• Disconnect all motor connectors from the S-drive
controller and the speed sensor cable..
• Lock the freewheel lever.
• Remove the cover and hexagon fl ange bolt to remove
the rear wheel.
• Remove the brake cable
• Remove the two hexagon head cap screws to remove
the brake mounting, key and brake.
• Remove the four lock nuts and remove the transaxle and
rubber mounting strips.
• Mount the new the transaxle.
• Rebuild the scooter in the reverse order.
• Use Loctite 243 before fastening the hexagon fl ange bolt
with 90 Nm.
Relevant article numbers
• 1007947 Transaxle Schmid Trophy 3 and 4 wheel, Egis
• 1007961 Transaxle Trophy Alpine, Egis (max 11 km/h)
• 1008565 Transaxle Trophy Alpine, S-Drive (max 11
km/h)
• 1013184 Transaxle CT Trophy 3 and 4- wheel, S-Drive
Tools used
• Socket, 7 mm
• Socket, 17 mm
• Torque wrench, socket, 16 mm
• Screwdriver
• Allen key, 4 mm
• Loctite 243
Notice
• Some parts need to be replaced; the replacement is
indicated by a
symbol.
• Make sure the scooter is switched off.
1
2
