Trophy56 | Service instructions 56 | Service instructions
Replacing the shock absorber - rear
Preparation
• Switch off the scooter with the ignition key.
Instructions
The following operations are required to replace the shock
absorber - rear:

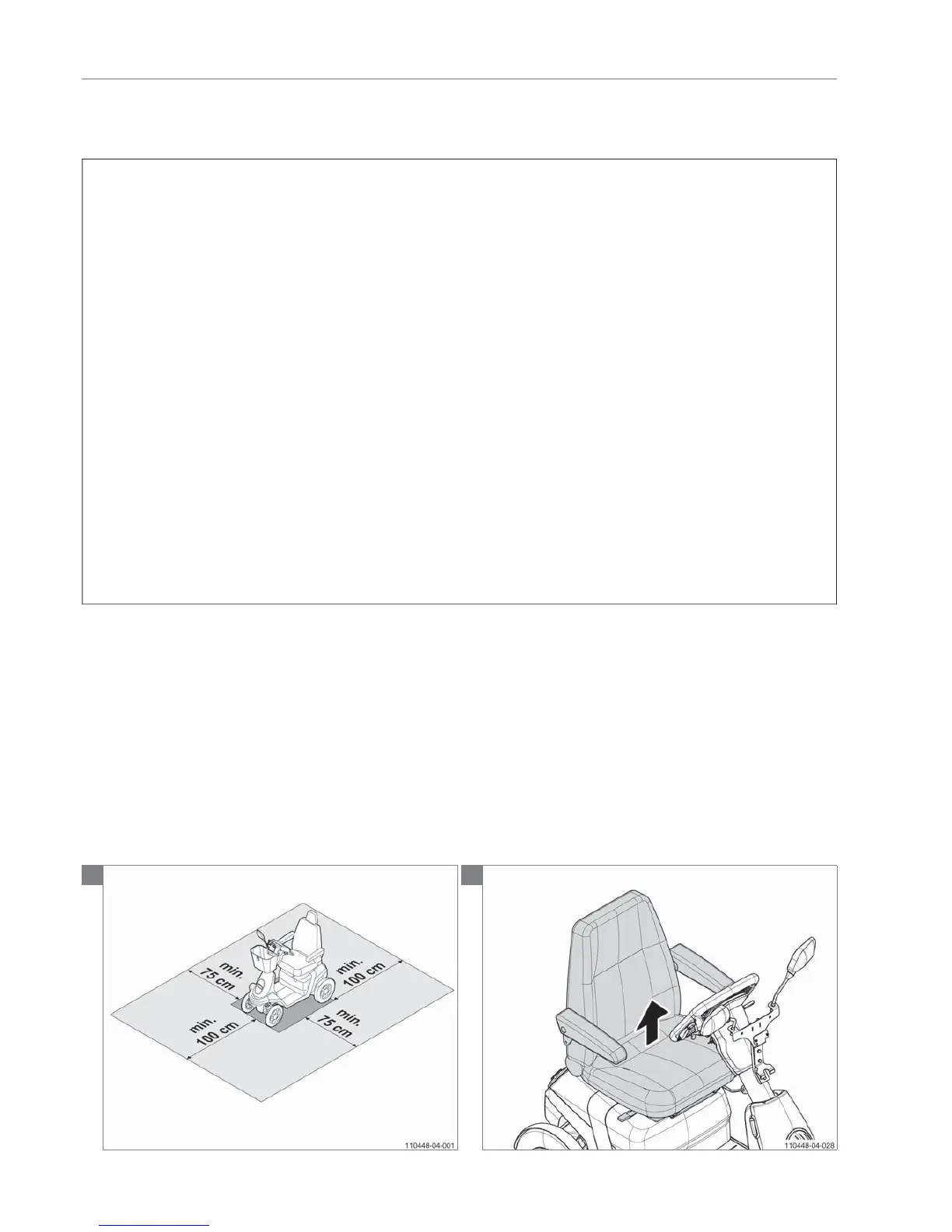

Note! Suitable work area required!
• Remove the seat.
• Lift the scooter to raise the wheels clear from the
ground.
• Remove the rear cover.
• Remove the battery cover.
• Remove the bolts of the rollbar 6x
• Remove the roll-bar
• Remove the hexagon head cap screw
• Take out the shock absorber.
• Read the table for more information about the
adjustment of shock absorbers.
• Use the special adjustment tool to adjust the shock
absorber as desired.
• Mount the new, correct adjusted, shock absorber.
• Rebuild the scooter in the reverse order.
Relevant article numbers
• 9000603 Shock absorber standard
• 9000683 Shock absorber heavy duty
Tools used
• Socket, 7 mm / 17 mm
• Allen key, 8 mm
• 9000825 Suspension adjustment key
Notice
• Make sure the scooter is switched off.
1 2
