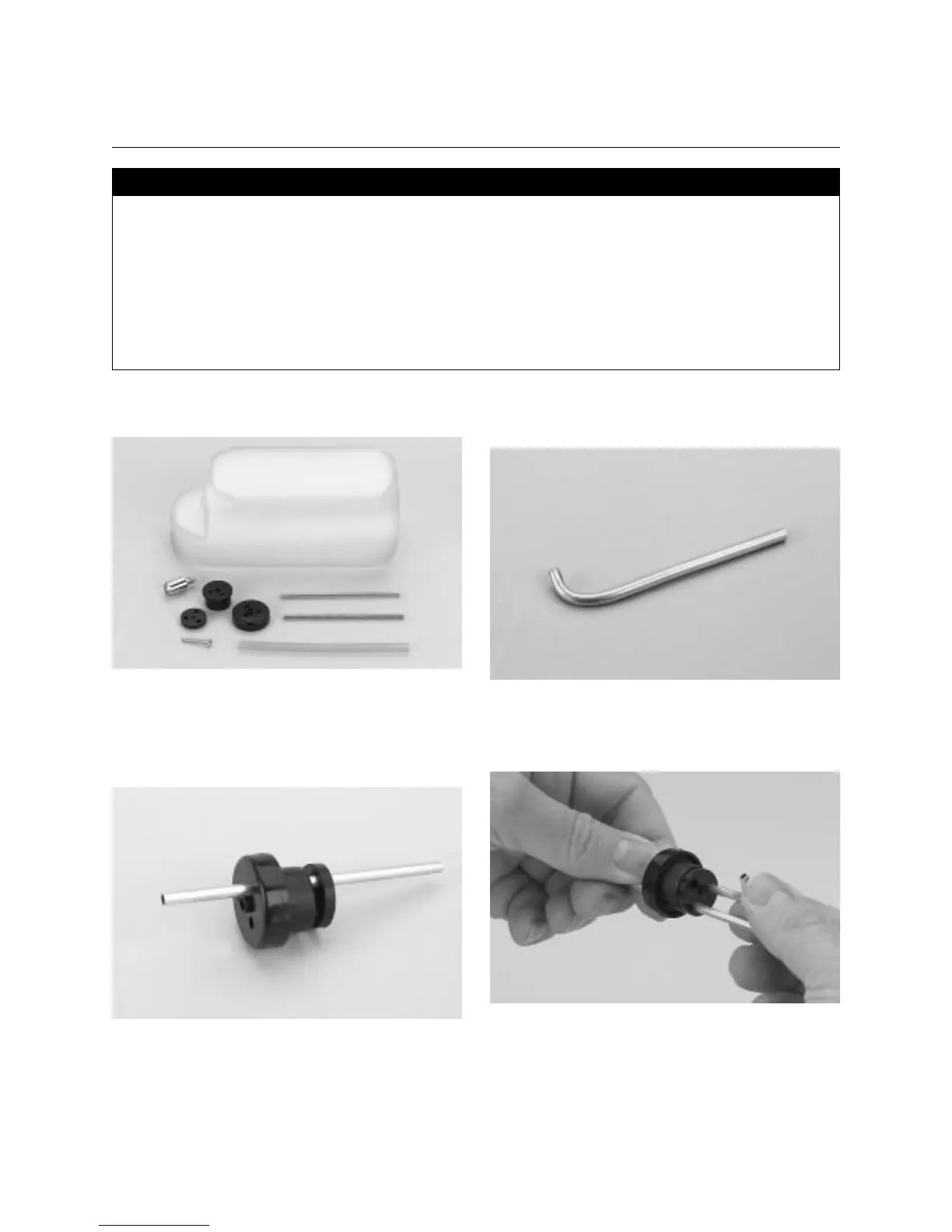

Step 1. Locate the fuel tank parts.
Step 2. Locate the black rubber stopper. Insert one brass tube
into one of the open holes in the stopper so an equal amount of
tube extends from each side. This tube will be the fuel tank
pickup tube that provides fuel to the engine.
Step 3. Locate the other brass tube and bend it using your
fingers as shown. This tube will be the fuel tank vent tube.
Step 4. Slide the vent tube into the other open hole of the
stopper as shown.
• Brass clunk (fuel pickup)
• Brass tube, long (vent)
• Brass tube, long (pickup)
• Fuel tubing, small
• Fuel tank
• Plastic cap (2)
• Rubber stopper
• 3mm screw
• Hobby knife with #11 blade
• Small Phillips screwdriver
Parts Needed Tools and Adhesives Needed
Section 13: Assembling and Installing
the Fuel Tank
