Charger：

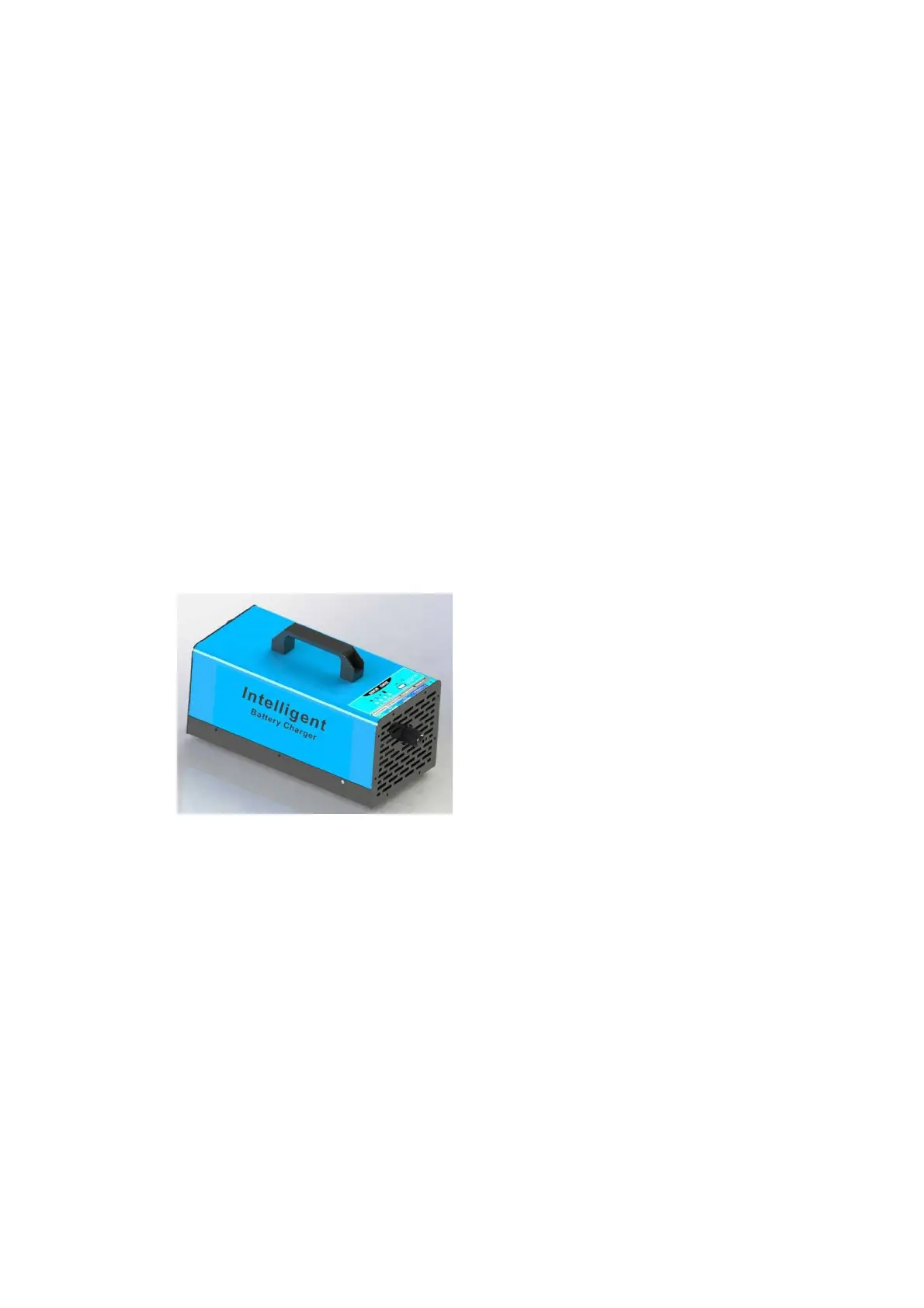

Storage battery of this truck equips with PCA Automatic Charger Operation Instruction.
1． The charger is automatic high frequency charger. The capacity voltage is 220V AC. The
input current is not less than 15A. The output voltage is DC 36V. Maximum charge current is
35A. The total charge procedure is automatic. For more information please refer to charger
manual.
2． Connection with earth wire for using.
3． When replace the fuse, first plug out the plug.
4． Non-specialized person can’t open the hood to check or repair.
5． Do not rebuild or disassembly charger.
6． Prevent charger overheat in high temperature seasons, that will hurt charger, if necessary
can pause charge.
If you don’t want use automatic option, you should adjust the charge current, charge voltage,
charge time and etc. manually. And you should measure the specific gravity of electrolyte on time
to assure the battery can be charge at best state. To adjust the parameter of charger, please see
the following battery charging.
Lithium battery charging
Model-type: SPC-24100
Input: AC186～260V/50-60Hz/20A
Output: DC29.2/100A
Safety precautions before charging:
Please choose to charge in a relatively safe environment (such as to avoid liquid, fire and
other environment).
The necessary extinguisher (yellow sand and powder fire extinguisher) should be equipped
around the charger so that emergency extinguishing can be carried out under extreme
conditions.
Before charging, confirm that there is no dust, water and other foreign objects in the charging
gun and charging socket. If there is any foreign matter, it should be cleaned before it can be
charged. Otherwise, the charging gun and charging stand may not be well-connected to
cause heat or even fire.
Do not modify or disassemble the charging port and charging equipment, which may result in
charging failure and fire.
After the charging is finished, do not disconnect the charging device when it is wet or standing
