4 - System setup
4.93

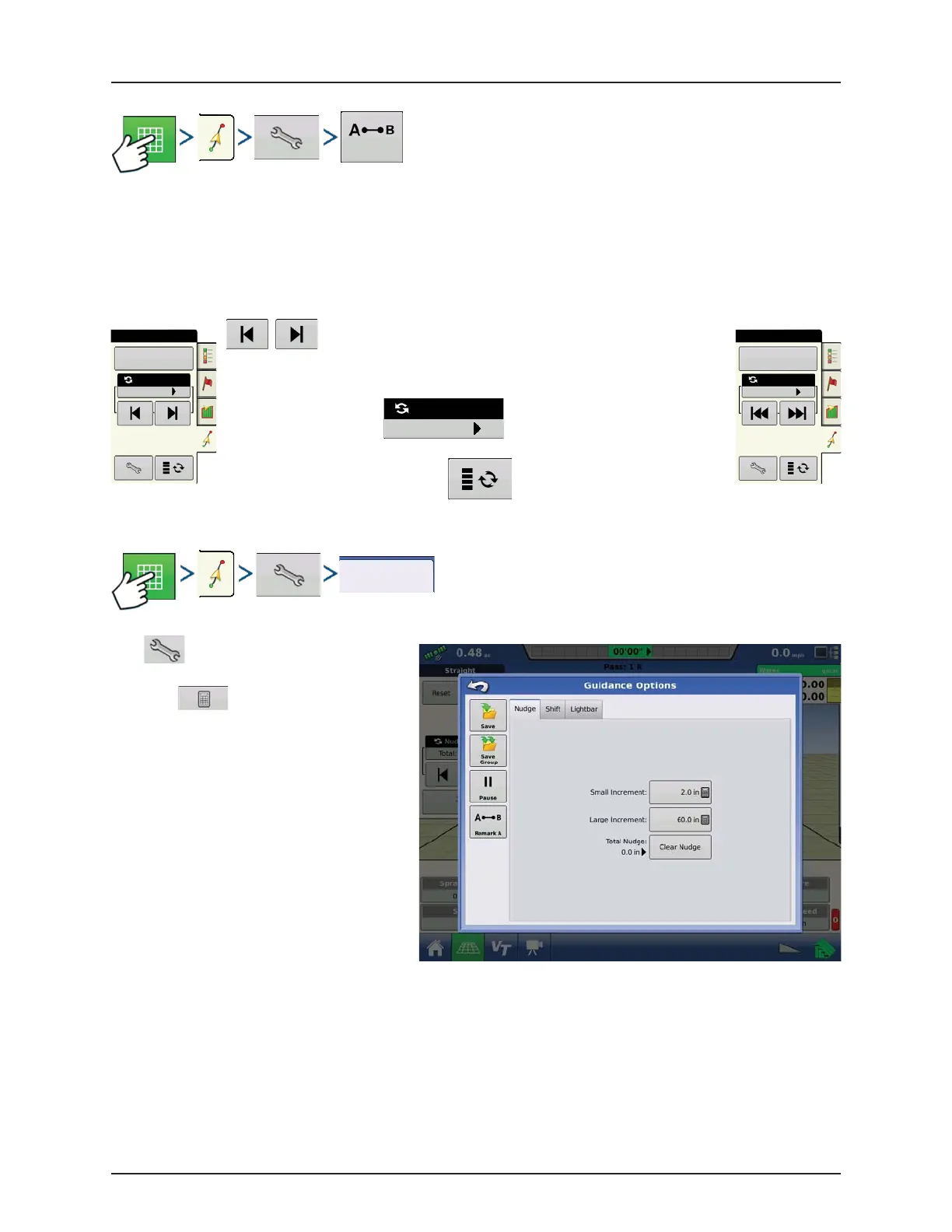

Remark A
If you chose Straight pattern, the Remark A button appears on the Guidance Options screen. The Remark A button "re-
marks" the A point by moving it to the current position while maintaining the same heading. A brief message appears in the
on-screen lightbar, stating "Point A Remarked."
Nudge
÷
NOTE! Only Straight patterns offer two Nudge settings. All other patterns have a single nudge setting.
Nudge allows you to adjust the swaths by a specified distance.
Small Nudge (single arrow) shown on left.
Large Nudge setting (double arrow) shown on right (Straight Patterns Only).
Use Nudge toggle button to switch between Small and Large
Nudge setting.
Use Mapping Toolbox toggle button to switch the menu between
Tramline and Nudge on the Mapping Toolbox, if Tramlines are enabled.
Press button then the Nudge tab to make
adjustments to Nudge settings.
• Press to enter a distance for
increment that the swaths will move with
each successive press of the left or right
arrows buttons on the Guidance Tab.
• To clear out the adjustment and go to the
original position, press Clear Nudge.
Screen shows Small and Large increment settings
for Straight path. Other Patterns will only show the
small increment setting.
Remark A
Reset
Nudge: 30 in
Total: 0 in
Straight
Reset
Nudge: 90 in
Total: 0 in
Straight
Nudge: 30 in
Total: 0 in
Nudge
