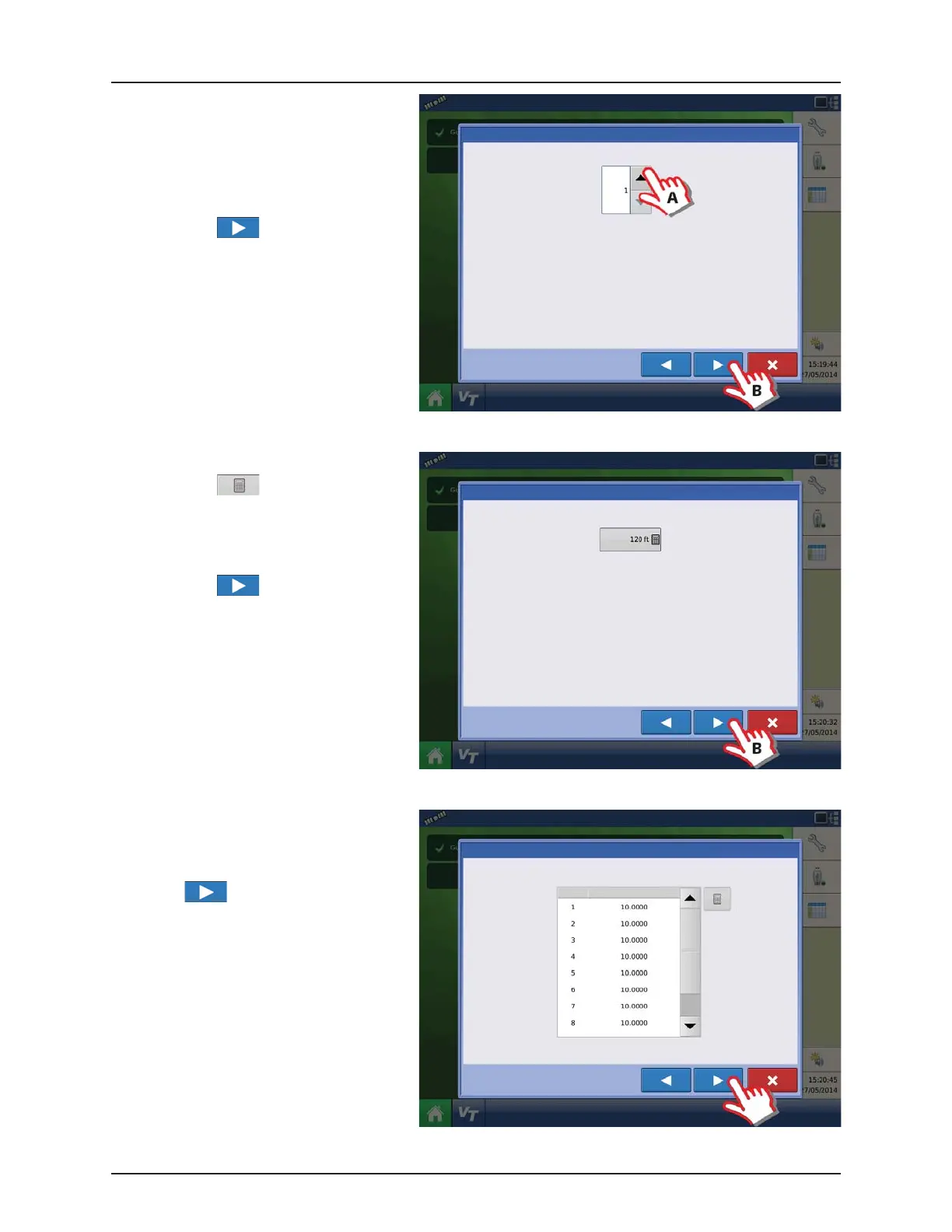

16. Enter Number of Boom Sections:
A. Press the arrows to set number of
sections on the sprayer.
ATTENTION! This value must be the same as
typed in the HARDI® VT menu 3.3.3
B. Press to confirm selection.
17. Enter Full Swath (Boom) Width:
A. Press to type in the value.
ATTENTION! If the value is not the same as in
the HARDI® VT menu 3.3.1 an ISOBUS
warning will appear.
B. Press to confirm selection.
18. Edit Boom Section Widths from Left to Right:
÷
NOTE! If number of sections and boom
widths (swath widths) are already correct,
press to confirm selection. Then skip
to step 22.
ATTENTION! These values must be the same
as typed in the HARDI® VT menu 3.3.3.1 to
3.3.3.x
Equipment Setup Wizard: Section Count
Enter Number of Boom Sections
TIP: DO NOT enter the number of individual rows. For most
implements, enter the number of swath sections that can be
independently turned on and off.
Equipment Setup Wizard: Swath Width
Enter Full Swath Width
TIP: For tillage implements, enter the working swath width
(actual implement width minus the typical overlap). This
results in a more accurate area calculation.
Equipment Setup Wizard: Section Configuration
Enter Boom Section Widths from Left to Right
Section Swath Width (ft)
TIP: The implement is divided into equal section sizes by default. To
modify the sections, press the keypad button for each section that
needs to be changed.
To Next Page
