MACHINE DIMENSIONS
T-42 AND T-42 BIG-BORE LATHES
1-2 M-507C

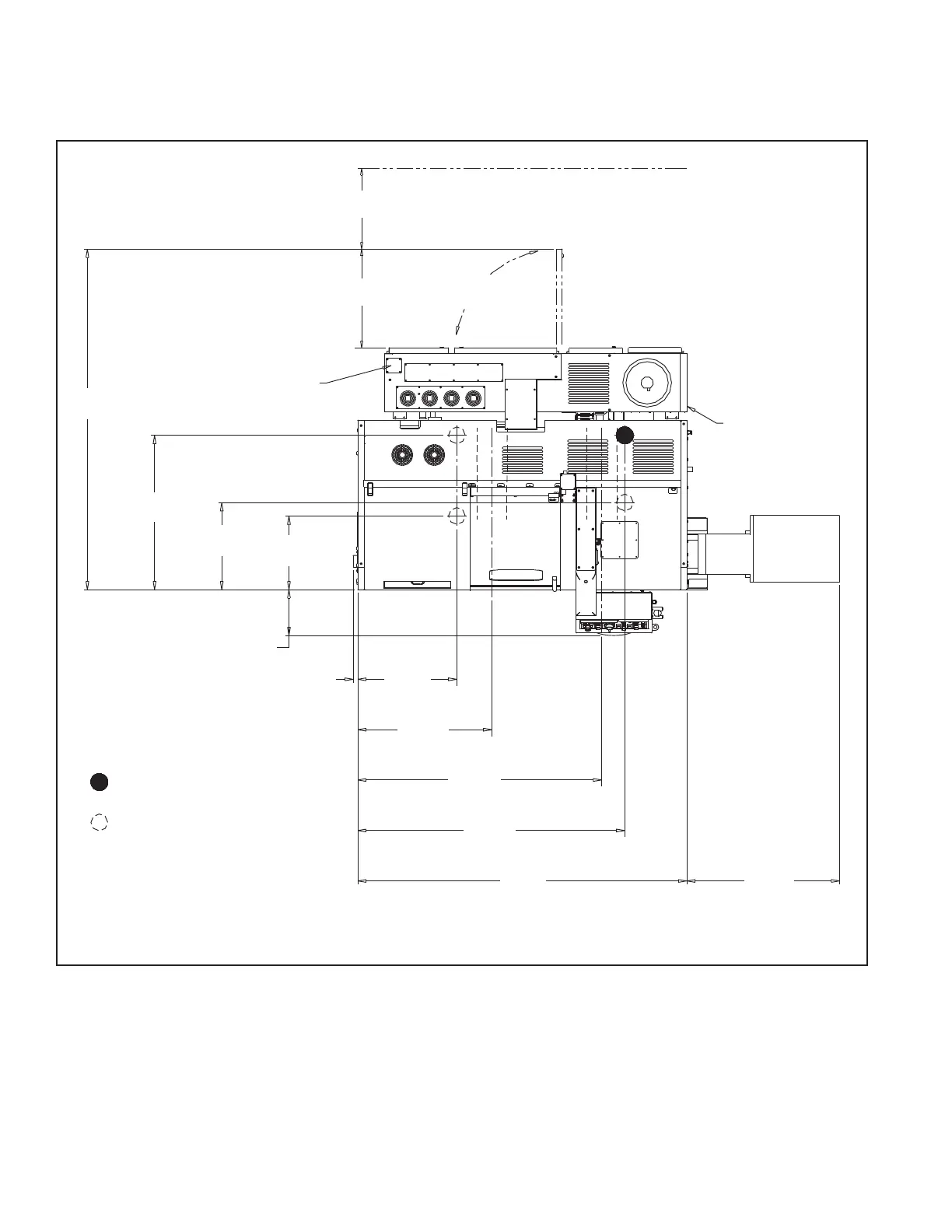

Figure 1.1 - Machine Dimensions and Support Feet Locations: T-42 Lathe
TI5696E
101.4
[2576]
21.9
[557]
30.0
[762]
43.5
[1106]
Provide Clearance for
Power Case Door Swing
Note: Dimensions are Inches [Millimeters]
Optional
Chip Conveyor
46.0
[1168]
25.9
[658]
98.0
[2488]
72.6
[1844]
80.0
[2031]
Adjustable Foot
Non-Adjustable Feet
13.7 [348]
Main Power Entrance
39.9
[1015]
Lift Slot
Lift Slot
1.4 [35]
Main Air Connection
(at bottom of platform)
29.4
[747]
24.0
[610]
Minimum Recommended Space to Allow
Power Case Platform to be Moved to Perform
Service at the Back of the Machine.
