HYDRAULIC SYSTEM
- NOTE -
The hydraulic tank must be full to minimize condensation in the tank during
storage.
It is recommended that the hydraulic oil be pre-filtered to 5 micron maximum
particle size before being added to the hydraulic system.
- WARNING -
Spilling fluid on the floor can create a slipping hazard. Spilled fluid must be
cleaned up immediately.
- CAUTION -
Use only Mobil DTE 10 EXCEL 32 oil in the hydraulic unit.
1. Verify the machine is powered down.
2. Release latch "J", Figure 2.8, and open the access doors.
3. Clean filler cap “G”, Figure 2.30, and the area around the filler cap.
4. Remove the filler cap and slowly fill the tank with the correct hydraulic oil until sight gauge "H" is
filled.
5. Replace the filler cap.
M-507C 2-21

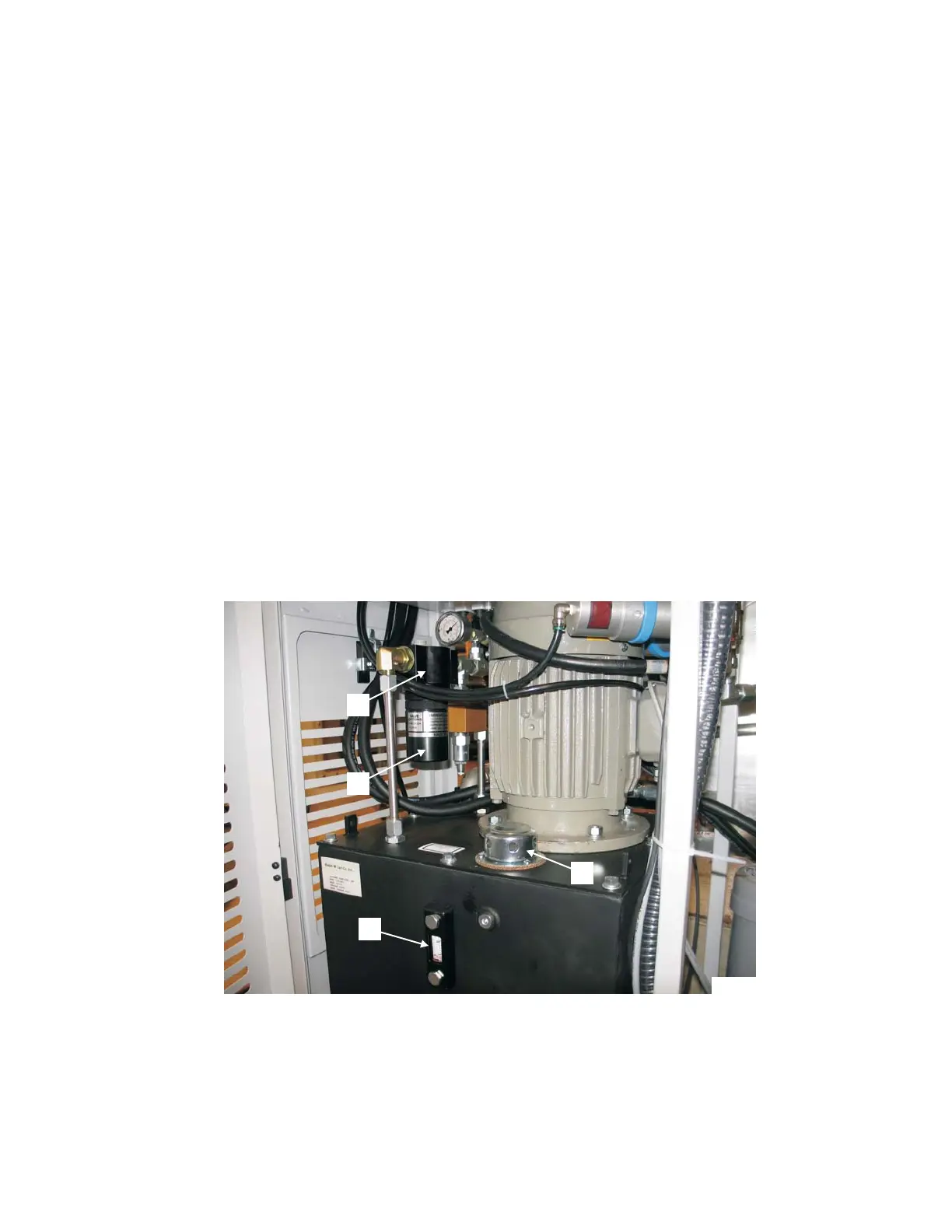

Figure 2.30 - Hydraulic Power Unit
TP8064
E
F
G
H
