REMOVING THE PENDANT SHIPPING BRACKET
1. Remove the screws connecting bracket "A", Figure 1.6, to the top of the machine.
2. Swing the control pendant out to access the screws holding the bracket to the pendant.
3. Remove the screws to release the bracket from the pendant.
4. Install all screws back in location to seal the holes.
REMOVING THE GUARD DOOR SHIPPING BRACKET (T-51 AND T-65 LATHES)
Remove guard door shipping bracket "B", Figure 1.7.
M-507C 1-9

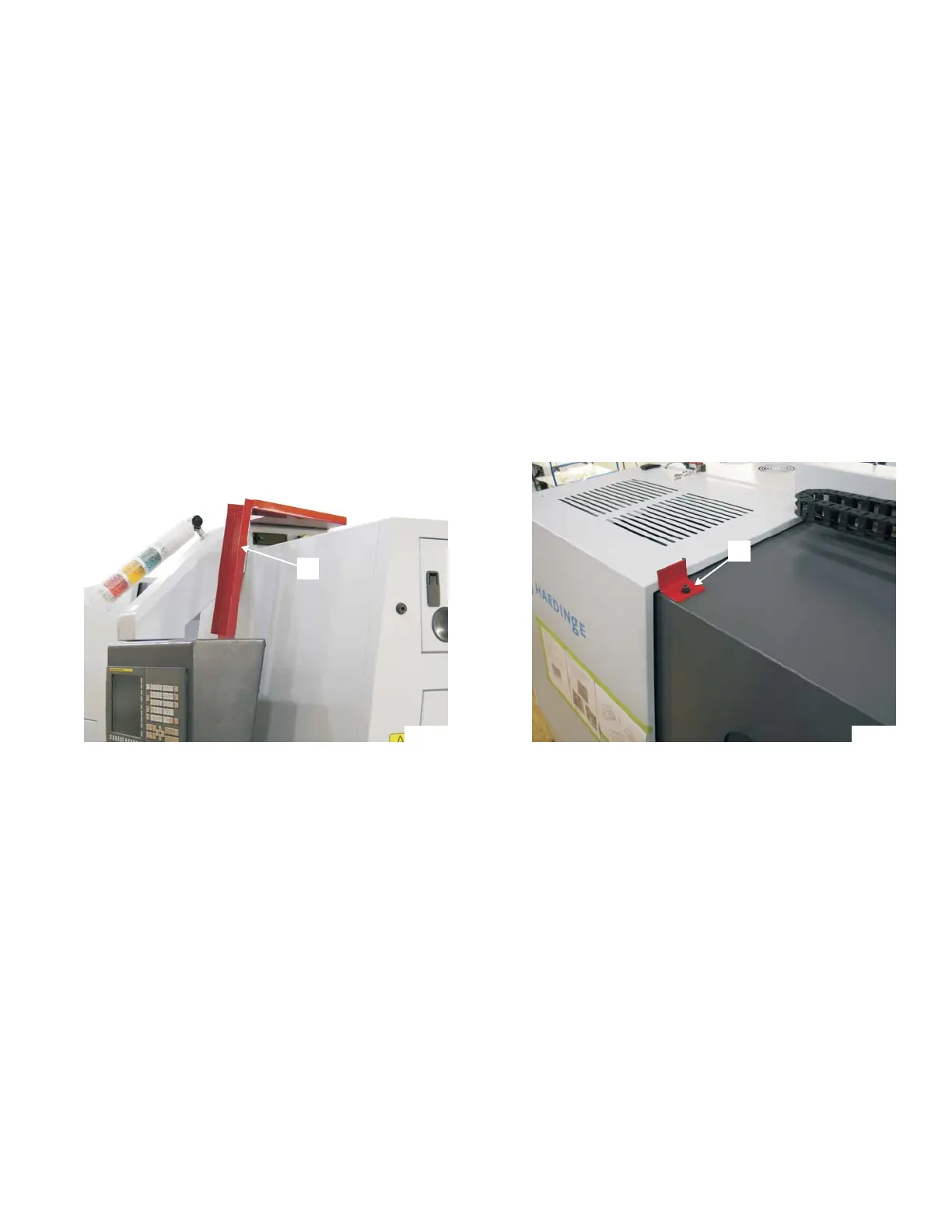

Figure 1.6 - Control Pendant
Shipping Bracket
A
TP7955A
Figure 1.7 - Guard Door Shipping Bracket
(T-51 and T-65 Lathes)
TP8319
B
