SPINDLE CHILLER INSTALLATION
The spindle chiller is a stand-alone unit that reduces and stabilizes the temperature of the spin
-
dle(s).
Refer to the chiller installation and maintenance manual for additional information. Keep the chiller
unit documentation with the machine maintenance manual (M-506).
The following items are to be connected to the chiller unit:
•
Inlet and Outlet hoses (labeled for connection)
•
Power wire conduit
•
Temperature probe wire conduit
INSTALLATION PROCEDURE
- NOTE -
Retain all caps and fittings removed
during installation. They will be re
-
quired if it becomes necessary to dis
-
connect the chiller unit.
1. Roll the chiller unit near the right rear corner of
the machine.
2. Remove access covers "A", Figure 1.31, and
"B", Figure 1.32.
3. Cut the cable ties shown in Figure 1.33 to
release the flexible conduit for the chiller unit.
1-20 M-507C

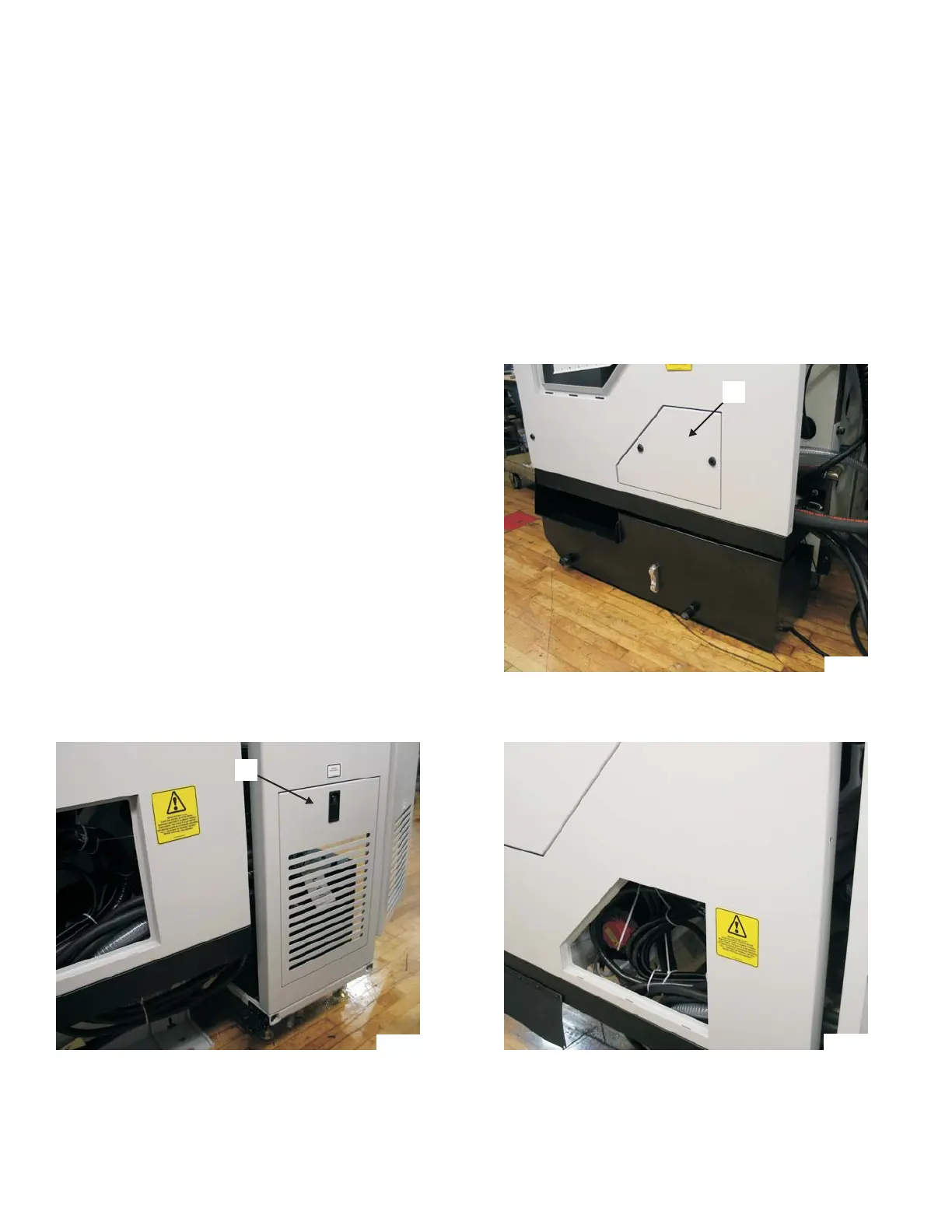

Figure 1.31 - Coolant Tank Access Cover
TP7868
A
Figure 1.32 - Slotted Cover
on Power Case platform
B
TP7883
Figure 1.33 - Cable Ties on the
Chiller Unit Conduits
TP7885
