SECURING THE MACHINE TO THE FLOOR
- CAUTION -
The hold-down brackets MUST be installed if the machine is to be used with a bar
feed system.
- NOTE -
The lag screws, flat washers, and expansion shields used to secure the hold-down
brackets to the floor are provided with the machine
1. Align the hold-brackets with the mounting holes on the machine base. Refer to Figure 1.4.
2. Mark two drilling locations on the floor for each bracket.
3. Drill 3/4 inch [19 millimeter] diameter holes, 4 inches [102 millimeters] deep.
4. Remove any debris from the drilled holes.
1-6 M-507C

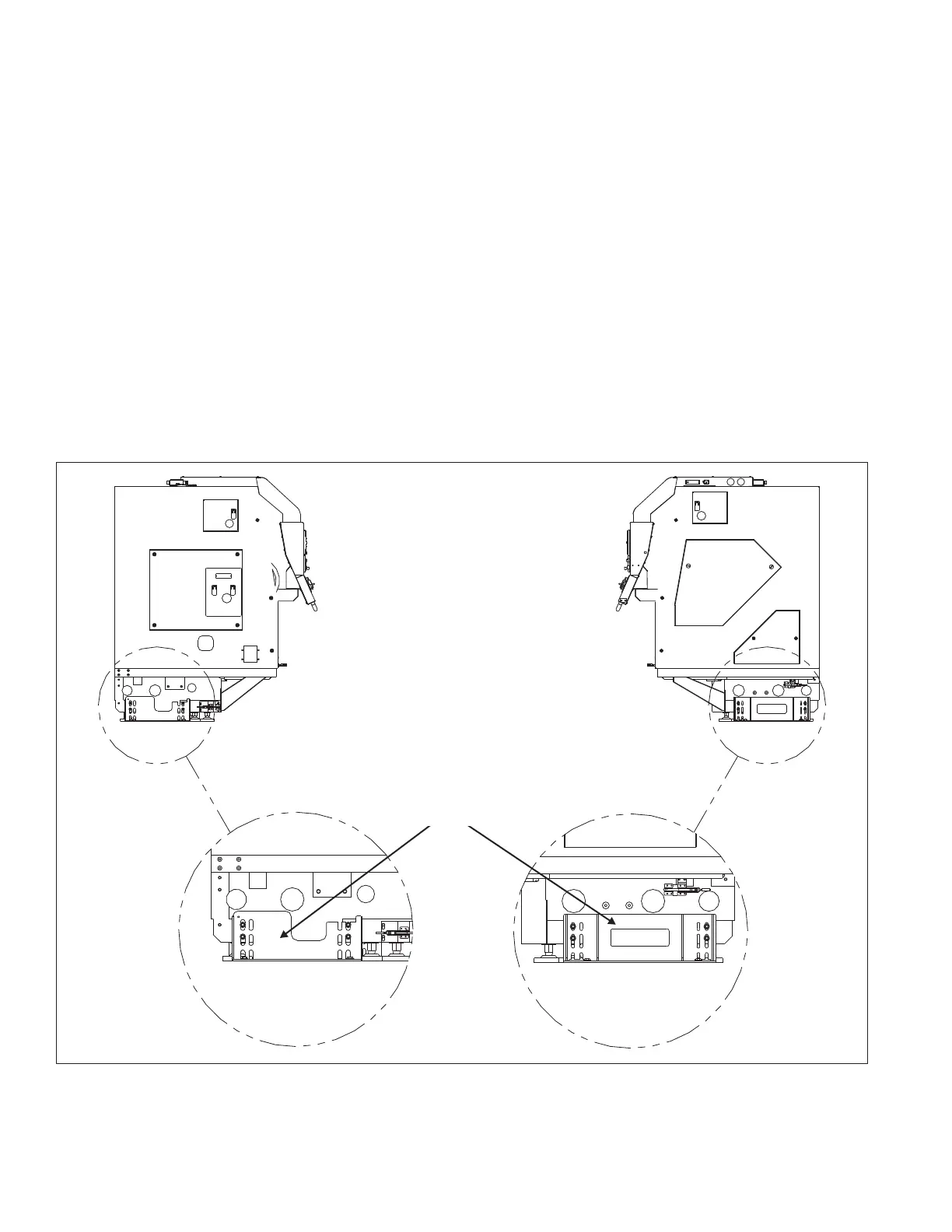

Figure 1.4 - Machine Hold-Down Brackets
(T-51 Machine Shown)
TI5849
Left End of Machine Right End of Machine
Hold-Down Brackets
