5. Drive an expansion shield down to the bottom of each hole. Refer to Figure 1.5.
6. Attach the brackets to the machine base using the M12 screws, washers, and lock washers
retained during the previous procedure.
7. Secure the brackets to the floor using the lag screws and flat washers provided.
M-507C 1-7

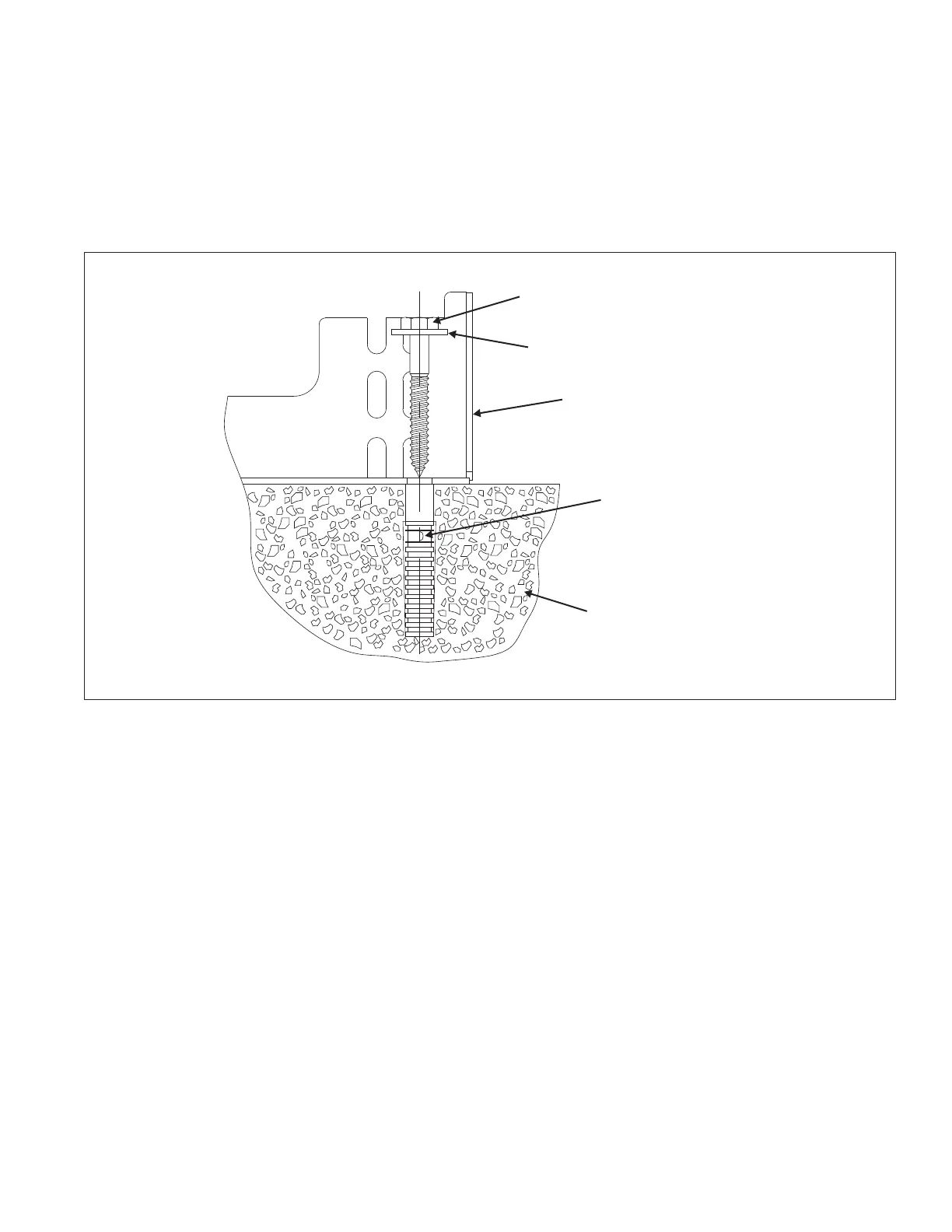

Figure 1.5 - Expansion Shield and Lag Screw
TI5851
Lag Screw
Flat Washer
Hold-Down Bracket
Expansion Shield
Concrete
