Hardinge T-42 - Installing Chiller Unit Fuses

INSTALLING THE CHILLER UNIT FUSES
- NOTE -
High performance machines are equipped with a spindle chiller.
Super-Precision
®
machines are equipped with a spindle chiller and a coolant
chiller.
1. Verify main circuit breaker handle "J", Figure 1.54, is in the OFF position.
2. Release six latches "I" on the power case doors.
3. Open the left power case door.
4. Lift door release "K", Figure 1.55, and open the right power case door.
M-507C 1-31

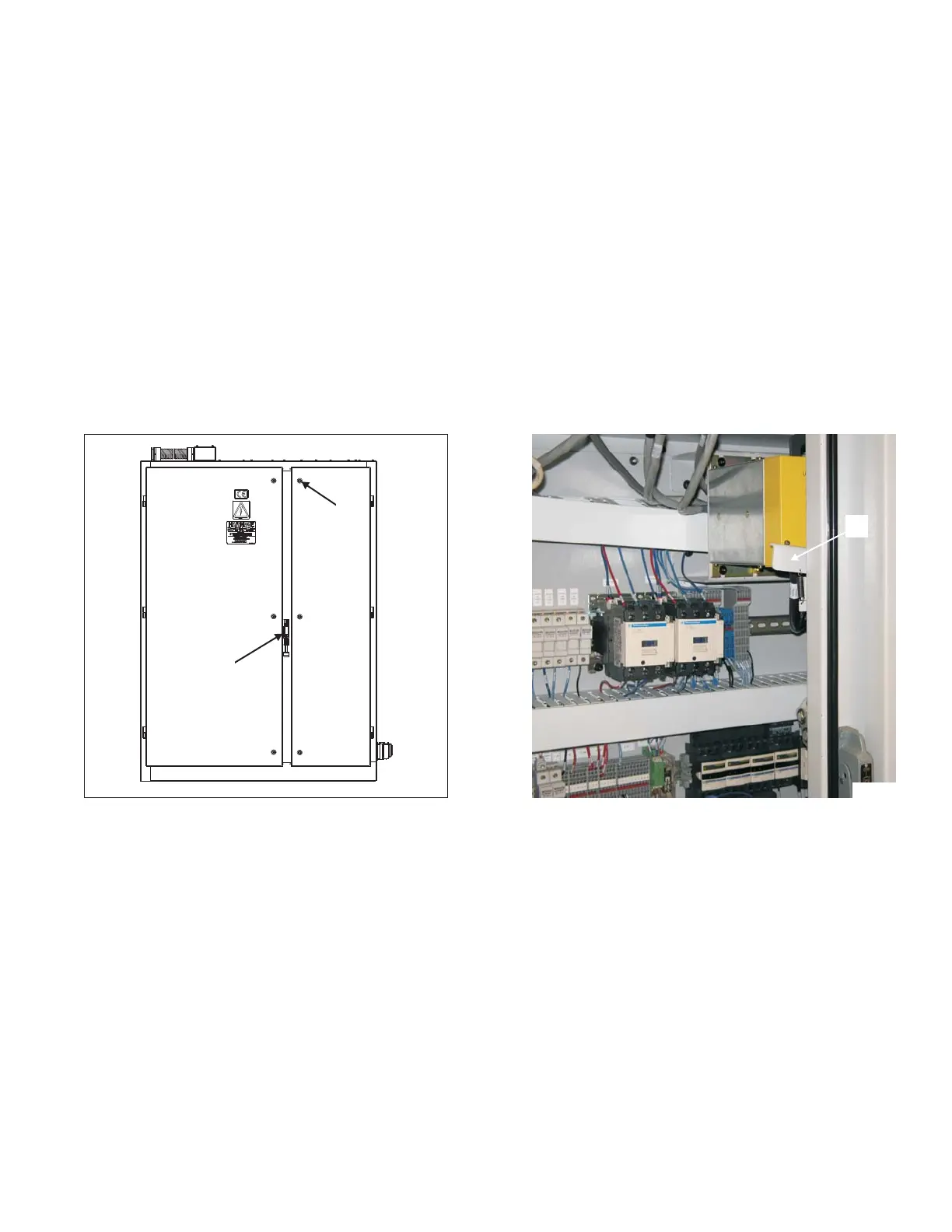

Figure 1.54 - Power Case Doors
TI5695
J
I
Figure 1.55 - Power Case Door Release
TP7939
K
