- CAUTION -
Exercise care to install each set of fuses in the correct fuse block.
- NOTE -
The following fuses are in packages located in the bottom of the power case:
•
three 15 Amp Class CC fuses for the spindle chiller fuse block (308FU)
•
three 10 Amp Class CC fuses for the coolant chiller fuse block (500FU)
5. Open fuse block "L" (308FU), Figure 1.56.
6. Install the three 15 Amp fuses and close the fuse block.
7. Open fuse block "M" (500FU), Figure 1.57.
8. Install the three 10 Amp fuses and close the fuse block.
9. Close and latch the power case doors.
1-32 M-507C

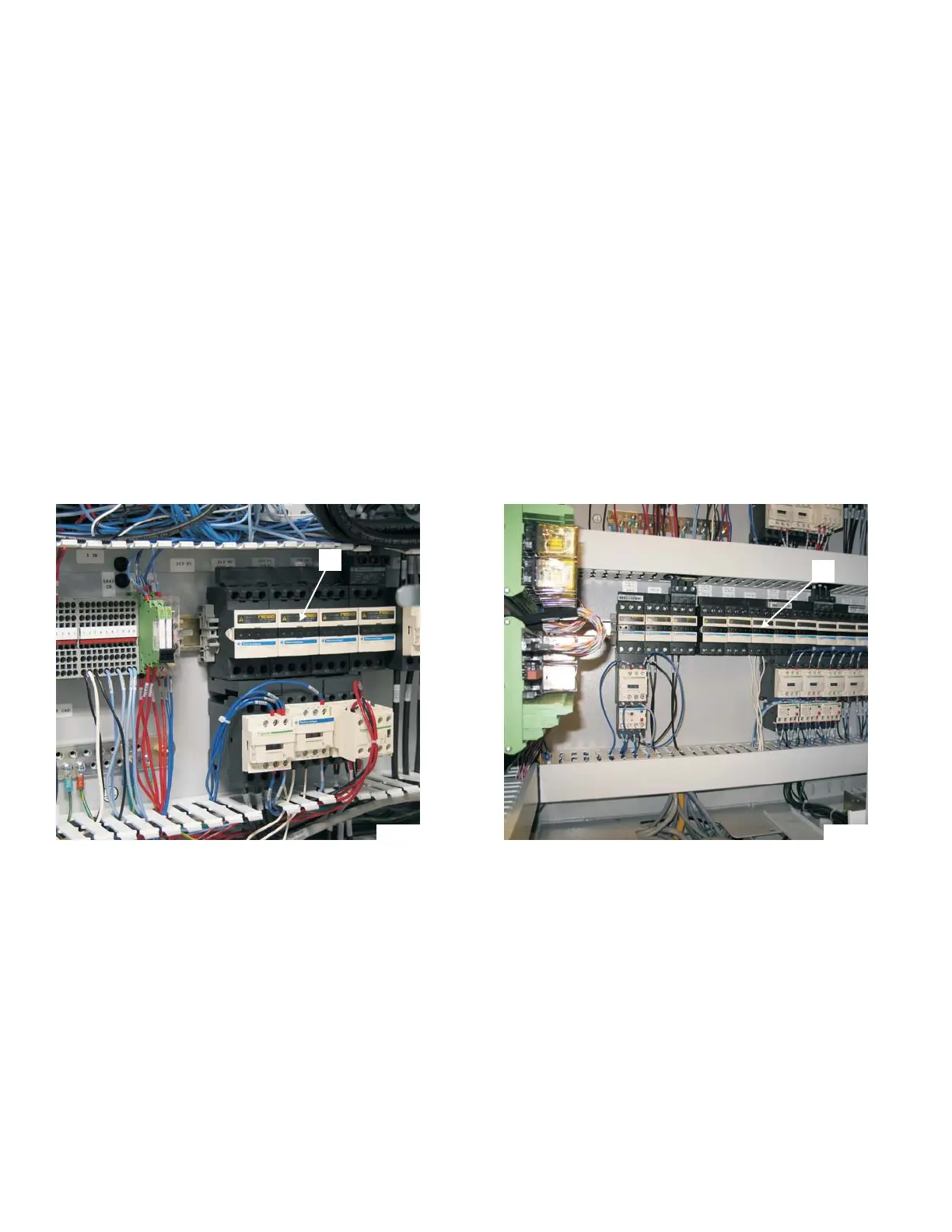

Figure 1.56 - Spindle Chiller Fuse Block
(308FU)
L
TP7888A
Figure 1.57 - Coolant Chiller Fuse Block
(500FU)
M
TP7977B
