5. Remove the retaining screws from the three shipping tubes, shown in Figure 1.17.
- NOTE -
The shipping tubes are equipped with M8 threaded holes. If necessary, a threaded
rod can be used to remove the shipping tubes.
6. Remove the shipping tubes to disconnect the power case platform from the machine. Refer to
Figure 1.17.
7. Install the shipping tubes under the power case platform as shown in Figure 1.18.
8. Secure the shipping tubes with the retaining screws removed in step 5.
9. Install left end cover "I", Figure 1.16.
1-14 M-507C

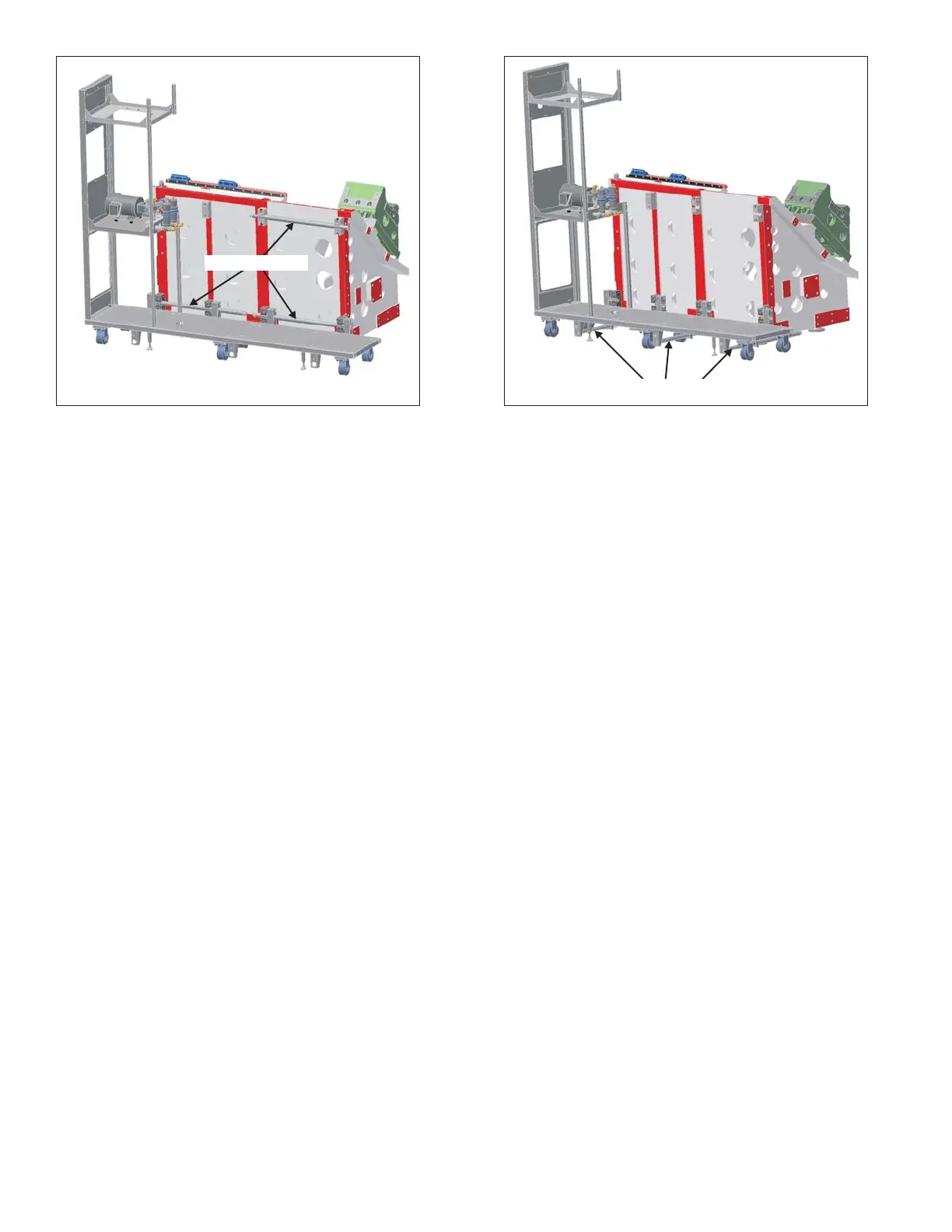

Figure 1.17 - Shipping Tubes
Attached to Machine Pedestal
(Components Removed for Clarity)
TP7940
Shipping Tubes
Figure 1.18 - Shipping Tubes
Under Power Case Platform
TP7941
Shipping Tubes
