3. Replace the cap screw on the door lock.
4. Remove access cover “M”, Figure 1.22.
5. At the right end of the machine, attach a hoist with lifting strap to the eyebolt on lifting bracket
“N”, Figure 1.23.
6. Apply tension to the lifting strap to support the pendant and wireway when the fasteners are
removed.
7. Remove the four flange nuts from lower pendant shipping bracket “O”, Figure 1.24.
8. Remove wireway top cover “P”, Figure 1.25.
1-16 M-507C

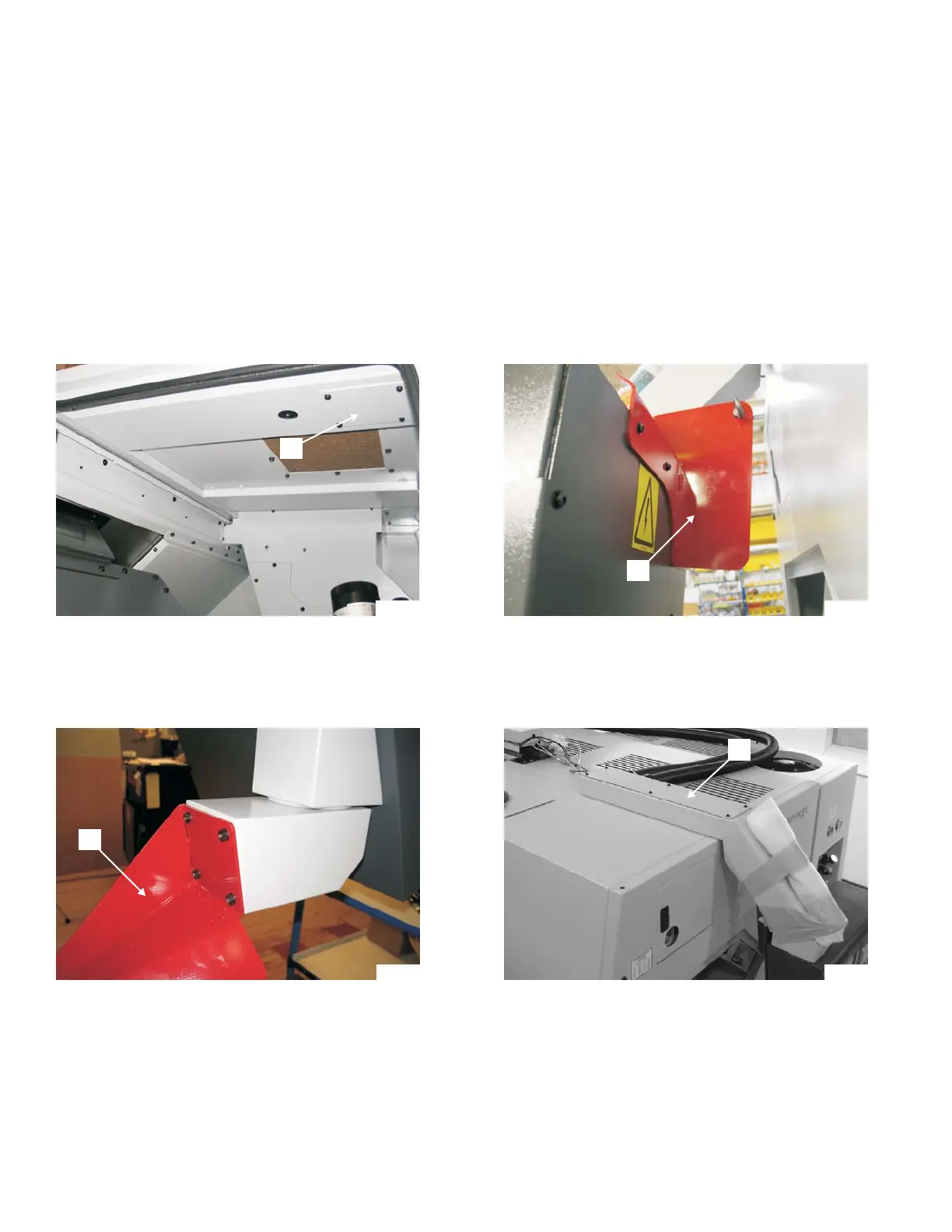

Figure 1.22 - Access Cover
TP8376
M
Figure 1.23 - Pendant Lifting Bracket
TP8346
N
Figure 1.24 - Lower Pendant
Shipping Bracket
TP8347
O
Figure 1.25 - Pendant Wireway
TP8377
P
