- NOTE -
Only use a manually operated grease gun.
16. Attach the grease gun nozzle to the grease fitting; slowly and evenly pump in the specified
amount of grease. Repeat the process for each grease fitting on all grease manifolds.
17. Wipe the fittings clean of excess grease.
18. Close and latch the rear access doors.
- CAUTION -
Do not overtighten the screws for cover "H" , Figure 2.6. Cover distortion and
leakage could result.
19. Install cover "H" , Figure 2.6, as follows.
A) Install and tighten the four screws next to
the bend in the cover.
B) Install and tighten the remaining six screws.
20. Power up the machine.
21. Press the Reset and Feed Hold push buttons
simultaneously to clear the lubrication alarm.
22. Jog the axes at 50% of the maximum rapid
traverse for a full 30 minutes.
M-507C 2-7

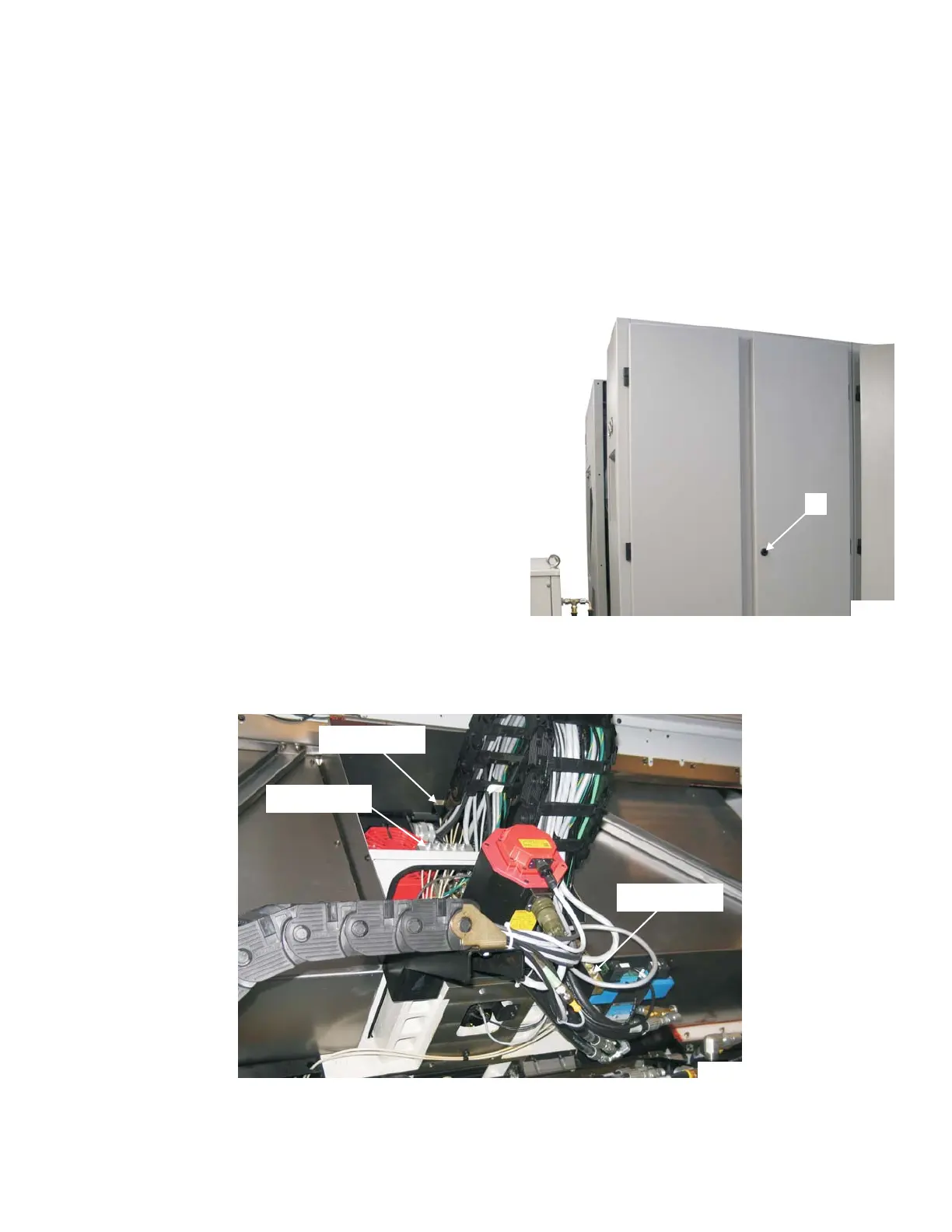

Figure 2.8 - Rear Access Doors
J
TP7863
Figure 2.9 - X, Y, and Z Axis Grease Manifolds
YAxis
Grease Manifold
TP7936
XAxis
Grease Manifold
ZAxis
Grease Manifold
To Next Page
