3 ODROID C2 USER MANUAL

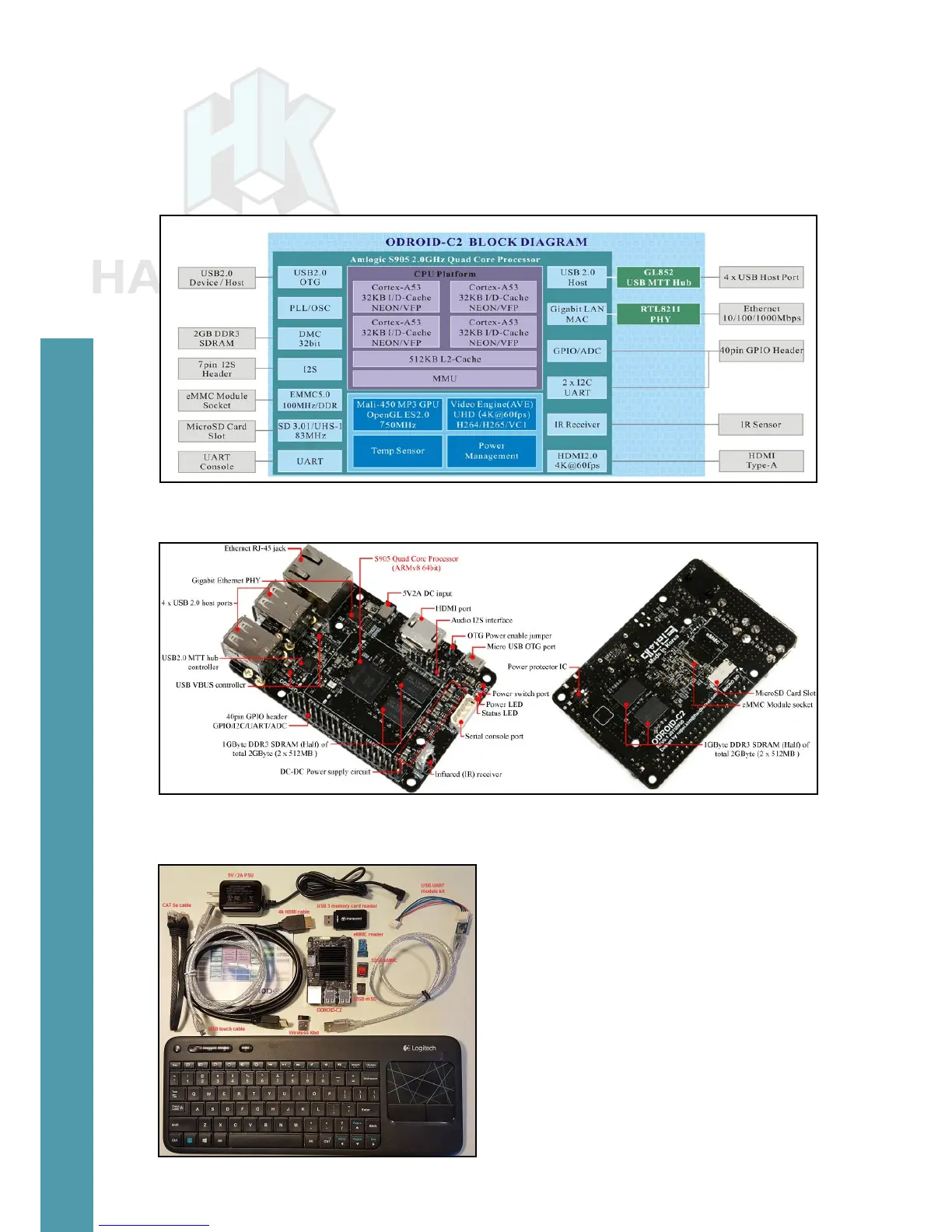

Block Diagram
The following diagram illustrates conceptually how the compo-
nents of the ODROID-C2 t together:
C2 Block Diagram and Annoted Board Image
Attaching Peripherals
The ODROID-C2 supports the ser-
vices of numerous peripherals. The
image to the left depicts the follow-
ing peripherals: Power Supply Unit
(PSU) with cable, USB / UART debug
cable, USB 3 memory card reader,
eMMC reader, eMMC card, microSD
card, 4k HDMI 2.0 cable, USB / wire-
less keyboard / mouse dongle, USB
touch cable, and Ethernet cable.
ODROID-C2
and Useful Peripherals
Chapter 1
